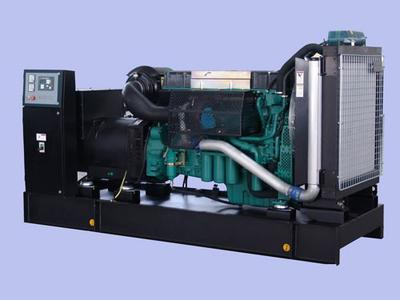

Volvo Diesel Generator Set 104kw

Volvo 104KW diesel generator set of configuration and technical parameters
Configuration: Volvo Powertrain with high performance brushless maintenance-free "Baifa" Motor
Conditions of use:
Not more than 2500 meters above sea level, the power is not reduced.
Ambient temperature: -25 ~ + 50 ºC
Indoor use ventilated conditions
Non-corrosive gases and non-conductive dust place
A Volvo BF-V104 diesel generator set of basic configurations:
1. Water-cooled Volvo diesel
2.24V DC starter motor and alternator
3. Electronic governor
4. Single-bearing generators, level H
5. Standard voltage 400 / 230V, 50Hz
6. Exciter / voltage adjustment torque Match
7. The fuel filter and oil filter, oil-water separator
8. The oil drain valve
9. Often contained air filter
10. Annex provides a muffler (9 db)
11. Random starting battery installation
12. The digital control system as standard automation
Digital control engine speed
Digital voltage regulator
AC output analog and digital instrument display
Battery Monitoring System
Smart Start control system
Advanced service capabilities
Network communication
13. The connection between the use of damping chassis and engines and generators
14. The operation and maintenance manual
15. Standard configuration label
Second, the engine specifications:
1. Volvo TAD532GE Engine
2. Inline direct injection
3. Number of cylinders: 4-cylinder
4. Engine type: Water-cooled, four-stroke
5. Aspiration: Turbocharged, intercooled
6. Features: Two valves per cylinder, cast-cylinder crankshaft, cast iron body
7. Start System: 24VCD negative ground, charging generator rated current of 35 AMPS, at ambient temperature zero starting current 450 AMPS
8. Fuel system: 24VCD stop the oil solenoid valve: Fuel pump with spin filter, fuel pump with mechanical governor with double fuel lines and fittings, standard oil-water separator
9. Filter: Dry air with resistance indicator, full flow oil filter Spin
10. Cooling system: Standard 50 degrees tank, oil cooler, drain valve
Third, the generator specifications
1. Rated Power: 104KW
2. Rated current: 180A
3. Rated frequency: 50Hz
4. Rated voltage: 400/230
5. Rated speed: 1500 / min
6. Power Factor: 0.8
7. Transmission: High elastic soft drive
8. Excitation mode: Brushless excitation
9. Anti-falling objects design
10. H grade insulation, protection class IP22
11. IC 01 Cooling System
12. AC exciter and rotating rectifier unit
13. The stator windings with epoxy coating
14. The exciter rotor windings insulated oil and anti-acid treatment
15. Rotor balancing test carried out in accordance with BS5625, maintenance-free bearings result meets 2.5
16. The exciter winding through moisture, oil, anti-acid triple treatment
17. Output windings with 2/3 pitch winding, effectively improve the harmonic and parallel characteristics
Fourth, set technical parameters
1. Unit Model: BF-V104
2. Rated power: 104KW
3. Rated current: 180A
4. Rated frequency: 50Hz
5. Rated voltage: 400/230
6. Rated speed: 1500 / min
7. Start: Electric start
8. Connection mode: Three-phase four-wire
9. Engine Model: TAD532GE
10. Number of cylinders: 4-cylinder
11. Engine Type: Inline
12. Governor Type: Electronic Speed
13. The intake and cooling: Booster
14. Bore: 108 × 130
15. Displacement: 7.15L
16. Start the lowest temperature: No auxiliary starting device / -4 ºC
17. Net engine output - common: 104KW
18. Net engine output - Standby: 115KW
19. Fuel: Common Hourly 180g / kw.
20. Oil Capacity: 29L
21. Coolant Capacity: 90L
22. The exhaust gas temperature 460 ºC
23. The exhaust gas flow rate: 493 / min
24. Minimum inlet area: 2.35
25. Minimum ventilation area: 2.15
26. Dimensions (C * W * H): 2520 × 750 × 1400
27. Weight: 1450
Fifth, random accessories
1. Diesel random accessories
2. Battery 2
3. Muffler 1 set
4. Diesel Manual 1 set
5. Manual 1 generator set
Automated device (optional)
1, 704C automatic controller 1 set
2. The ATS cabinet control template is LCD touch-control, and the implementation of 5-15 seconds adjustable switching function.
2, Zhongyinghezi think Meike automatic switch 1
3, 704C diesel generator set controller is mainly referring to Britain's deep-sea DSE5210 design, using the popular DOT matrix LCD diesel generator sets of three-phase voltage, current: The unit frequency, coolant temperature, oil pressure, engine speed, battery voltage, total running time and cause of the malfunction, the real-time monitoring of the status of diesel engines, diesel generator sets to achieve automatic start and stop, offers a variety of automatic protection unit. Increased self-setting automatic start, run time, users can easily detect the timing of regular diesel generators. It provides automatic protection fault-finding, the use of different users, providing two password lock function, reduce the user's manual operation fault.
