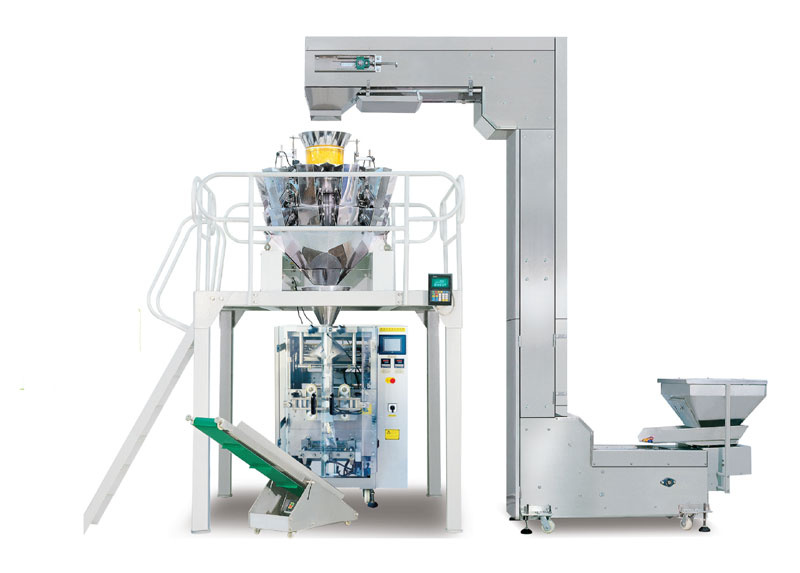

Vertical Packing Machine CYL-420D
Features:
1. High precision, high efficiency.
2. The machines complete the whole procedure of feeding, measuring, bag making, date printing, air charging (exhausting), outputting.
Configuration:
1. CYL-420 host machine
2.10 heads electronic function scale
3. Z type bucket elevator
4. Products conveyor
5. Supporting platform
6. Vibration feeder
Applications:
It is suitable for the high accuracy and easy fragile material, such as puffy good, crispy rice, jelly candy, pistachio, dumpling, chocolate, medicine, pet food, small hardware etc.
CYL-420 Main engine
Features:
1. New design with perfect fashion, more reasonable structure, more advanced technology.
2. Imported PLC control system, colorful touch screen, easy operation, intuitionist and efficient.
3. Imported servo film drawing system and color sensors, accurate positioning, superexcellent capability for complete machine, perfect packaging.
4. With auto warning protection function to minimize loss
5. Suitable for various kinds of bag, it could provide the pillow bag, angle fold bag, hang hole bag, link bag, etc.
Option:
Two synchronous belt device, angle fold device, automatic rectifying device, hole-punching device, link bag device.
|
Model |
CYL-420D |
|
Film width |
Max.420mm |
|
Bag length |
30~300mm |
|
Bag width |
60~200mm |
|
Film roll diameter |
Max.320mm |
|
Packaging speed |
5~60bag/min |
|
Measuring range |
150~1500ml |
|
Film thickness |
0.04~0.08mm |
|
Power |
220V 50/60Hz 2.2Kw |
|
Size |
L1217*W1015*H1343 |
|
Net weight |
650kg |
|
|
|
|
|
|
Electric detailed list
|
|
No. |
Product Name |
Brand |
|
1 |
PLC |
Panasonic/Japan |
|
2 |
INVERTER |
Panasonic/Japan |
|
3 |
Sevor motor |
Panasonic/Japan |
|
4 |
Touch screen |
Wei Lun/Taiwan |
|
5 |
Intermediate Relay |
OMRON |
|
6 |
Switching power |
Meanwell/Taiwan |
|
7 |
solid state relay |
Schneider |
|
8 |
Temperature controller |
YeaTay/Taiwan |
|
9 |
draw film cylinder |
Airtac/Taiwan |
|
10 |
cutter cylinder |
Airtac/Taiwan |
|
11 |
electromagnetic valve |
Schneider |
|
12 |
Photoelectricity colour code |
Autonics |
