Vertical Francis / Water Turbine / Hydro Turbine / Power Plant
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P |

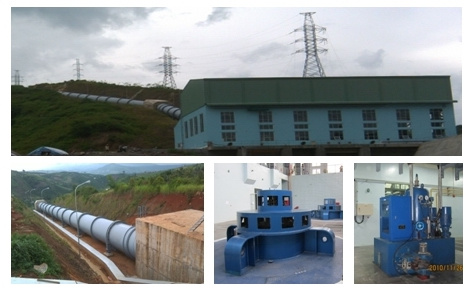

The type is Vertical Francis
Capacity: 2 x 17MW
Type of turbine: Vertical Francis
Rated water Head: 86.2M
Design Discharge: 22.5m3/S
Rotary speed: 500r/min
Outgoing line volatge: 11KV
Bitmap
FUCHUN INDUSTRY DEVELOPMENT CO.,LTD SHENZHEN |
|
Address:1121-1125 Noble plaza,269 Qianjin road.Baoan Shenzhen china
Tel: +86-755-26575526 Fax: +86-755-26575026 |
Reference List of Some Export Projects |
No. |
Country and Power Station Exported to |
Technical Parameters |
Type |
Qty |
Date of contract |
1 |
Latin America |
Rated head:305m
Rated flow:0.385m³/s
Frequency:60Hz
Outgoing line voltage:480V |
CJA475-W-80/2×6.5
SFW1000-8/1180 |
1 |
2013.06 |
2 |
South Asia |
Type:HL855a
Runner diameter:1750mm |
27Mw spare runners |
1 |
2013.06 |
3 |
Europe |
Rated head:73.8m
Rated flow:0.1325m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA237-W-55/1×7 |
1 |
2013.03 |
4 |
Europe |
Rated head:203m
Rated flow:0.312m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA237-W-80/1×8.5
SFW500-8/990 |
1 |
2013.05 |
5 |
South Asia |
Rated head:88m
Rated flow:1.41m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HLA550-WJ-62
SFW1000-6/1180 |
1 |
2013.05 |
6 |
West Africa |
Rated head:210m
Rated flow:0.423m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA237-W-80/1×9.5
SFW700-8/1180 |
1 |
2013.05 |
7 |
Latin America |
Rated head:925m
Rated flow:0.26m³/s
Frequency:60Hz
Outgoing line voltage:4.16KV |
CJC601-W-100/1×5
SFW1980-6/1430 |
2 |
2012.12 |
8 |
Southeast Asia |
Rated head:4m
Rated flow:10m³/s
Frequency:60Hz
Outgoing line voltage:440V |
ZD-LH-160
SF320-36/2150 |
1 |
2012.12 |
9 |
Latin America |
Rated head:128m
Rated flow:0.6+0.3m³/s
Frequency:60Hz
Outgoing line voltage:440V |
CJA475-W-80/2×9
SFW614-12/1180
CJA475-W-80/2×6.5
SFW302-12/990 |
2 |
2012.11 |
10 |
Europe |
Rated head:48.51m
Rated flow:0.351m³/s
Frequency:50Hz
Outgoing line voltage:400V |
XJA-W-55B/1x8.5 |
1 |
2012.11 |
11 |
Europe |
Rated head:47.48m
Rated flow:0.38m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HL110-WJ-42 |
1 |
2012.11 |
12 |
Europe |
Rated head:25.44m
Rated flow:0.332m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HLD54-WJ-50 |
1 |
2012.11 |
13 |
Europe |
Rated head:35.19m
Rated flow:0.3m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HLD54-WJ-50 |
1 |
2012.11 |
14 |
Europe |
Rated head:37.82m
Rated flow:0.291m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HLD54-WJ-50 |
1 |
2012.11 |
15 |
Latin America |
Rated head:60m
Rated flow:1.24m³/s
Frequency:60Hz
Outgoing line voltage:440V |
HLA575c-WJ-56
SFW600-8/990 |
2 |
2012.8 |
16 |
Europe |
Rated head:58.1m
Rated flow:0.169m³/s
Frequency:50Hz
Outgoing line voltage:400V |
XJA-W-40/1×9
SFW100-8/590 |
1 |
2012.04 |
17 |
Latin America |
Rated head:38m
Rated flow:1.64m³/s
Frequency:60Hz
Outgoing line voltage:440V |
HL220-WJ-50
SFW470-8/990 |
1 |
2012.04 |
18 |
Europe |
Rated head:43m
Rated flow:0.59m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HL110-WJ-42
HLD54-WJ-40 |
2 |
2012.03 |
19 |
South Asia |
Type:HL855a
Runner diameter:1750mm |
27Mw spare runners |
3 |
2011.11 |
20 |
Europe |
Rated head:134m
Rated flow:0.25m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA475-W-80/2×6.5
SFW250-10/850 |
2 |
2011.06 |
21 |
Europe |
Rated head:228m
Rated flow:0.4m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA475-W-85/1×9.5
SFW715-8/1180 |
3 |
2011.05 |
22 |
Europe |
Rated head:61.8m
Rated flow:0.221m³/s
Frequency:50Hz
Outgoing line voltage:400V |
XJA-W-42/1×10
SFW100-8/590 |
1 |
2011.03 |
23 |
Europe |
Rated head:379.7m
Rated flow:0.685m³/s
Frequency:50Hz
Outgoing line voltage:10.5KV |
CJA475-W-105/2×7.5
SFW2150-8/1730 |
1 |
2010.12 |
24 |
Europe |
Rated head:461.6m
Rated flow:0.786m³/s
Frequency:50Hz
Outgoing line voltage:10.5KV |
CJA475-W-115/2×8
SFW3000-8/1730 |
1 |
2010.12 |
25 |
Europe |
Rated head:29m
Rated flow:3.2m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HLD41-WJ-42
HLD74-WJ-60 |
2 |
2010.12 |
26 |
Middle Asia |
Rated head:36m
Rated flow:1.67m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HL295-LJZ-50
SF500--6/850 |
5 |
2010.12 |
27 |
South Asia |
Rated head:206m
Rated flow:0.89m³/s
Frequency:50Hz
Outgoing line voltage:6.6kV |
CJA475-W-100/2×10
SFW1500-10/1430 |
2 |
2010.08 |
28 |
Southeast Asia |
Rated head:385m
Rated flow:11.24m³/s
Frequency:50Hz
Outgoing line voltage:13.8kV |
(37.5Mw)HL69-LJ-205
SF37500-10/3600 |
2 |
2010.02 |
29 |
East Asia |
Rated head:206.8m
Rated flow:0.358m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA237-W-80/1×9
SFW570-8/990 |
1 |
2010.04 |
30 |
South Asia |
Rated head:47.5m
Rated flow:2.62m³/s
Frequency:50Hz
Outgoing line voltage:6.6kV |
HLA696-WJ-68
SFW1000-8/1180 |
3 |
2010.03 |
31 |
Europe |
Rated head:35m
Rated flow:4.25m³/s
Frequency:50Hz |
HLA696-WJ-82
SFW800-12/1430
HLJF2504-WJ-56
SFW400-8/990 |
3 |
2010.01 |
32 |
Europe |
Rated head:265m
Rated flow:0.734m³/s
Frequency:50Hz
Outgoing line voltage:6.3kV |
CJA475-W-110/2×8.5
SFW1600-10/1730 |
2 |
2009.07 |
33 |
Europe |
Rated head:289m
Rated flow:1.775m³/s
Nozzle No.:2
Bucket No.: 20
Runner Outer Diameter: 1600mm
RUNNER DIAMETER: 1300mm |
4000KW Pelton runner and shaft spares |
3 |
2009.06 |
34 |
Southeast Asia |
Rated head:86.2m
Rated flow:22.5m³/s
Frequency:50Hz
Outgoing line voltage:10.5kV |
(17Mw) HLA883-LJ-155
SF17000-12/3250 |
2 |
2008.01 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Business Type: |
Manufacturer |
Pitch: |
33.5mm |
Pin: |
Stainless Steel |
Brand Name: |
Ll |
Certification: |
ISO9001:2008 |
Weight: |
1.54kg/M |
Place Of Origin: |
Shanghai, China |
Width: |
82.6mm |
Dedicated Chain Type: |
Shaped Chain |
Structure (For Chain): |
Plate Chain |
Founded in 1978, Fuchun Industry Development Co., Ltd was moved to Shenzhen in 1998. In 2005, in the process of state-owned enterprise reform, our company has conglomeration and merger with GANZHOU COMPLETE SETS OF POWER GENERATING EQUIPMENTS MANUFACTURE Co., Ltd, dealing with all export projects, especially Complete Sets of Power Generating Equipments including design, manufacture, and installation and operation supervision, training.
Our factory has over 60 years experience in hydro power equipment manufacturing activities. We continue to hold the Fuchun's philosophy-adding product value, keeping good quality and providing good service.
Nowadays the company's business not only engages in manufacturing of small power equipment, but also covers engineering, design, procurement and construction of small and medium size hydro power plants (10kw-50MW) and coal-fired (biomass) power plants (200kw-25MW). We either wholly own or jointly own with other partners to have invested several factories in the power equipment industry, such as Jiangxi Ganzhou etc. We also dealing with small wind power generator and solar power plants, power substations, supply of power related equipment and machines of boiler, fan, pump, environment equipment (smoke flux treatment, water treatment), coal excavation facilities, dust and slag handling equipment, thermal power generation turbines, driving turbines, hydro turbines, wind turbines, generators, transformers, power cables, weight scales, cranes, bull dozers, analysis facilities and so on. Our company is also willing to take the contract of small and medium power generation factory consulting business because we have strong technical force of engineers and technicians.
In 30 years of the company history, we designed and manufactured a large mount of hydro turbine generators, not only for domestic China but also export to more than 30 counties, such as Guatemala, Ecuador, Congo, Pakistan, USA, Canada, Cuba, Germany, Austria, Turkey, North Korea, Viet Nam, Burma, Nepal, Norway, Denmark, Belgium, Uruguay, Russia, Georgia, Bulgaria, Bhutan, France, UK, Italy, etc.
Our company sincerely welcomes all clients, partners, and friends from all over the world to contact us for business co-operation. We believe that our efforts will bring you and us a win-win situation.
