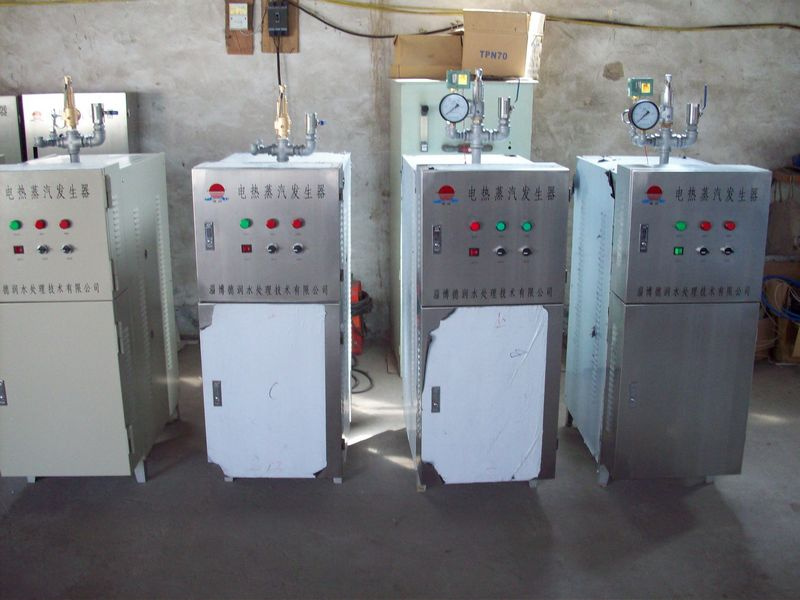

The LDR series Electrical Heating Steam Feeding Device is a steam-producing device. It is made up of container\ control group\water-feeding pump\electrical heating pipe groupware\liquid level controller\relief valve, and etc, and it can control its course automatically. This device turns the water in the container into high-pressure steam by the electrical heating pipe groupware.
Technical Data
Power: 380V 50Hz
Heating Power: 20kW --144 kW two standards
Steam Feeding: 30Kg_200Kg/H
Water Supply: According to the standard of water using in the boiler
Designing Pressure: 0.70MPa
Designing Temperature: 170 Celsius centigrade
Working Pressure: 0~0.70 MPa (adjustable)
Relief Valve Setting: Open Pressure≤ 0.73MPa
Cubage: 0.08m3 /0.18m3
Weight: 200Kg /350Kg
We are a factry especial for producting oil/gas boiler, which established in 1998.
Bidragon International is one of the leading manufacturers and exporters of various boilers and machineries in China.
Bidragon International mainly supplies biomass boiler which adopts the following types of solide fuels: Biomass pellet, straw, rice husk, bagasse, furfural residue, edible mushroom or edible fungus residue, wood block, wood strip, wood dust, sawdust, bamboo, bamboo waste, etc.; Also we can supply coal fired boiler; Oil or gas fired boiler; Electric boiler; Coal slurry boiler; Organic heat carrier boiler; Molten salt boilers. Our companies can produce pressure vessels, and 1-25 tons' various forms of boilers (including waste heat boilers) with the pressure less than 2.5 Mpa.
Wastage generated from factory is in multi-state of blocks, sheets, strip, dust, powder. According to the needs of customers', our company can design & provide a variety of feeding systems or a single mode for feeding.
Some customers lack of waste sources; Bidragon International can design coal and waste biomass mixed with fuel boiler to counteract customer's weaknesses. Nowadays, some customers would like to take waste wood or biomass waste materials as fuel, and they want to use coal in future. This is not a dream anymore; It can be realized by simple modification.
Bidragon International mastered bagasse (high moisture), rice husk (it contained much silicon in ash that is difficult to be burnt out), straw (much potassium in ash and easy to be coked) and other biomass fuels combustion characteristics. We are willing to develop a variety of boilers at low and middle pressure for customers specially, and for small power station which using biomass industrial boilers.
