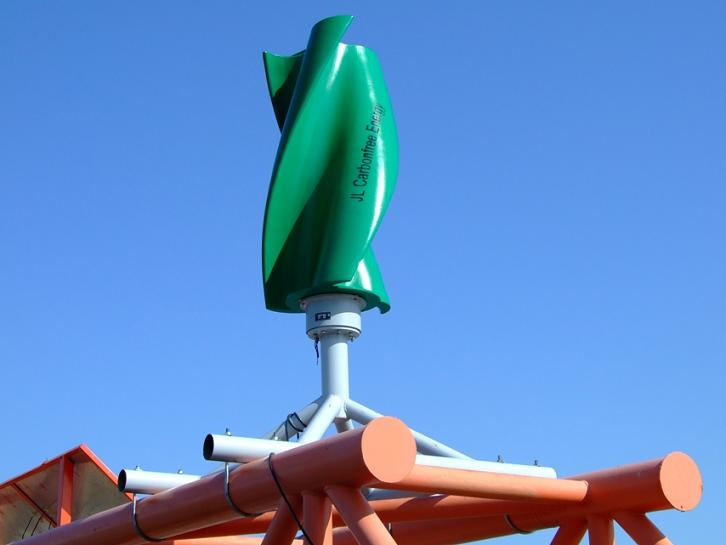

Vertical Axis Wind Turbines 500W FDCS-10A
1. Rotating Shaft: Vertical
2. Rated power: 500W/12V/24V/48V/96V/120V/220V
3. Materials of blade: Polyethylene Foams or Fiberglass
4. Generator type: Gearless permanent magnet
5. Mounting system: Free standing, roof mounting, wall mounting, others
6. Tower type: Free standing, guy cable, lattice, lattice guyed, turbular, turbular guyed
7. Application: Street light/Solar lamp
8. Clients: Canada, Russia, Israel, Colomia, America, Germany, Sweden, Poland, Australia, Austria, HongKong, etc
Model FDCS-10A
Rated Power 500W
Rated Wind Speed 31mph(12m/sec)
Start-up Wind Speed 3.4mph(1.5m/sec)
Cut-in Wind Speed 6.3mph(2.8m/sec)
Survival Wind Speed 78mph(35m/sec)
Rotor Diameter 3.28Ft(1m)
Blade Length 4.9Ft(1.5m)
Blade material PE
Blade quantity 3
Packing plyboard
N. W. 50KG
G. W. 75KG
Package Size (m) 1.8*1.1*1.1
Note:
1. Tower type and tower height can be changed as per your request.
2. Working voltage can be specially designed according to your request.
3. For the power curves and details, please feel free to contact me.
|
Model |
FDCS-10A |
|
Rated Power |
500W |
|
Rated Wind Speed |
31mph(12m/sec) |
|
Start-up Wind Speed |
3.4mph(1.5m/sec) |
|
Cut-in Wind Speed |
6.3mph(2.8m/sec) |
|
Survival Wind Speed |
78mph(35m/sec) |
|
Rotor Diameter |
3.28Ft(1m) |
|
Blade Length |
4.9Ft(1.5m) |
|
Blade material |
PE |
|
Blade quantity |
3 |
|
Packing |
plyboard |
|
N.W. |
50KG |
|
G.W. |
75KG |
|
Package Size (m) |
1.8*1.1*1.1 |
JL Carbon Free Energy Co., Ltd., is the factory of vertical axis wind turbines. Our products are updated from 250-watt, 300-watt, 500-watt, 1000-watt, 1500-watt, 2000-watt, 3000-watt and 10000-watt plasma products. If you have any special requests, we will design only for you. We supply the free OEM service.
Our innovative design and R&D department is in charge of Mr. Wang and his team, from aerodynamics, permanent magnet generators, materials, to formation, and made significant development in incorporating.
We had attend the "Chicago Windpower Conference & Exhibition 2010" (booth number is 1011)
And "Chicago Windpower Conference & Exhibition 2009" (booth number is 3017).
Welcome visit our factory and fair booth!
