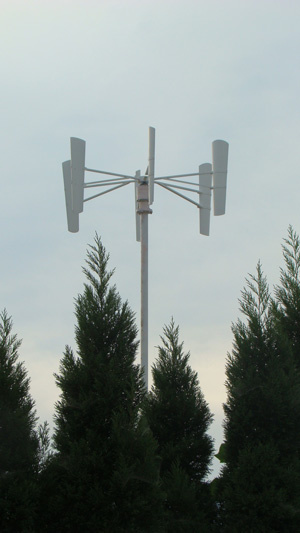

We offer vertical wind turbine from 0.3-360KW
300W, 500W, 1000W, 2000W, 3000W, 5000W, 10KW, 12KW, 50KW, 100KW, 120KW, 240KW, 360KW
| 300W C type VAWT technique parameter |
| power | 300W |
| the diameter of wind wheel | 1.6m |
| rated rotate speed | 200(r/min) |
| rated wind speed | 8m/s |
| start up wind speed | 2m/s |
| working wind speed | 3-25(m/s) |
| security wind speed | 40m/s |
| rated power | 300W |
| the max power | 350W |
| output voltage | 12V |
| the height of tower | 6m |
| the top part weight | 80kg |
| guy cable tower type | 75 steel pipe |
| output control system | charger control,inverter |
| Necessary battery | 12V150ah, 1pc |
| Wood carton: | 1220*980*460mm |
| Tower package: | 3050*360*180mm |
| Gross weight/Net weight: | 255/222kgs |
| 20'/ctn | :42pcs |
Our product advantage:
1.Wind turbine blades: We utilize high strength glass fibre reinforced plastic and epoxy resin to make blades. Low Noise. No need to adjust and good quality of balance. No shaking. High strength, fatigue resistance.
This kind of new aerofoil is elaborately designed by aerodynamic and hydromechanical engineers.Its start-up wind speed or cut-in wind speed is very low, and the wind energy coefficient is very high.
2.Generator:It is made up of the superior high strength permanent magnetic material. We use high grade NdFeB permanent magnet for generator. The magnetic sheet is Neodymium iron boron not ferrite. Neodymium iron with long life time than ferrite and not easy be demagnetized. The stator is made of 470 silicon steel sheet not iron sheet. The generating electricity coefficient is high.
3.The low starting torqure is designed by our mechanical engineer but also assure the high generating efficiency by improving the inner structure.With scientific design and practiced experience,the machine has stable and high efficiency.
4. The wire package in the generator is made of copper wire which can resist 160 centigrade heat. High insulated performance, high magnetic permeability, High generating efficiency.
Willgain Power Industry Co., Limited is specialized in manufacturing and supplying wind turbine and generatering system since 2008. We mainly supply horizontal/vertical axis wind turbine from 300W-500kw, horizontal/vertical permanent magnet generator from 300W-1000kw with various speed based on customer's requirements and Francis/Kaplan type hydro turbine system below and over 50kw.
Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
