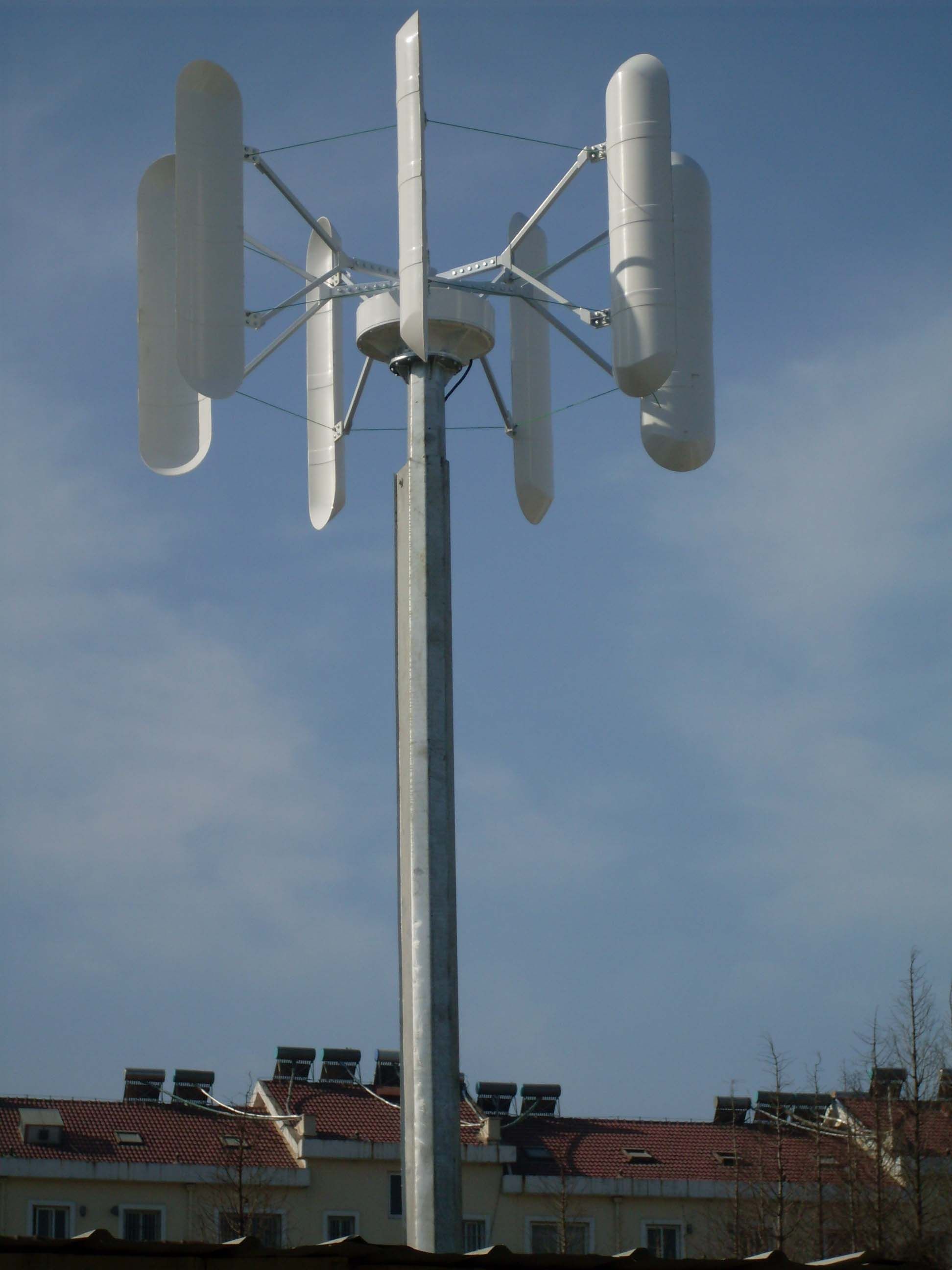

Vertical Axis Wind Turbine Generator/Alternator

Vertical Axis Wind Turbine Generator/Alternator
Price: US $ 800-50000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
We supplier vertical wind turbine from 0.3--15KW, if you have any interest, contact us for details

Xinda Green Energy Co., Limited is specialized in handling the business of wind turbine generator, permanent magnet generator(0.05-3000kw), small hydro turbine system, wind solar hybrid system, high efficiency permanent magnet generator, low speed vertical wind turbine generator, street lamp and so on Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development.
ModelXD-300WXD-500WXD-1KWXD-2KWXD-3KWXD-5KWXD-10KW
diameter of wind wheel 1.6m1.8m2.2m2.4m2.7m2.7m3.2m
material of bladesFiberglass-Reinforced Plastics
blades number 5555557
blades length1120mm1650mm1830mm2160mm2600mm3000mm3600mm
blades width360mm410mm410mm450mm500mm500mm600mm
RPM80(r/min)80(r/min)50(r/min)50(r/min)50(r/min)50(r/min)50(r/min)
rated wind speed8-9m/s8-9 m/s10 -11m/s10 -11m/s11 -12m/s11-12 m/s12-13m/s
start up wind speed2m/s2m/s2.5m/s2.5m/s2.5m/s2.5m/s3m/s
working wind speed3-25(m/s)3-25(m/s)3-25(m/s)3-25(m/s)3-30(m/s)3-30(m/s)4-30(m/s)
security wind speed40m/s40m/s40m/s40(m/s)40(m/s)40(m/s)40(m/s)
generator style3-phase AC PM
protection grade of generatorIP54
material of generator casecast ironcast iron / aluminiumcast iron
rated power300W500W1KW2KW3KW5KW10KW
the max power350W550W1.5KW2.5KW3.5KW6KW11KW
rated voltage (DC)12V/24V24V/48V24V/48V48V/96V/120V220V220V220V/380V
the height of tower6m6m8m8m8m9m12m
guy cable tower type(mm)89*696*6114*6114*6203*6203*6245*6
controller and inverteradvanced wind & solar hybrid controller and pure sine wave inverteradvanced wind & solar hybrid controller and pure sine wave inverter  /      on grid controller and inverter
battery reference12V100ah, 2pcs12V100ah, 2pcs12V100ah, 4pcs12v150ah 4pcs/12V100ah 8pcs12v100ah 18pcs12V150ah,18 pcs12V150ah,30pcs

Prod Model: XD-VAWT
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage: Customize
Certificate: CE
Generator Protect: IP54
Number Of Blade: Multiple-Blade
Rotating Shaft: Vertical
Stress Way Of Blade: Resistance
Phase: Three Phase
Xinda Green Energy Co., Limited is specialized in handling the business of vertical and horizontal wind turbine generator, various kind of permanent magnet generator(0.05-3000kw), speed from 20rpm-20000rpm, both vertical and horizontal, small hydro turbine system(low head and higher head), wind solar hybrid system, high efficiency high seepd permanent magnet motor, street lamp and so on

Our partner manufacturers are committed to continuously improving our operations and meeting the needs of our customers through innovation and new product development. We work closely with them to optimize the performance and cost-effectiveness of their processes.
