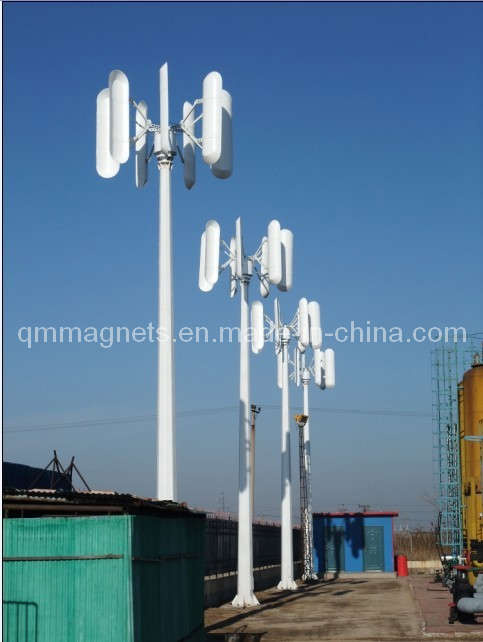

VAWT(Vertical Axis Wind Turbine(Generator))2KW/50RPM on/off grid system
QM-VAWT-2.0KW/50RPM(2KW vertical axis wind turbine) has no gear box, nice look, the crust of generator is made of aluminium, our wind generator is easy to install, as the wind generator is 50rpm directly drive, no compelex process to maintain. QM wind generator has long term warranty for customers.
FEATURES
Operates in Turbulent Wind
Roof or Ground Mount
On-Grid Connection
Integrated System Design
Low Maintenance
Quiet
QM has advanced equipments(ABB TEST equipment for wind turbine(power) generator) and manufacture process, completed quality management system(Samsung proven) and excellent technical team(Experts on Vertical Axis Wind Turbine/Generator/Blades/Electronic System) to provide high quality and environmental protection wind generator and improved power supply solution and first-class after service for customers. We can supply long time warranty than other suppliers.
The wind generator are all made of NdFeB that We produces since 1996. The specific outer rotor magnetic circuit is designed in a way that the products have high generating efficiency, light weight, low starting torque, appealing appearance, easy installation and higher electric performance and use performance than the kindred products.
Technical parameter, power curve, and other details of our wind generator will be pesented to customers, so Please contact me if you are interesting on our wind generators.
QM-VAWT-2.0KW/50RPM TECHNICAL PARAMETER
|
|
Generator style |
Direct Drive Permanent Magnets Generators(PMG) 3 phase AC |
|
Generator material |
NdFeB, F grade copper wire |
|
Rated rotate speed |
50 RPM |
|
Rated wind speed |
10m/s |
|
Rated power |
2KW |
|
Start up wind speed |
2.5m/s |
|
Cut in wind speed |
3m/s |
|
Working wind speed |
3-25m/s |
|
The max powe |
2.5KW |
|
The diameter of wind rotor |
2.5m |
|
Blades number |
7pcs |
|
Blades length |
1650mm |
|
Blades width |
410mm |
|
Wind turbine weight(except tower) |
252kg |
|
The height of tower |
8m |
|
Output voltage (DC) |
48V, 96V, 120V, 220V |
|
Output controller system |
Charger controller, inverter |
|
Battery reference |
4pcs 12V150AH (for off-grid system) |
|
Design life |
15-20 years |
QM has recruited a technical team and all of team members are Professor-grade Engineers on Permanent Magnet Generator(Alternator) field. After rising the found as much as one hundred million RMB, QM has been building a new Axial Flux Permanent Magnet Generator(Alternator) factory for magnets, Permanent Magnet Generator(Alternator), Axial Flux Permanent Magnet Generator(Alternator) and Vertical Axis Wind Generator with exceed 400 employees.
The magnets of all our Permanent Magnet Generator(Alternator) are made of NdFeB which produced by us from 1996. The specific rotor and stator of our permanent magnet generator(alternator) for wind power and hydraulic power systems are designed in a way which is high generating efficiency as high as exceed 85%(Axial Flux Permanent Magnet Generator(Alternator)), light weight as light as 5.8kg for 0.1kW Axial Flux Permanent Magnet Generator(Alternator) and low starting torque as low as 0.1NM, appealing appearance, easy installation and higher electric performance and use performance than the kind of other products(RFPMG).
Under the tenet "Credit, Respect, Excellence and Share" and marketing belief "Quality is the basis of existence Basis, a Science & technology are the road of development", QM is devoted to development of wind energy and building international relationship with customers who intent to develop green and renewable power.
Exepet Permanent Magnet Generator(Alternator) and magnets production. Our direct drive Vertical Axis Wind Turbine(1-5KW VAWT), are all 50RPM direct drive, Horizontal Axis Wind Turbine(1-50KW) have special design; Controller/Inverter system is credible and professional, most of all, our Wind turbine generator is quite special(Direct drive), also we can supply wind turbine with gearbox)
All of QM's products are tested strictly before shipment with the most advanced equipment in order to make sure the quality of our products and our brand 'QM' for permanent magnets generator(alternator).
QM has UL1741, AS4777, CE, G83, RoHS, ISO14001, ISO9001 certificates, specialized in green and renewable energy industry with bright prospect, We would like to cooperate with the friends from all over the world and give green brightness to every friend who cares about environmental protection type new energy. Every friend from all circles to QM would be welcomed for visit, instruction and business negotiation.
Thank you for using QM Permanent Magnetic Products
