Parameter
Rated power 1800VA
Output voltage AC 48/96V
Rotor diameter 6.56Ft (2m)
Blade Length 9.8Ft (3m)
Rated wind speed 31mph (14m/sec)
Start-up Wind Speed 4.5mph (2.0m/sec)
Cut-in wind speed 6.7mph (3.0m/sec)
Survival Wind Speed 78mph (35m/sec)
Work wind speed 3.0-35m/s
Blade material High-Density-Foam
Number of blades 3
Turbine weight 165kg
Package Size (m) 4.0*2.3*2.3
Packing Plyboard
Tower height 6m
Tower type Steel (Q235B)
Suggested battery capacity 12V100AH 4PCS

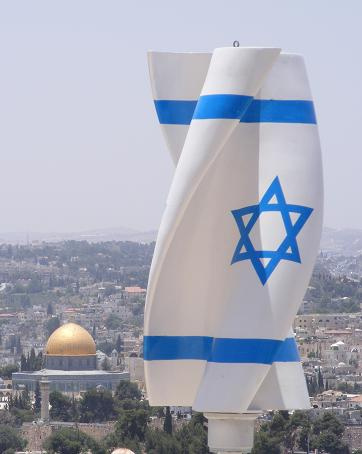

JL Carbon Free Energy Co., Ltd., is the factory of Vertical Axis Wind Turbines in China, including the FDCS, FDCH, FDCHV series, rated power is update from 450W to 10kw, small/swift wind turbine, no noise, low start wind speed, very safe for residential applications, mounting on the roof top or combing with solar panel install on the hybrid street light.
