Wind generator make full use of free energy.

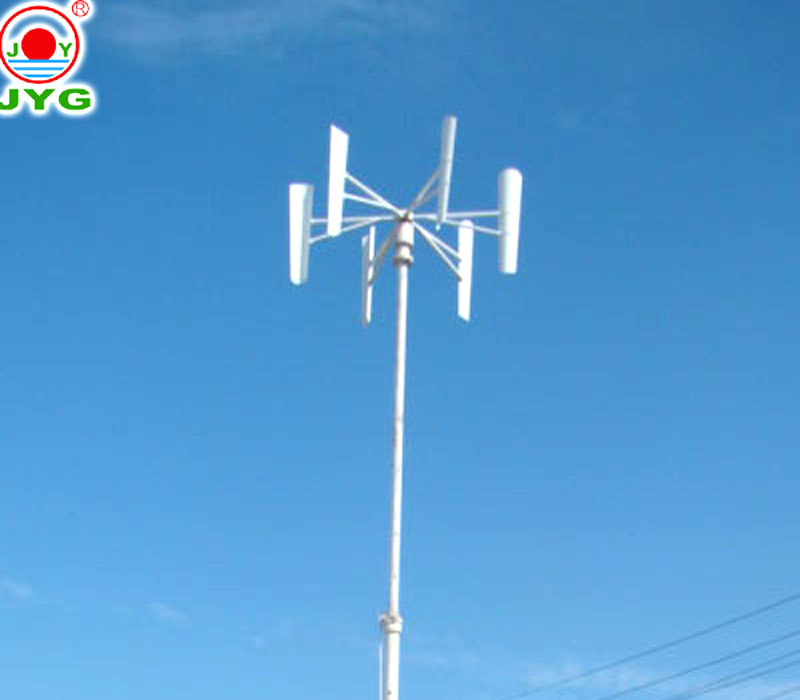

Vertical axis C type wind generator:
The wind power generator is the conversion of wind energy into mechanical energy first and electric energy afterwards.
This equipment can fully make use of wind power to recharge a battery, and also can the saved energy into AC source alternating current.
the technology parameter of C type vertical axis wind generator |
the diameter of wind wheel | 4.2m |
steel of blades number | / |
steel blades lenghth | / |
FRP blades number | 9 |
FRP blades lenghth | 3600mm |
rated rotate speed | 50r/min |
rated wind speed | 12m/s |
start up wind speed | 3m/s |
working wind speed | 3-30m/s |
security wind speed | 50m/s |
rated power | 10kw |
the max power | 12kw |
output voltage(DC) | 380V |
the height of tower | 12m |
the top part weight | 590kg |
output control system | charger controller,inverter |
battery reference | 12v150ah,30pcs |
