Supply Domestic wind turbine from 200W up to 50KW, which are can be used for the on-grid system or off-grid system.

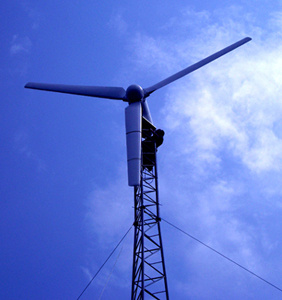

JD Series 2KW-5KW-10KW Wind Turbine System Features
1) With Aerofoil-Type Blades , the structure are comply with aerodynamic standard with high efficiency and lower noise , you can check the pictures of our JD series turbine blades, which are difference for other factories blades
And there's really important design is this turbine is adopted the Variable pitch propeller, it can adjust the blades wind-toward angle for getting the best driven energy for generator
2) This turbine all with mechanical brake device which can be automatically operation or by manual operation, when your wind turbine meet the strong windy , you can totally brake it to avoid any damaged
3) There're also few kinds of tower for selection,Tapered tower, Lattice Tower, hydraulic tower , you can choose the best one against the purchasing cost budget and the installation site condition
4) All towers will be with a working station fence , the technicians can stand at the working station for making installation and commissioning for this turbine
5) On-grid and off-grid system application for different countries demanding
If you choose the off-grid system , we can equipment with a dual powers inverter with this turbine, so that it can use the utility grid power and wind power to together supply your home , the wind power as main power and utility grid power as standby power ,its voltage output can be designed against users requirements
6)The on-grid system is equipped with Sungrow controller and inverter, which are obtained the CE , TUV ,G83 certificate to ensure you can easily get the installation permission from your government ,The on-grid voltage can be single phase 240Vac or three phase 380-415Vac
7) Low noise (Under 55db), never effect people working and rest
Numbers of Blade | 3 pcs |
Material of Blade | FRP Complex Resin |
Diameter of Wind Rotor | 6.4m |
Start (out-in) wind speed | 3m /s |
Working wind speed | 3 -29m /s |
Rated speed | 200 rpm |
Security wind speed | 45m /s |
Wind energy ratio | 40% |
Generator | Three phase Permanent magnet generator |
Generator rated power | 5000w |
Max output power | 7000w |
Charging voltage | 240Vdc |
Output voltage of Inverter | Single phase 220-240Vac/50HZ 110-130Vac /60HZ Three Phase 380-415Vac/60HZ |
Stop method | By Controller auto-brake or Manual |
Wind direction tracking method | By dogvane and controller auto-adjustment |
Speed adjustment method | By anemoscope and serve motor |
Protect method | Intelligent control full-automatically |
Tower type | Galvanized Tapered tower |
Tower height & weight | 12m / 1450kgs |
Charging control | Intelligent control full-automatically |
Inverter power supply | Pure sine wave |
Battery Matching (for off-grid wind system) | 20pcs 12Vdc-150/200AH Lead-acid or colloid batteries |
Grid tied inverter matching (For on-grid wind system) | Input: 240Vdc Output: 240Vac single phase or 380-415Vac Three phase Recommend: SMA WB 6000A (one pcs) Sungrow WG10K (One pcs) |
Time of charging (off-grid type) | About 16 hours |
Annual power generation | About 12500 KWH ( annual average wind speed above 7m /s ) |
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.
The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:
- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)
-JD series Horizontal Axis Variable Pitch Blades Wind Turbine (2KW- 30KW)
-FDV series Vertical Axis Wind Turbine (300W-5KW)
-Wind & Solar Hybrid Street Light System (500W and 800W)
-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)
These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries
In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;
There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.
If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
