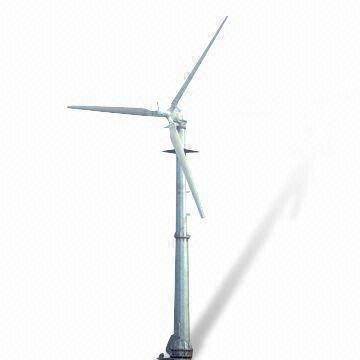

HY_10kW TECHNICAL PARAMETER
Rated power(kW): 10
Material of the blades: Fiberglass-Reinforced Plastics
Rated wind speed(m/s): 11
Speed regulation method: Passive pitch
Startup wind speed(m/s): 3
Generator style: 3-phase AC PM
Working wind speed(m/s): 4~25
Tower height (m): 8
Survived wind speed(m/s): 50
Stop method: Positive pitch
Rated rotate speed (r/min): 200
Main machine weight(kg): 500
Rotor Diameter(m): 7.2
Guyed tower weight(kg): 500
Working voltage(V): DC300V/AC380V
Freestanding tower weight (kg): 1080
Annual power generation (KWH): 10000/30000
Zhejiang huaying wind power generator Co., Ltd, a member of tongkun group--China's leading industrial conglomerate, is a high tech startup company specialized in the research, production and marketing of small and middle sized wind turbine system. Located 120km away from Shanghai, the company enjoys excellent traffic convenience.
Guided by the principle of "advanced technology, exquisite product and competent manufacturing", the company will further enhance the reliability and performance of wind turbine based on the brand new mechanical blade pitch technology so as to let the huaying wind turbine run all over the world and make contribution to the green planet builds.
