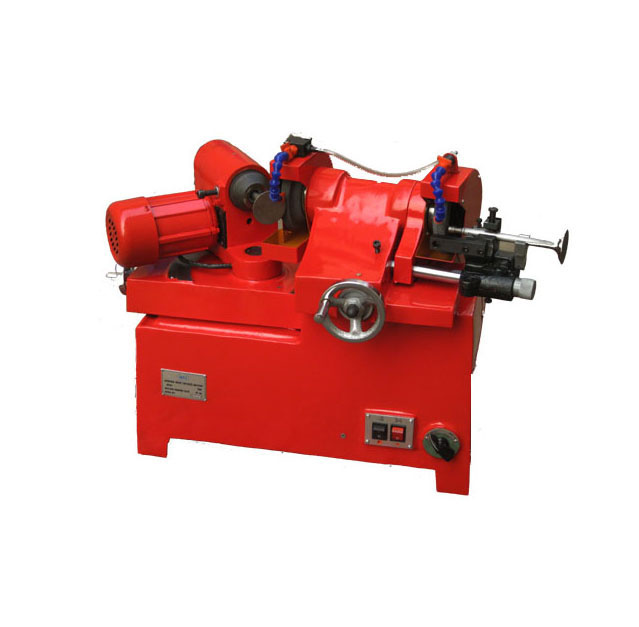

High quality Valve Grinding Machine
Valve grinding machine. This machine is used to grind valves, widely used in the auto repair shops.
Light and compact design, easy operation and maintenance.
Model: AAE-3M9390
Max. Grinding diameterdia: 90mm
Range of grinding valve diameterDia: 25mm-dia90mm
Valve axle diameter: Dia6-dia16mm (standard)
Dia4.5-dia: 7mm (standard)
Dia12-dia: 18mm (standard)
Company Information:
Arch Auto Equipment is one professional auto equipment manufacturer and supplier China. Since 1990, Arch is committed to designing, producing auto equipment. We supply wide range of equipment such as tire changer, truck tire changer, wheel balancer, truck wheel balancer, single post parking lifts, two post lifts, four post lifts, truck lifts, alignment lifts, scissor lifts, spray booth, waste oil burner, waste oil heater, oil drains, wheel weights, nitrogen generator and inflator, car turntable. Featuring durable quality, competitive price, timely and professional service, Arch Auto Equipment's equipments get more and more popular in the international markets, such as Germany, USA, Holland, UK, Russia, and Iran, awarded TUV/CE certificate. Furthermore, Arch Auto Equipment has strong R&D ability. During the past years, we have successfully created new design products with customers' cooperation. Arch Auto Equipment is willing to join hands with any partner for a bright future.
Our company website: http://www.ArchAutoEquipment.com
|
Model |
AAE-3M9390 |
|
Max. grinding diameter |
dia90mm |
|
Range of grinding valve diameter |
Dia25mm-dia90mm |
|
Valve axle diameter |
Dia6-dia16mm (standard) |
|
Dia4.5-dia7mm (standard) |
|
Dia12-dia18mm (standard) |
|
Grinding angle |
30 degree-60 degree |
|
Longitudinal slide travel of work head |
110mm |
|
Cross slide travel of wheel head |
95mm |
|
Spindle speed |
180-300r/min |
|
Wheel speed |
4500r/min |
|
Max. grinding depth |
0.025mm |
|
Overall size |
630 x 410 x 500mm |
|
Packing size |
740 x 540 x 640mm |
|
N.W/G.W |
90 / 130kg
|
