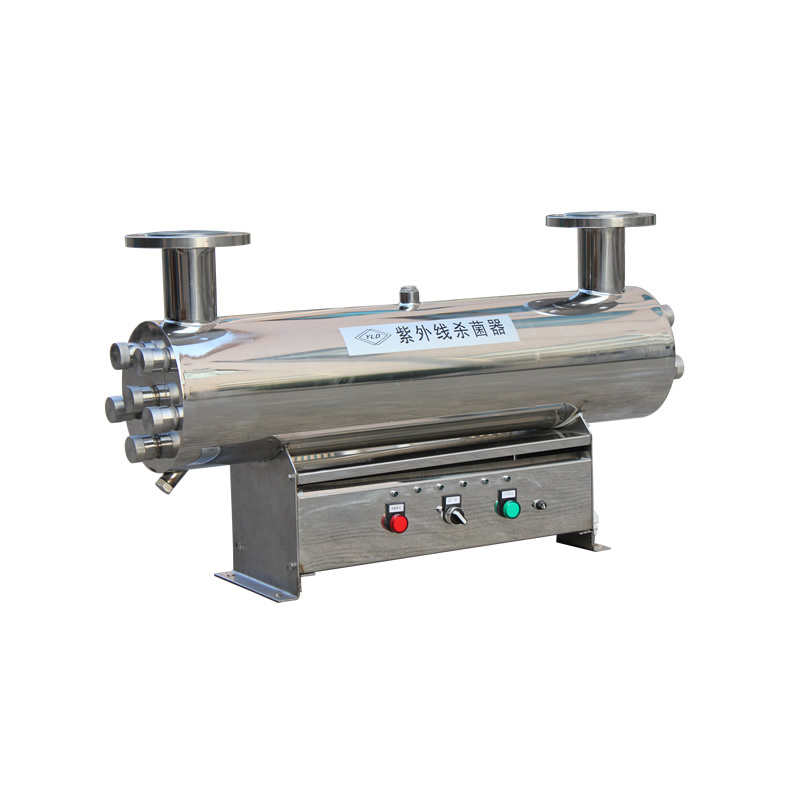

UV Sterilizer for Home Swimming Pool Water Disinfection

UV Sterilizer for Home Swimming Pool Water Disinfection




UV Systems

A simple but practical method of destroying disease causing microorganisms in water. Ultraviolet systems destroy many forms of harmful bacteria, E. Coli, Protozoan cysts, and water-borne diseases found in water. Unlike traditional disinfection methods such as chlorination UV imparts no residual chemicals into the water. This compact line of ultraviolet disinfection systems is ideally suited for point of use filtration, RO pre or with a myriad of other applications requiring the flexibility this design offers. Low power consumption operates for pennies a day. These systems are designed for easy homeowner maintenance. The UV lamp can be changed without interrupting the water flow.



Installing a UV Sterilizer
With a little knowledge of UV sterilizers, the installation can be very simple. It is advisable to follow the manufacturer's recommendations when installing the UV light. Make sure to install fixtures that complement each other to avoid mishaps.
Locate the Right Place to Mount the UV Sterilizer
From the floor plan, choose the appropriate location to mount the sterilizer. Some UV light units are designed to hang from the water system, while other units can be installed below the tank. Depending on the design and the needs of the homeowner, UV lights should not be installed in places that pose risks either to the user or the unit itself.


Install the Fragile Lamp and Quartz Sleeve
Make sure not to touch the quartz sleeve or the lamp with fingers, as the natural oils found in the hands or the skin can damage the glass components. Instead, use cotton gloves to keep the hands from touching the glass. Tighten all the fittings to give the connection a watertight seal. Remember, leaky connections can damage the delicate lamps. Connect the power supply to the bulbs.






UV Disinfection Systems Application

1. Food processing and industrial water disinfection

2. Hospitals, various laboratory water disinfection, and high levels of pathogenic water disinfection

3. Municipal water

4. Biochemical pharmaceutical, cosmetics production water disinfection

5. Aquatic products processing water disinfection

6. Swimming pool water disinfection

7. Seawater, freshwater aquaculture breeding water disinfection

8. Ultra-pure water for electronic industry, and so on






How does UltraViolet light work on disinfecting water?

Ultraviolet (UV) light is one of the few FDA approved methods of disinfecting water. There are many benefits to UV systems versus chlorine disinfection such as : no chemical additives, no smell, no risk of overdosing, safer and easier to maintain.

The way it works is by allowing water to enter the chamber of the UV housing. Water never touches the lamp itself but moves around a quartz sleeve which protects the water from ever touching the actual lamp.

As the microorganisms get hit by the UV rays, their DNA gets damaged and they become "sterile" and unable to replicate. As they leave the UV housing and enter the home, it's important to understand that these microorganisms are still alive. However, these "sterilized" bacteria and viruses cannot replicate and therefore die over time or by our own body's white blood cells.




Technical parameters:

model	Processing capacity (Ton/Hour)	power (W)	inlet and outlet (inch)	working pressure (Kg/cm 2 )	malfunction alert for UV lamp	reactor dimension (cm) L×W×H	dimension of panel(cm)	anchor bolt  (cm)	overall weight (Kg)
YLCn-005	0.3	16	1/2"	6	matched	30×6×11			5
YLCn-008	1	25	1/2"	6	matched	47×6.3×11			10
YLCn-050	2	40	1"	6	matched	100×9×20	Φ8.9×25 (diameter×length)	69×4×Φ1	25
YLCn-150	6	80	1+1/4"	6	matched	100×11×23		69×4×Φ1	30
YLCn-200	8	120	1+1/2"	6	matched	100×15.9×30	Φ8.9×45 (diameter×length)	69×7×Φ1	35
YLCn-300	12	160	2"	6	matched	100×15.9×32		69×7×Φ1	40
YLC-050	2	40	DN25/1"	6	matched	100×8.9×30	25×30×12 (L×H×w)	60×4×Φ1	45
YLC-150	6	80	DN32/1 1/4 "	6	matched	100×10.8×30		60×4×Φ1	50
YLC-200	8	120	DN40/1 1/2 "	6	matched	100×15.9×40		60×7×Φ1	60
YLC-300	12	160	DN50/2"	6	matched	100×15.9×40		60×7×Φ1	70
YLC-360	15	200	DN65/2 1/2"	6	matched	100×15.9×40	50×78×25 (L×H×W)	60×7×Φ1	120
YLC-500	20	240	DN65/2 1/2"	6	matched	100×21.9×50		60×11×Φ1.2	130
YLC-600	25	280	DN80/3"	6	matched	100×21.9×50		60×11×Φ1.2	140
YLC-700	30	320	DN100/4"	6	matched	100×21.9×50		60×11×Φ1.2	150
YLC-1000	40	360	DN100/4"	6	matched	100×21.9×50		60×11×Φ1.2	160
YLC-1200	50	400	DN125/5"	6	matched	100×21.9×50		60×11×Φ1.2	180
YLC-1500	60	420	DN150/6"	6	matched	170×27.3×57		120×16×Φ1.4	210
YLC-2000	80	560	DN150/6"	6	matched	170×27.3×57		120×16×Φ1.4	220
YLC-2500	100	700	DN150/6"	6	matched	170×27.3×57	60×128×30 (W×H×T)	120×16×Φ1.4	275
YLC-3000	125	840	DN150/6"	6	matched	173×27.3×57		120×16×Φ1.4	300
YLC-4000	150	1120	DN200/8"	6	matched	173×32.5×65		120×20×Φ1.6	325
YLC-5000	200	1400	DN200/8"	6	matched	173×37.7×72		120×22×Φ1.6	350
YLC-7000	300	2100	DN250/10"	6	matched	175×42.6×80		120×24×Φ2.0	400
YLC-10K	400	2520	DN250/10"	6	matched	176×52.9×95	60×150×40 (W×H×T)	120×28×Φ2.2	475
YLC-15K	600	3080	DN300/12"	6	matched	176×78×110		120×32×Φ2.4	600
YLC-20K	800	3920	DN350/14"	6	matched	confirmed	confirmed	confirmed	confirmed
YLC-25K	1000	4760	DN350/14"	6	matched	confirmed		confirmed	confirmed
