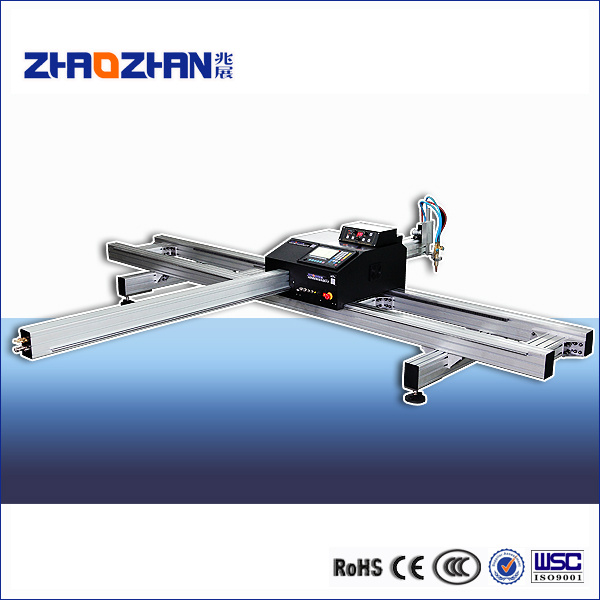

LARGE PORTABLE CNC FLAME PLASMA CUTTING MACHINE
Introduction:
Launched by Shanghai ZHAOZHAN AUTOMATION EQUIPMENT CO. Ltd, ZZ-L collection with economical and convenient advantages enjoys broader cutting range, thick plate cutting and high applicability, high-intensity, labor-saving and space-saving features which further utilize the performance of the equipment.
Machine tool and beam are of good quality aluminum alloy which is anti-deformed, durable, economical and decent after the disposal of stress relieving and surface oxidation.
Product features:
1) Tailored track acquires zero-noise, high-intensity, high-speed and high-precision features.
2) Human-computer interface design makes the machine easy to learn and operate, and have complete functions.
3) Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
4) Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.
5) With two cutting modes: Flame Cutting & Plasma Cutting.
6) Chinese, English, French, and Portuguese are ready to use.
7) Can automatically memorize and restore when power is off.
8) Plasma THC ( torch height control) device function: By automatically adjust the height of the torches according to the feedback of the plate height changes, THC can protect the torch form damage and prolong life span of the nozzles.
9) With status indication device.
10) With positioning functions of protection cover, proximity switch and dual-speed.
11) Compatibility of the domestic plasma and foreign-brand plasma.
12) With PWM control mode.
Name |
LARGE PORTABLE CNC FLAME PLASMA CUTTING MACHINE |
Model |
ZZ-1525L-F |
ZZ-2030L-F |
ZZ-1525L-H |
ZZ-2030L-H |
Input Power |
Single Phase AC 220V |
Approximately 600W |
Plasma THC |
Without Plasma THC |
With Plasma THC |
Cutting Modes |
Plasma Cutting (Working with plasma generator) and Flame Cutting replacement used |
Transmission Style |
Rack And Gear |
Motor Style |
Step Motors SingleDrive |
Effective Cutting Range (X*Y) |
1500*2500mm |
2000*3000mm |
1500*2500mm |
2000*3000mm |
Track length (effective cutting length Y axis) can be customized for extending cutting length |
Track length (effective cutting length Y axis) can be customized for extending cutting length |
Y axis Track Size (mm) |
3500*530*240 |
4000*530*240 |
3500*530*240 |
4000*530*240 |
Track Holder Quantity |
2 pieces |
3 pieces |
2 pieces |
3 pieces |
Cutting Speed |
0 - 3000 mm / min |
Torch Lifting Distance (Z) |
≤130mm |
Working Precision |
± 0.2 mm / meter |
Flame (Gas) Cutting Thickness |
Piercing Capacity: 5 - 60 mm Edge Start: 5 -120mm |
Plasma Cutting Thickness |
Depends on the cutting capacity of the Plasma Generator |
Torch Height Control Style |
Moter Drive/ Flame THC |
Plasma THC |
Flame auto igniter |
Optional |
Unavailable |
Gas Pressure |
Acetylene Gas or Propane Gas Max 0.1Mpa |
Oxygen Pressure |
Oxygen Gas Max 0.7Mpa |
Cutting Table |
Seperated with main machine.Cutting table will be optional supplied. |
