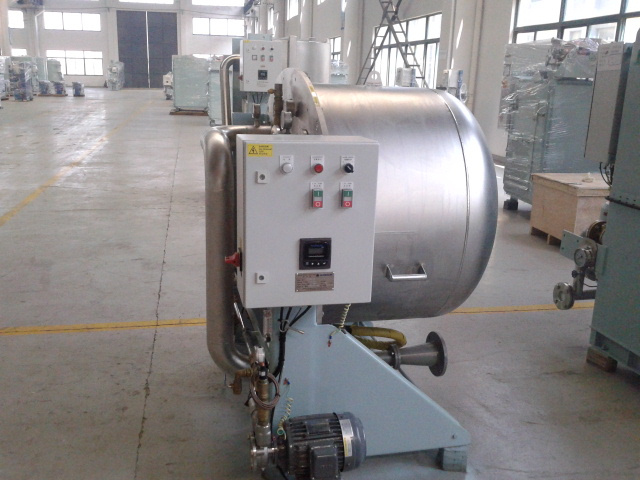

A FWG-P mainly consists of evaprating and condensing chambers, ejector equipped to achieve vacuum, fresh water pump for delivering distilled water to storage tank, relevant accessories built in complete unit.
Sea water supply pump is only loose part which will be installed independently in proper position.
Control cabinet with embedded salinity meter directly fitted on the body of the unit and the cabinet also can be arranged separately in where convenient for operation.
Main features of plate type fresh water generator
- Wide range of production capacity (1T/D~50T/D)
- Compact design for easy installation
- High quality titanic plate, 316LSS & Al-bronze for other components
- Standard parts for convenient replacement by crews
- Highly compatible to variety heating sources: Steam heating block, hot water, thermal oil heating block
Characteristics of Fresh Water Generator:
The plant is a packaged unit, which is mounted on a base frame. All components and accessories such as fresh water pump, interconnecting pipe-work as well as inner cable are connected prior to delivery.
The sea water pump independently supplied for on-site installation on board, which is to be positioned under the light ballast line.
SCOPE OF SUPPLY AND MATERIA
One off complete Fresh Water Generator FWG-10 Detail components as follows:
Skid supply:
1. Cover Stainless steel 316L
2. Condenser Titanium fin plate
3. Demister Stainless steel 316L
4. Evaporator Titanium fin plate
5. Pipework
a). For sea water Stainless steel 316L b). For distillate Copper/Brass
6. Foundation frame Mild steel epoxy resin coated
7. Brine / Air ejector Cast Bronze
8. Distillate pump
Casing: Stainless Steel Impeller : Stainless Steel Shaft:Stainless Steel
Capacity: 1.2m3/h at 2bar, IP54, Class F
Power supply: 380/440VAC, 50/60Hz, 3P; 0.75kw
9. Control equipment and instrumentation
n Control panel (IP54)
n Salinity cells for distillate
n Pressure gauges
n Solenoid valve
n Sample valve
n Scale inhibitor tank and flowmeter
Loose supply:
Sea water pump 1
Capacity: 25m3/h at 4.5 bar, IP54, Class F
Power supply: 380/440VAC, 50/60Hz; 7.5kw
| Model | GRFWG-5 | GRFWG-10 | GRFWG-16 | GRFWG-20 | GRFWG-30 | GRFWG-50 |
| Capacity(T/D) | 5 | 10 | 16 | 20 | 30 | 50 |
| Length(mm) | 770 | 970 | 970 | 1160 | 1400 | 1400 |
| Width(mm) | 600 | 870 | 1150 | 1150 | 1250 | 1450 |
| Height(mm) | 960 | 1150 | 1150 | 1415 | 1550 | 1550 |
| D.W.(KG) | 300 | 650 | 900 | 1150 | 1350 | 1450 |
| O.W.(KG) | 350 | 700 | 950 | 1250 | 1450 | 1600 |
