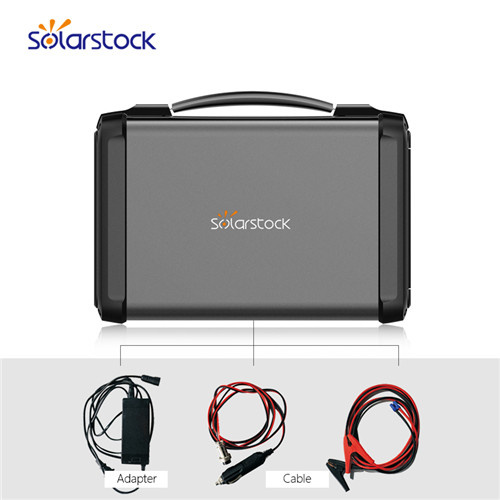

Updated 400W Solar Power Generator with AC DC Output
Detail Specifications:
Item |
SS-PH001 |
Battery |
12V 50AH Lithium battery |
External charging |
Voltage:12.6V-20V Current:5A |
Solar charging |
Voltage:18V Current:<10A |
Adapter charging |
Voltage:13.5V Current:6A |
AC Output |
The maximum continuous output power:360W
Output voltage:AC220V
Output frequency:50HZ
Output waveform:Pure sine wave |
DC 12V Output |
Output voltage:DC12V
Max output current(IMAX):8A |
Overheat protection |
More than 60ºC |
USB DC5V Output |
Output voltage:DC5V
Max output current(IMAX):3A |
Emergency car start |
12V battery car engine start |
Cooling |
Air-cooling |
Protection types |
Over-current, under-voltage, over-voltage, overload, overheat and Short circuit protection |
Product dimensions |
385mm*280mm*150mm |
Product N.W |
9.1KG |
Main features:
1. Light weight, small volume. Appearance vogue, with delicate to manual work.
2. IP 67 waterproof, no worry for being damaged by rainy weather or water.
3. With intelligent display system, it can indicate the status of battery, charging, mistake, the connection of AC/DC output.
4. Integrated portable design, super function with AC/DC input and output.
5. Lithium battery, with long lifespan, can be replaced easily after its service period.
6. Adopt intelligent control, with 6 kinds of protection, over charging, over voltage, under voltage, over loading, over-heating and short circuit protection.
7. Multifunction charging ways: solar panel, electricity AC or car charging.
8. It can load various voltage of appliances, with DC5V/12V or AC 220V. As TV, mini refrigerator, lamp, fan, laptop, mobile phone, digital camera and so on.
9. The unique function of stating the car.
Applications:
The product is to store solar energy in the internal lithium battery by controller, when the need of electricity, then the battery voltage is converted to DC voltage and pure sine wave mains voltage to be used in a variety of everyday life. This product has a compact structure, small size, stylish appearance, and complete functions. It's a ideal electricity for the military, fire, scientific research, mining, tourism, grazing and other seem like these have a long wild life. It can also be used in the field of emergency car engine start or used as other emergency electricity.
Operating environment:
1. The product should be used in dry cleaning ventilated environment.
2. Avoid to use in direct sunlight, blazing sun, rain, moisture, dust, and mist environments.
3. Prohibiting use in flammable, explosive gas environment, and must beware of flames and sparks.
4. The environment temperature is from -10ºC to 45ºC.
5. Air relative humidity is not greater than 80%(25ºC±5ºC).
