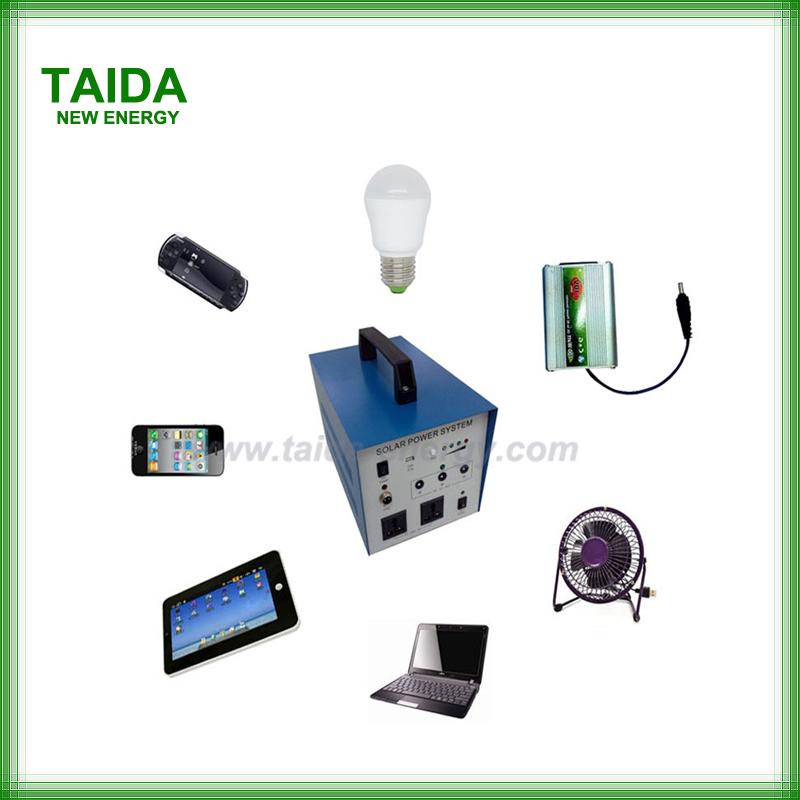

Universal Solar Lighting System for Rural Area Indoor Lighting
Specifications
Solar panel Max. Power 50W
Electrical data Open circuit voltage 21.5V Max voltage 17.5V
Short circuit voltage 3.15A Max current 2.86A
Dimensions 620*580*35 mm(just for your reference)
Installation angle Install at 0° ~ 60° From the horizontal
Battery pack Box Size L330*W200*H250 mm
Battery Battery type 12V/24A maintenance-free lead-acid Ambient temperature -30° C~+60° C
Life time 5_8 years
Charge/
Discharge
Controller
Input& Output Charge/
Discharge
Controller specification 12V/5A
Inverter specification 300W, AC: 110V-220V
DC output 5V0.8A 1 USB outlet, suitable for mobile and other small electronics.
12V5A 3 outlets, suitable for DC 12V LED, electric equipments(within12V5A ): DV, digital camera, mobile, MP3, MP4, GPS, PDA, portable DVD, interphone, radio, recorder, etc.
AC output
50/60Hz Inverted output of standard electricity wave When it's full battery, 70W electric equipments can use 3-4 hours: Small TV, fan, laptop, etc. (only if the max power in total is less then 300W)
Accessories 1, AC110-220 adaptor
2, USB Transfer Line(with 10 different terminal )
3, 1 PC 12V/5W LED; 3 PCS at most, DC FAN 12V/12W(optional)
Working hours
(full battery) 2 PCS 12V/5W LED 20-25 hours
1 set 21 inches TV 2-3 hours
1 set laptop 5-6 hours
1set 12V/12W FAN 18-21 hours
Established in 2005, Qingdao Taida New Energy Co., Ltd. is a leading manufacturer of solar powered products. We specialize in the production of solar camping lantern, desk lamp, flashlight, street light, mobile charge kit, solar panels, small solar home system etc.
Taida solar products are designed and manufactured to meet global requirements. Our manufacturing facility are equipped with the extensive state-of-the-art equipment needed to minimize manufacturing cots while maintaining highest quality standards. We are committed to certification ISO 9001 which we have passed since 2008.
Over the years, we have gained an excellent reputation for our high quality products, especially our main product solar lanterns. We have four patents and CE, RoHS certificate for this well-design product.
Your satisfaction is our number one concern. We look forward to a successful partnership with all our esteemed customer.
