1. Output Pure Sine Wave
2. PV power generation preferred
3. Peak and valley electricity for regular charge in the situation of long time 3ithout sunshine
4. It will automatically switch to grid system in the case of batteries are weak, and it will auto returns to inverter supply when the battery is fully charged.
5. Battery power display.
|
Model |
ISS1500Z |
ISS3000Z |
ISS5000Z |
|
AC Output Power |
1500W |
3000W |
5000W |
|
Output Waveform |
Pure Sine Wave |
|
Precision of Output Voltage |
220V ± 3% or 110V ± 3% |
|
Precision of Output Frequency |
50Hz ± 3Hz or 60Hz ± 3Hz |
|
Power factor |
0.99 |
|
Overload ability |
120%, 30 seconds |
|
Over Voltage Protection |
> 29V |
> 58V |
> 58V |
|
Low Voltage Protection |
< 19V |
< 40V |
< 40V |
|
Peak power efficiency |
> 94% |
|
switching time between PV power and AC electricity |
< 20ms |
|
Certificate |
CE |
|

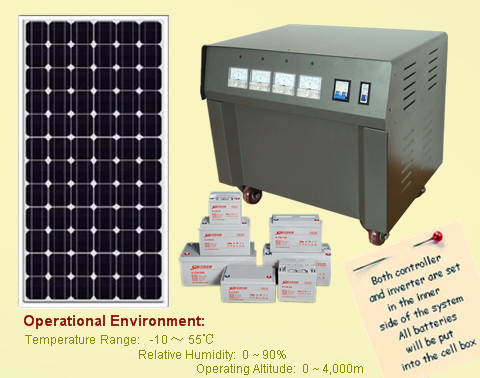

Operational Environment: |
|
Operating Temperature Range |
-10 - 55 centigrade |
|
Relative Humidity |
0 ~ 90% |
|
Operating Altitude |
0 ~ 4, 000m |
|
Standard Configuration details: |
|
No. |
What’ s included |
ISS1500Z |
ISS3000Z |
ISS5000Z |
|
1 |
Mainframe box |
1PC L550*W545*H163 (mm) |
|
2 |
Cell box |
1PC |
2PCS |
3PCS |
|
L550*W545*H283 (mm) |
|
3 |
Wheel |
4PCS (Dia. 3 inch---H105mm) |
|
4 |
Inverter |
1500W |
3000W |
5000W |
|
5 |
Controller |
24V/45A |
48V/60A |
48V/60A |
|
6 |
Photovoltaic Panel |
1000W |
2000W |
2800W |
|
26.2V, 7.63A |
26.2V, 7.63A |
26.2V, 7.63A |
|
200W*5PCS |
200W*10PCS |
200W*14PCS |
|
L1482*W992*H50 (mm) |
|
7 |
Gel Battery |
24V/140Ah |
48V/140Ah |
48V/210Ah |
|
12V/70Ah*4PCS |
12V/70Ah*8PCS |
12V/70Ah*12PCS |
|
L330*W173*H169(mm) Total H174mm/22.5kg |
|
Mechanical Data: |
|
Dimensionof System box (mm) |
L550*W545*H551 |
L550*W545*H834 |
L550*W545*H1117 |
|
Weight of System box (kg) |
35 |
50 |
67 |
|
|
|
|
|
|
|
|
