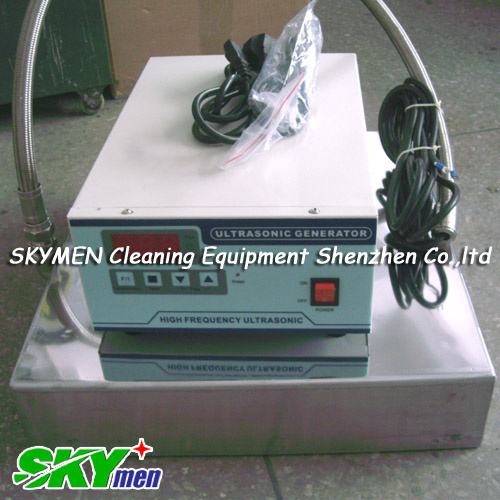

Ultrasonic transducer box+high frequency electric ultrasonic generator 220v&110v JTM-1036
High power submersible ultrasonic transducer generator is put in the existing tank to remove oil and degrease. Transducer boxes allows you to
JTM-1036
Specification details:
Ultrasonic transducer box size (mm): 500x460x100(LXWXH)
Housing material: SUS304/SUS316L
Surface finishing: Hard-Cr plating treatment (20+microns)
Ultrasonic frequency: 28kHz / 40kHz
Ultrasonic transducers: 36PCS
Ultrasonic power: 1800W
Electronic generator: KG1800, Ultrasonic generator work separately control transducers
Power supply: AC 110V/220V or 220/240V, 1, 13AMP
What is an "ultrasonic"?
Under ultrasonic is commonly understood sound waves whose frequency is above the threshold of human hearing (in the range of 16 kHz - 1 GHz). In addition, you can generate ultrasound with much higher energy, ie, much "louder" than the audible sound. In the use of ultrasonic technology distinguish the weak signal (test materials, medical supplies, diagnostics) and high-intensity ultrasonic, such as ultrasonic for cleaning, ultrasonic welding.
Applied to liquid media ultrasonic has found application in the so-called effect of "ultrasonic cavitation. " This effect is used as a basis in the ultrasonic cleaning device
Custom made size are all available for you.
Features:
Original BLT type transducer
SUS stainless steel housing Hard-Cr plating Treatment ( 20 + microns )
Adaptable for continuous operation
Adjustable ultrasonic power
With separate control ultrasonic electronic generator
User-friendly operation
Custom made is available
Transducer no. /transducer box: Range[6PCS~36PCS per box]— Transducer box size can be custom made
Ultrasonic power: Range[300W~1800W]
Ultrasonic frequency: 28kHz/40kHz
Model: JTM series |
JTM-1006 |
JTM-1012 |
JTM-1018 |
JTM-1024 |
JTM-1030 |
JTM-1036 |
OVERALL DIMENSION (mm) |
L |
305 |
355 |
406 |
500 |
550 |
500 |
W |
250 |
305 |
305 |
355 |
406 |
460 |
H |
100 |
100 |
100 |
100 |
100 |
100 |
HOUSING'S MATERIAL |
SUS304/SUS316L |
SURFACE FINISHING |
Hard-Cr Plating Treatment ( 20 + microns ) |
ULTRASONIC FREQUENCY* |
28kHz / 40kHz |
TOTAL ULTRASONIC TRANSDUCER NUMBERS |
6 pcs |
12 pcs |
18 pcs |
24 pcs |
30 pcs |
36pcs |
ULTRASONIC OUTPUT POWER (MAX.) |
300W |
600W |
900W |
1200W |
1500W |
1800W |
ELECTRONIC GENERATOR |
KG300 |
KG600 |
KG900 |
KG1200 |
KG1500 |
KG1800 |
WORK SEPARATELY |
GENERATOR POWER SUPPLY |
AC 220 / 240V, 1, 13AMP |
* NEW PRODUCT : 68kHz / 80kHz / 120kHz are available |
