Quick Details:
Condition: New
Place of origin: China(mainland)
Brand name: UIG
Model number: KZO, KZON TYPE
Production capacity: 50/60/80/100 m3/hour
Power: 76-138 KW(Shaft power)
Voltage: 380V, 400V, 440V
Certification: ISO 9001: 2000
Warranty: 1 year
Life: 20 years with proper maintenance
After-sales service provided: Engineers available to service plants overseas
Usage: Industrial and medical (oxygen, nitrogen).
UIG Air separation plants are designed for a vast range of capacities and products summarized below: FOR OXYGEN 99.7 %
Description:
You may find that the connection between individual machines & equipments is high pressure flexible tube, this is one of the advanced features for this plant as designed. It will definitely save installation period on site.
Compressed the liquid oxygen through liquid pump. So the oxygen can be used in hospital.
The connection pipes are high pressure soft pipe, easy connect and separate, The time of installation and testing is not more than 30 days.
Adopted screw compressor (main machine imported from world famous company). Keep the plant normal work long time, Easy operate and maintenance.
Air cooling type is adopted for whole set of plant, there is no cooling water required.
Need very small area (Land Area 40, Factory Area 90), .
Skid mounted type air separation plant, connected by high pressure flexible pipe between individual machines/equipments,
Plant features
1) This air separation plant adopts cryogenic separation process. Oxygen is obtained by inner compression, so it can be both for medical & industrial usage and to be filled into cylinder.
2) Whole set of plant adopts skid mount type and connected with high-pressure hose between individual machines/equipments. So, it no need any foundation required to save investment cost for civil construction and shorten installation period accordingly.
3) Cooling mode of plant adopts air cooling for whole set of plant, no cooling water system required so it also save investment cost for the owner.
4) This plant can be shifted to any second plant to operate because of its no fixed foundation feature. So it is a mobile type plant.
Applications:
We supplied to many countries (Russia, Kazakhstan, Tajikistan, India, Bangladesh, Thailand, Philippines, North Korea, Mongolia, Equatorial Guinea, Botswana, Zambia, Angola, Tanzania).
Process:

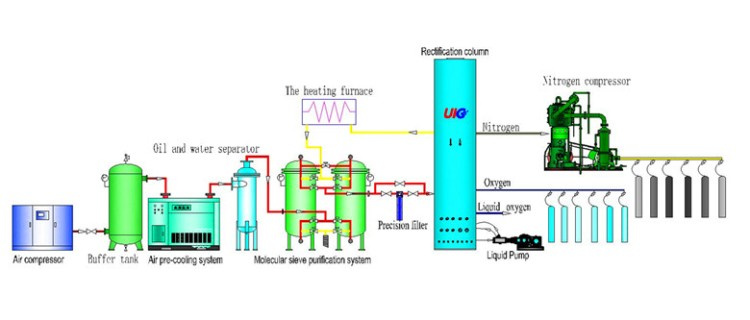

Air Air compressor Pre-cooler Purifier Rectification column and Turbo-expander liquid oxygen tank or liquid nitrogen tank
Competitive Advantage:
Higher economic efficiency, good quality, lower transportation cost, better performance price, safety and convenience.
O2 flow |
50 m³/h |
60 m³/h |
80 m³/h |
100 m³/h |
O2 purity |
≥99.7% |
≥99.7% |
≥99.7% |
≥99.7% |
O2 pressure |
15 -25MPA |
15 -25MPA |
15 -25MPA |
15 -25MPA |
Start-up time |
8-12 Hours |
8-12 Hours |
8-12 Hours |
8-12 Hours |
Operating period |
≥1 Years |
≥1 Years |
≥1 Years |
≥1 Years |
O2 flow |
50 m³/h |
60 m³/h |
80 m³/h |
100 m³/h |
O2 purity |
≥99.7% |
≥99.7% |
≥99.7% |
≥99.7% |
O2 pressure |
15 -25MPA |
15 -25MPA |
15 -25MPA |
15 -25MPA |
N2 flow |
Or (50m³/h ) |
Or (60m³/h ) |
Or (80m³/h ) |
Or (100m³/h ) |
N2 purity |
99.999% |
99.999% |
99.999% |
99.999% |
N2 pressure |
15 -25MPA |
15 -25MPA |
15 -25MPA |
15 -25MPA |
Start-up time |
8-12 Hours |
8-12 Hours |
8-12 Hours |
8-12 Hours |
Operating period |
≥1 Years |
≥1 Years |
≥1 Years |
≥1 Years |
Hangzhou Union Industrial Gas-equipment Co., Ltd. Are a technology enterprise specialized in R&D, design and manufacture of various air separators and cryogenic application equipments. Our company always insists on taking the technology as the motility, emphasizing technique and products innovation, cooperating with many scientific and research institutes, academic schools which are in the same industry range with us. On the basis of integration into advanced design concept and strict management procedure and the outstanding production technique and give the enthusiastic service support. Decisive adoption of new processes, new technology, the R&D and manufacturing capability of the company is enhanced and the development is oriented to the Saving Energy variety and perfection of the products.
The products of the company cover the fields of metallurgy, petrochemical industry, electronics, machinery, construction material, Medicine, New materials which have been well received all over the country and also been supplied to many Asian and African countries(Russia, Kazakhstan, Tajikistan, India, Bangladesh, Thailand, Philippines, North Korea, Mongolia, Equatorial Guinea, Botswana, Zambia, Angola, Tanzania). The main products are: the medium and small size oxygen nitrogen plants, liquid oxygen and liquid nitrogen plants, oxygen and nitrogen liquefaction plants, high purity nitrogen generators, molecular sieve pressure swing adsorption plants and PSA (VPSA) oxygen (nitrogen) plants.
In addition to provide high-quality products, our company also undertakes technical consulting, engineering design, equipment installation, technical training and other services, and implementation of the turn-key project. Sincerely welcome your contact and visit to the company.
