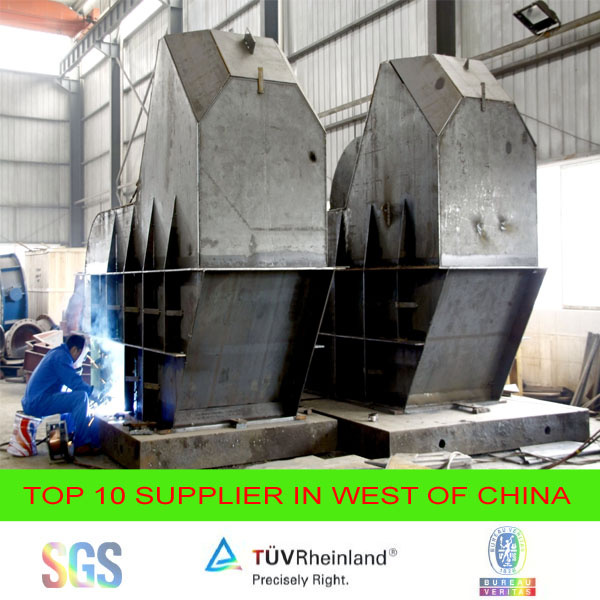

Home Generator Products Two Nozzels Pelton Turbine

Two Nozzels Pelton Turbine

Two Nozzels Pelton Turbine
Price: US $ 50000/Piece
Trade Terms: others
Min Order: 1/Piece
Pay Type: L/C,T/T
Fracis turbine is now most widely used in the world taday with high efficiency, low cost and simple structure.
We have exported 19 francis turbines to other countries outside China to Indonesia, Nepal, Vietnam and Albania etc.

They are advantages of Francis turbine:
1. High efficiency to 95%
2. ISO9001-2008
3. Stable performance of 50 years
4. Easy installation and opertation
5. R&D support


Small hydro turbine generator for power plant
Reaction turbines
Reaction turbines are acted on by water, which changes pressure as it moves through the turbine and gives up its energy. They must be encased to contain the water pressure (or suction), or they must be fully submerged in the water flow.
Newton's third law describes the transfer of energy for reaction turbines.
Most water turbines in use are reaction turbines and are used in low (<30m/98 ft) and medium (30-300m/98984 ft) head applications. In reaction turbine pressure drop occurs in both fixed and moving blades.

Impulse turbines
Impulse turbines change the velocity of a water jet. The jet pushes on the turbine's curved blades which changes the direction of the flow. The resulting change in momentum (impulse) causes a force on the turbine blades. Since the turbine is spinning, the force acts through a distance (work) and the diverted water flow is left with diminished energy.
Prior to hitting the turbine blades, the water's pressure (potential energy) is converted to kinetic energy by a nozzle and focused on the turbine. No pressure change occurs at the turbine blades, and the turbine doesn't require a housing for operation.
Newton's second law describes the transfer of energy for impulse turbines.
Impulse turbines are often used in very high (>300m/984 ft) head applications.



Company brief
1. Water turbine generator

We specialize in water turbine manufacturing for over 40years. The water turbines we supplies severs a wide range of costumers in and out of China.

2. Easy installation & operation

We have a wide range of water turbines for building hydraulic generator systems. It is designed of

Easy installation and operation.

3. High efficacy

The water powder generator can be applied in varies place and environment. Our water turbine is produced with high efficacy via our long years experience of research and development.

4. Oversea project

We have exported water turbine generator sets to


Vietnam— — April, 2007(2*3200KW)

Peru— — November, 2007(2*1250KW)

Burma— — December, 2008(2*400KW)

Burma— — November, 2009(2*200KW)

Albania— — July, 2011(2*1250KW, 1*630KW, 2*400KW)

Indonensia----August, 2012(1X4400KW)

Small hydro power plants

Before you can begin planning your systems or estimating how much power you'll produce, you'll need to make four essential measurements:

1. Head (the vertical distance between your intake and turbine)

2. Flow (how much water comes down the stream)

3. Pipeline (Penstock) length

4. Transmission Line length

In this section, we'll discuss how to make these measurements and how they affect the design and efficiency of your hydro system.




.
  No.   Item   Specification
  1   Brand name   Wa Wu Shan
  2   Frequency   50HZ  60HZ
  3   Installed capacity   50-20000KW
  4   Color   Grey, Green, Yellow, Blue
  5   Synchronous generator   3-phase, AC alternator
  6   Power grid   11KV, 10.5KV, 35KV, 38KV, 65KV
  7   Runner material   ZG0Cr13Ni4Mo
  8   Exported countries   Albania, Turkey, Nepal, Vietnam, Peru...
9   Model number HLA130-WJ-97 SFWE-K-5000KW-8/2150
HLA542-WJ-100 SFWE-K-3200KW-8
HLA575C-WJ-60 SFWE-K-1000KW-6/1180
HLA194-WJ-84 SFWE-K-3200KW-8/1730
HLD50-WJ-57 SFWE-K400-6/850
HLA708A-WJ-53 SFWE-K-400-6/850
HLD307C-WJ-64 SFWE-K1400-6/1180
HLA696-WJ-68 SFWE-K-2500KW-8/1730
HLA253-WJ-71 SFWE-K-3200KW-6/1730

Prod Model: CJ-073
Markets: South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia
Brand: Lida
Frequency: 50Hz/60Hz
Turbine Efficiency: Upto 90%
Generator Efficiency: Upto 93%
Lifespan: 5 Years
Runner Material: Zg0cr13ni4mo
MOQ: 1 Set
Packaging: Export Standard
OEM: Welcome
Hongya Power Generating Equipment to Utilities Limited, is a professional manufacturer of hydro power generating equipments. It has high quality products include mainly water turbine, generator and governor. Water turbines units with an individual capacity of 50kw~20000KW, we have jet turbines, Pelton turbines, Francis Type turbines, and axial turbines. All these products are produced and tested according to national standards, and machinery trade standards. The products have such characters as rational structure, reliable operation, high efficiency, standardized spare parts, high generalization, and convenient maintenance. They are available in every variety and model, and have reliable quality.

Hongya Power Generating Equipment to Utilities Limited has obtained the certification of ISO9001/2008, SGS certificate and is the member of Chinese Society of Electrical Industry. Products are sold all over China and exported to Albania, Nepal, Indonesia, Turkey, Vietnam and Myanma, etc

Stepping into the past and looking forward to the future, we will continuously strengthen the innovation on products and techniques, strictly control the product quality and build up more perfect after-sale service system.
