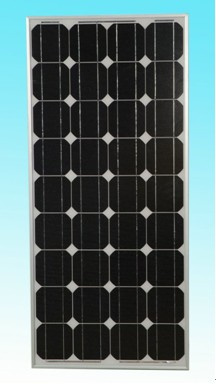

Model(SL90CE-18M)Specifications
Maximum Power(W): 90W
Optimum Power Voltage(Vmp): 16.67V
Optimum Operatige Current(Imp): 5.40A Open Circuit Voltage(Voc): 21.80V
Short Circuit Current(Isc): 5.72A
Solar Cell: 125*125mm Mono
Nmber of Cell(PCS): 4*9
Brand Name of Solar Cells: Yabang Solar
Size of Module(mm): 966*808*35
Front Glass Thikness(mm): 3.2 Tolerance Wattage(e. G. +/-5%): +/-5%
Surface Maximum Load Capacity: 2400Pa
Allowable Hail Load: 23m/s, 7.53G
Weight Per Piece(KG): 10.40
Junction Box Type: Pass the TUV Certificate
Bypass Diode Rating(A): 12
Caple & Connector Type: Pass the TUV Certificate
Cell Efficiency (%): 13.33%
Module Efficiency (%): 11.53%
Frame(Material Corners, etc. ): 40# Backing (Brand Type): TPT
Warranty: 90% of 10 years, 80% of 25 years.
FF (%): 70-76%
Packing: Wooden box
1*20': 24Pallets / 772PCS
1*40'STD: 56 Pallets / 1792PCS
Yabang Solar is the new stratigic branch of YABANG GROUP (ranked top 500 in China of 2009).
Our development stratigy is:
1) in the end of 2009: Set up new plant of 30, 000 sqm to for first beginning 4 automatic production lines of solar modules and expand the capacity of solar water heaters. Now new plant has been set up.
2) in the beginning of 2010: Process with CE, TUV and UL, and get the approval certificate of TUV and CE by the end of May and get the UL by the beginning of 2011
3) By the end of 2010 to set up 10 more production lines for solar modules and 5 more production lines for crystalline cell (most advanced tech to reach efficiency above 19%) and expand our output of solar modules,
4) In the mid of 2010 set up 2 sales branch in Munichi and Sydney. Now our Munichi and Sydney sales branchs are in organizing and will be avaiable in the beginning of June.
5) In the Mid of 2011, set up 3MW on grid the biggest roof system in Jiangsu Province of China as a reference project.
6) in the year of 2011-2012: To expand new production base to 300, 000 sqm for PV solar and set up 3 solar power stations of 3M watt.
7) by the end of 2012: To have 50 production line of solar modules and 10 production of solar cell to reach a capacity of 800MW
8) By 2015, to rank the biggest solar products producers in eastern China.
