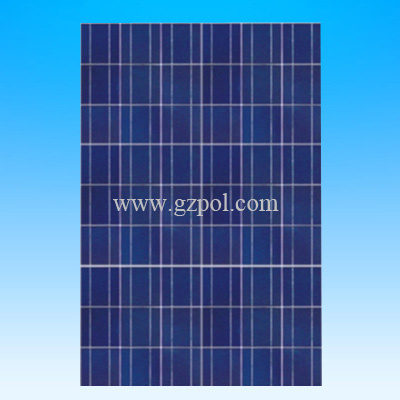

Solar Module
Solar module with high efficiency solar cells.
High-efficiency silicon solar cells, more power in peak hours through cells.
Optimized module performance with nominal voltage 24/18/12V DC.
Bypass diodes to avoid hot-sot effect, solar cells are embedded in a sheet of PET and EVA.
3.2mm high transmission low-iron, tempered glass, unique esthetic appearance of solar cells.
Attractive, stable, heavy duty anodized aluminum frames with convenient mounting-access, for high wind-pressure and snow-load.
The backside frames are equipped with drainage holes. So we eliminate the risk that rain or snow water may accumulate in the frame lumen and freeze or even bend the frame in cold season.
Application:
1 Solar power stations
2 Rural electrification, Small home power systems
3 solar street lights, solar traffic lights, solar garden lights, solar billboard lights and solar car charging systems etc.
4 12V and 24V battery charging system 12V24V
5 Easy Installation and Handing for Other industrial and commercial applications
|
Technical parameters |
|
Model POL-45W |
|
Item |
Value |
Item |
Value |
|
Max power |
45W |
Dimension of solar module |
Poly-crystalline silicon156*156mm |
|
Error of system |
Plus-minus 5% |
Array |
36=2*18 |
|
Working voltage |
17.4 |
Dimension of solar module |
600*680*28mm |
|
Working current |
5.58A |
Weight of solar panel |
5.0kg |
|
Open-circuit voltage |
21.6V |
Grade of protection |
IP65 |
|
Short-circuit current |
2.84A |
Guarantee of quality
|
Max power not less than 90% after attenuation for 10 years; Max power not less than 80% after attenuation for 20 years |
|
Working temperature |
-40 Degree C
to
+85 Degree C |
Ability of
defending damage |
Defend attack from steel ball with 227g by falling free from 1m & 60m/s strong wind |
Max system
voltage |
715V |
Coefficient of power
temperature compensation |
- (0.5 plus-minus 0.05)%/K |
Max protection
current |
10A |
Coefficient of power
temperature compensation |
- (0.5 plus-minus 0.05)%/K |
Condition of
standard test: |
Radiate1000W/m2, temperature25 Degree C, air mass=1.5 |
Coefficient of power
temperature compensation |
- (0.5 plus-minus 0.05)%/K |
GUANGZHOU POEM OF LIGHT ENERGY TECHNOLOGY Co., Ltd(POL) is a high-tech company specilized in R&D, production and sales of wind turbines, solar home systems and this kind of new energy products. POL pools a group of advanced technical personnel in the field of new energy generation. Among them are 5 overseas returnee doctors and masters with many years working experience in this field abroad.
POL has independent R&D centre, regarding independent innovation as lifeline of the enterprise. The company has built the new energy generation solution technical plarform with filtering by high-lights, generation by dim-lights and breeze, energy management and intelligent control as core technology with several technology advanced in the world and proceded in China.
On the basis of the independent R&D, the company promote international co-operation positively; And trace and synchronize international technology development in new energy field through the co-operation to make sure that the company's strategic development direction is right.
The main products of POL include high-efficient Wind turbine, new energy street lamps, home power system and other application products. With our advanced technology platform, POL can provide a lot of new energy power generation solutions for our custommers.
