Pure Water Production Line
Raw water tank → water pump →Silica sand filter →Active carbon filter→ Softener→ Precision filter→Reverse Osmosis→ Ozone generator with Ozone generator→Pure water tank → Filling System(Washing,Filling,Capping 3 in 1+Light Check)→Bottle labeling machine →Bottle packing machine
Mineral Water Production Line
Raw water tank → water pump →Silica sand filter →Active carbon filter→ Softener→ Precision filter→Hollow Filter→ Ozone generator with Ozone generator(UV Sterilizer)→Pure water tank → Filling System(Washing,Filling,Capping 3 in 1+Light Check)→Bottle labeling machine →Bottle packing machine

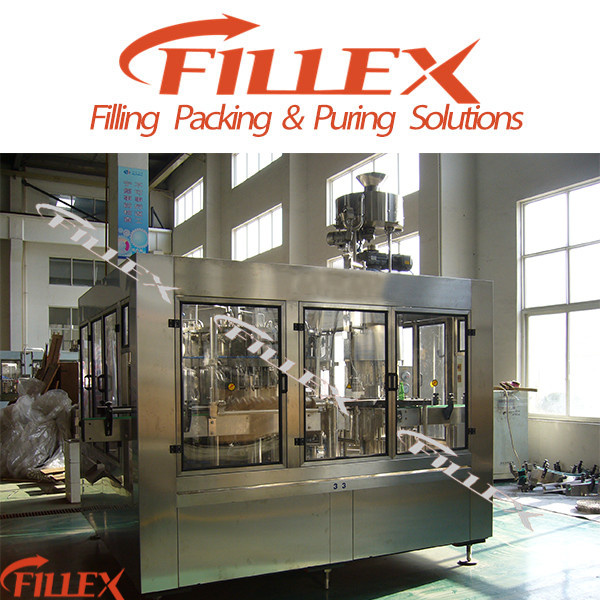

Plastic bottle automatic 3-in-1 drinking water packing machine/Turnkey Project For mineral water line
Model RFC-W series | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 |
Washing-Filling-Capping | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 |
Producing capacity (600ml) | 2000-4000 (bph) | 5000-7000 (bph) | 8000-12000 (bph) | 12000-15000 (bph) | 16000-20000 (bph) | 20000-24000 (bph) | 25000-30000 (bph) |
Applicable bottle (mm) | φ=50-108 H=170-340 330ml-2.25L |
Pressure (kg/cm2) | 2~3 |
Outside vacuum pump power (kw) | Main motor 1.5kw | Main motor 2.2kw | Main motor 3kw | Main motor 4kw | Main motor 7.5kw | Main motor 9.5kw | Main motor 12kw |
Overall dimension (mm)
(LxWxH) | 2100x1400 x2500 | 2460x1720 x2650 | 3100x2100 x2650 | 3500x2500 x2650 | 4600x1800 x2650 | 5200x4500 x3400 | 6500x4500 x3400 |
Weight(kg) | 2500 | 3500 | 4200 | 5500 | 6800 | 7600 | 9800 |
FILLEX is a professional filling, packaging, water treatment solution manufacturer from China with ISO9001: 2000 & CE certification who dedicated to manufacture kinds of filling & packaging equipment & water treatment system for beverage & food field.
Built in 2006, Fillex has 4000 square meters modern standard workshop & 40 professional workers, integrate the R&D department, manufacturing department, technical services department and marketing department together, provide the reliable filling system & water treatment system worldwide.
Fillex Manufacture & Provide below filling & treatment system
--PET Bottle, Glass Bottle, Cans, Cups Filling & Packaging Line(Still water, Carbonated soft drink, Juice, Alcohol, Oil etc)
--1-2 & 3-5 Gallon Jar Bottle Water Plant
--Beverage Filling Line Auxiliary Equipment(Carbonator, UHT Sterilizer, Turned-up Bottle Sterilizer, Spray Cooler&Bottle Warmer, Homogenizer, CIP System etc)
--Bottle, Kind of Container Labeling & Post Packing Solutions
--Water Treatment System(RO Pure Water Purifier, UF Mineral Water Purifier, Brackish & Seawater Desalination Plant, Water Softener)
