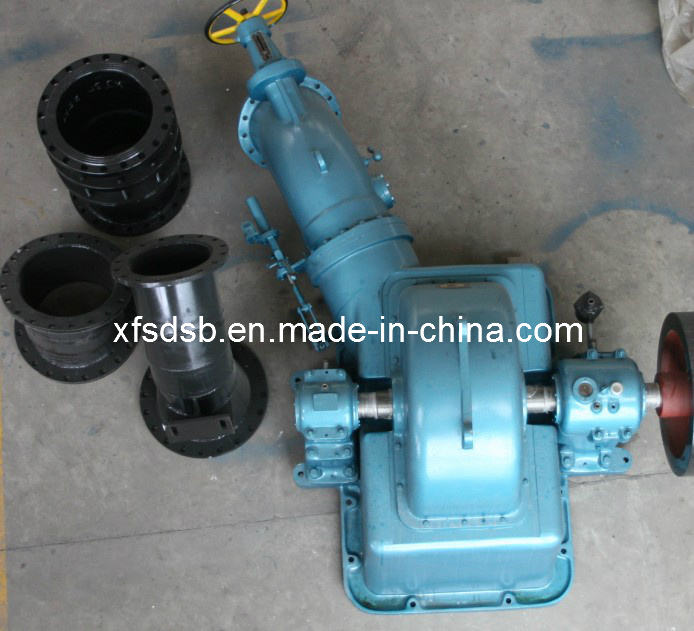

Turgo Hydro (water) Turbine Generator Unit

Turgo Hydro (water) Turbine Generator Unit
Price: US $ 25000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
XJ40 Series Turgo Turbine
Applied Water Head:40~140m
Suitable Discharge:0.2~0.42m3/s
Unit Capacity:50~100KW
Rated Speed:600~1000rpm
Runaway Speed:1.5 * Rated Speed

Turgo turbine is one type of impulse turbine.Its nozzle has a 22.5°angle with the runner rotation surface.The water coming from the penstock is converted into high speed jet by the nozzle, imposing the runner in inclined direction.The water runs in from one side of the blade, running out from the other side, pushing the runner to rotate, the runner then drive the generator through coupler to produce electricity.

Turgo turbine has as simple structure as the pelton turbine, reliable and easy to maintain and manage.Moreover, it has the merit of high specific speed, wide application range, easy to coupling and direct connation to the generator.So, in the recent years, it is well developed and widely used in mountain area.


This turbine is horizontal, single nozzle, impulse type, turgo type turbine.It consists of Main Frame, nozzle mechanics, water inlet, speed regulation and transmission mechanics etc.
Main Parts Assembly includes rotary parts (working parts), bearing parts and casing parts.
The runner of this turbine consists of 20 buckets and internal-external swivel.The bucket is single-curvature surface or semi-sphere shape.The external swivel is mainly to enforce the strength of the runner, and to reduce the energy lose due to wind resistance when the runner runs in the air.The runner is attached to the main shaft with parallel key.The flywheel and the coupler is made into a single piece.Using a 1:15 taper ratio to join to the shaft extension end, transmit the torque by the parallel key.The purpose of the flywheel is to increase the moment of inertia of the unit and stability.The water splashing ring can stop the water overflow axially.

Prod Model: XJA-W-70/1X12
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Turbine Generator: Turgo
HUNAN XUEFENG MECHANICAL AND ELECTRICAL EQUIPMENT MANUFACTURE Co., Ltd
A profesional hydro turbine generator unit manufacturer and auxiliary control equipment supplier, provider one stop, custom tailored solution for 100KW to 50MW mini hydropower plant.
Found in 1957, developed more than 50 year history producing hydraulic turbine generator units.
China National Water Resource and Hydro Power Ministry (CNWRHM) designated production factory of hydraulic turbine generator manufacturer.
Located in new industry area of Dongkou county, provincial industry park of Hunan, Easy transportation access to G60 Hu Kun Highway.
New moden production facilite, 48000 m2 workshop, total 86000 m2 factory.

Work team consists of over 620 workers, including 4 professor level senior engineers, 15 senior engineers, over 60 technicians with intermediate title and technician with long time experience in hydropower equipments manufacture, installation and commission.

One of the largest professional hydro turbine generator equipment manufacturers in Hunan province, with leading capacity in design, production, test and installation commission.

Equipped with over 20 professional numerical controlled processing equipments and over 200 mechanical machining, heat treatment, assembly, test and inspection equipments.Our company can produce Francis, Kaplan, Pelton, Turgo and Tubular turbine generator with unit capacity under 50MW, and 4 meter runner diameter.

Our company had been rated as "Credible Contract Abiding Company" for continuous years."Xuefeng" brand is honored as provincial "Famous Brand" and our products are credited as "Brand Product".Our company is certificated by ISO9001-2008 quality management system and CE of European Union.
Our company is a member company with long time technical cooperation and research with China Institute of Water Resource and Hydropower Research and Harbin Electric Group, etc.
Our company has independent import and export operation right.Our products are widely sold through out the country and exported to Albania, Democratic Republic Congo, Chile, Kazakhstan, Mongolia, North Korea, Philippine, India, Burma, Vietnam, Italy, Australia and Lithuania etc.With good comments from the customers.

Basit project parameter required, upon placing order:
1.Net Water Head (m)
2.Unit Discharge (m³/s)
3.Total Discharge (m³/s)
4.Number of Unit
5.Generator Voltage (V)
6.Generator Frequency (V)
7.Grid Voltage
8.Scope of Supply.
