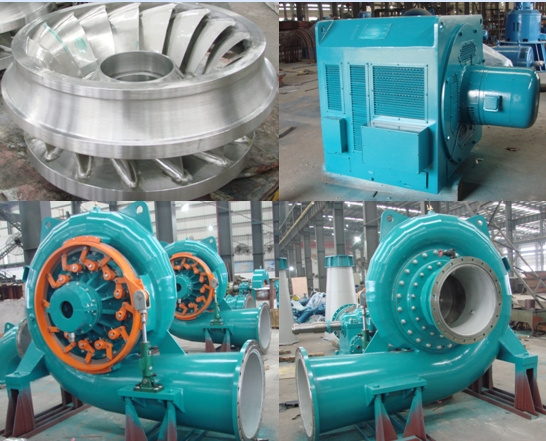

Turbine in High Quality/ Ftancis Turbine/ Synchronizing Generator

Product Description
We mainly supply Hydraulic turbines system, such as Kaplan Turbine, Propeller turbine, Francis Turbine and Pelton Turbine, Turgo Turbine, Tubular turbine and so on, also with Speed Governor, Generator, Valves, Excitation system, control panels and its other accessories.
1. Francis turbine
Francis turbines are the most common water turbine in use today, they are mostly suitable for hydro-power stations with medium or high head.
The Francis type turbines manufactured by the Fuchun are compact in structure, reasonable in design, convenient in operation and maintenance and excellent in efficiency. They are in both vertical and horizontal shaft arrangement. With many years of our own experience and absorbing advanced technology from domestic and abroad sources, and in meeting ever growing requirements of stations for various hydraulic power resources, the manufacture and design level of Francis turbines made in Fuchun has been raised to new stages.
2. Impulse type turbine
The impulse type turbines are the best election for high head and small discharge hydraulic power resources. They have compact structure, small size, high efficiency and need fewer investments. They have been divided into Turgo and Pelton.
Pelton turbine also called a free-jet turbine or Pelton wheel. It needn't draft tube, spiral case and complex distributor, the construction is simple, maintenance and management is convenient. It is favorable for power plant with high water head and long diversion steel pipe. Its operation is reliable and no damage to the environment.
Turgo turbine or called inclined-jet impulse turbine. Its nozzle make the angle of 22.5° With the rotating plane of the runner.
Turgo turbine has higher specific speed, wide range of application as well as easy match directive driving generator, except simple of construction, reliable operation, convenience in operation and maintenance etc.
The impulse type turbines made by Fuchun are ranging from 60 to 2, 000m in water head, 100kW to 20MW in capacity and 0.55 to 3 in runner diameter. Theirs shaft arrangements are either vertical or horizontal and they may have single nozzle, twin or multi-nozzles.

3. Axial flow turbine
The axial flow turbine is an inward flow reaction turbine. The axial-flow turbine can be classified into two forms according to the runner construction: Fixed blades (Propeller) for small and medium capacity, small variation of head and power, the other is adjustable blades (Kaplan) for large and medium capacity, large variation of head and power.
The axial flow type turbines manufactured by the Fuchun are ranging from 3to 45m in water head, 100kW to 30MW in capacity and 0.8 to 6m in runner diameter.
4. Tubular turbine
The tubular turbine requires less space than other turbines, a saving in civil cost is realized due to a smaller powerhouse and shallow requirements for the draft tube. The tubular turbines are the best selection for exploitation of tidal power and hydraulic power with extremely low head and extremely large flow rate. They have large discharge, high specific and high efficiency, and need less excavation.
They have been classified into Bulb, Pit, Siphon and "S" types in the light of their structural types.


Company Information
Our company is an experienced manufacture and engineering Company in small scale hydro power equipment ( 100Kw to 50Mw). We play the role of manufacture and EPC contractor and could supply water to wire equipments and services. As turbine manufacture more than 50 years experience.
Our factory occupies 560, 000 square meters of land, which includes 18 workshops, over 320 sets of heavy and precision producing and testing machinery; Scientific research development center in the southern China, and various testing facilities. We have a general technical staff of 380 and 135 senior technical professionals.
