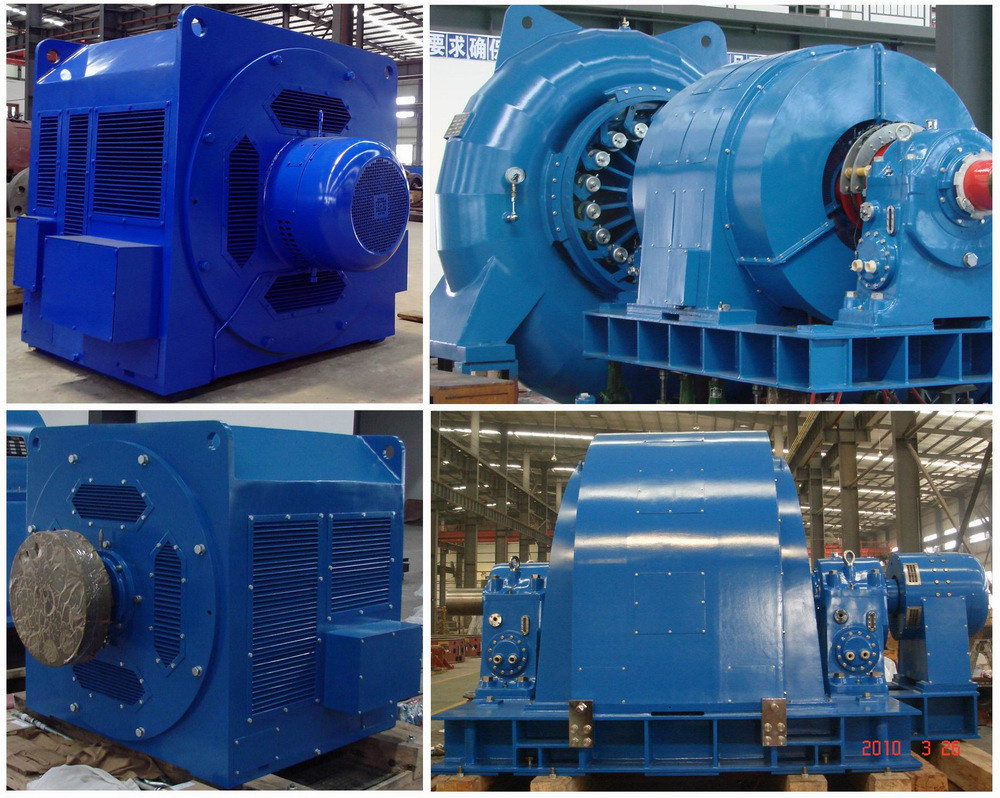

Turbine Generator for Hydro Power Plant and Water Turbine
Price: |
Negotiable/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P |
Turbine Generator For Hydro Power Plant And Water TurbineThe main parameters:
1. Rated power: the capacity of the generator(Watt/ Kilowatt / Megawatt )
2. Rated voltage: the outgoing line voltage of generator
3. Power factor: the ratio of generator rated active power and rated apparent power.
4. Frequency: 50HZ or 60HZ
5. Shaft type: Vertical or horizontal shaft
The water turbine generator made by Fuchun are ranging from 50KW to 50MW.The rated voltage is 380V,400V,415V,440V,3300V,6300V,10500V,ect.The power factor is 0.8~0.95.
Any other sizes are available according to customers' special requests.

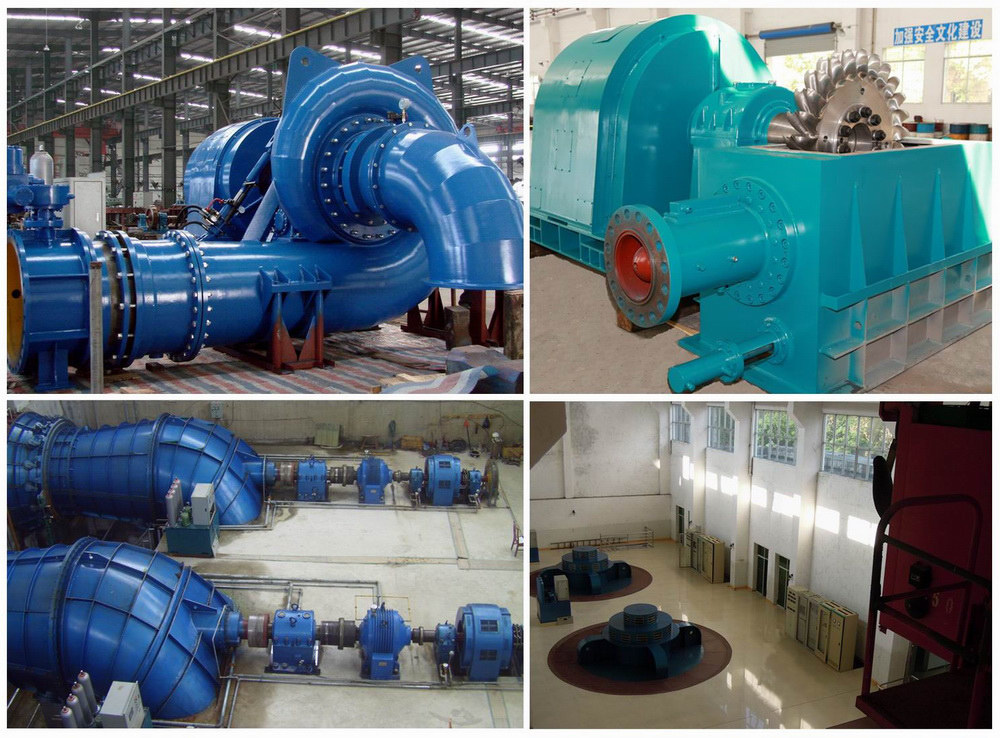

Matching turbine :
Francis turbine,Kaplan Turbine, Pelton turbine,Turgo turbine,Tubular turbine,ect.
Quick detail:Output Power:100Kw to 50MwRate Head: 2m-1200m
Type: Francis, Pelton, Turgo, Kaplan, Tubular Place of Origin: China (Mainland)
Rated Head: 2~1200m
Rated power: 50KW~50MW
Frequency: 50HZ or 60HZ
Voltage: 380V,400V,440V,3.3KV,6.3KV,6.6KV,10.5KV,ect.
Material: stainless steel
Our serviceFuchun Industry Development Co., ltd Shenzhe is an experienced manufacture and engineering Company in small scale hydro power equipment ( 50Kw to 50Mw). We play the role of manufacture and EPC contractor and could supply water to wire equipments and services.
We provide customers with the complete package, from the design and manufacture of the turbine, generator and control equipment through to installation, commissioning and ongoing repair and maintenance.
1.Water Turbine Generator Unit Design & SUPPLY
2.Hydropower equipment supply
3.Feasibility study of hydropower project
4.Manufacture
5.Installation & Supervision
6.Commissioning and Training service
7. Hydro power plant rehabilitant
8. Hydro power plant spares supply
9.Services
Reference List of Some Export Projects |
No. |
Country and Power Station Exported to |
Technical Parameters |
Type |
Qty |
Date of contract |
1 |
HPP2
Guatemala |
Rated head:305m
Rated flow:0.385m³/s
Frequency:60Hz
Outgoing line voltage:480V |
CJA475-W-80/2×6.5
SFW1000-8/1180 |
1 |
2013.06 |
2 |
Pakistan |
Type:HL855a
Runner diameter:1750mm |
27Mw spare runners |
1 |
2013.06 |
3 |
UK |
Rated head:73.8m
Rated flow:0.1325m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA237-W-55/1×7 |
1 |
2013.03 |
4 |
turkey |
Rated head:203m
Rated flow:0.312m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA237-W-80/1×8.5
SFW500-8/990 |
1 |
2013.05 |
5 |
Sri Lanka |
Rated head:88m
Rated flow:1.41m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HLA550-WJ-62
SFW1000-6/1180 |
1 |
2013.05 |
6 |
Congo |
Rated head:210m
Rated flow:0.423m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA237-W-80/1×9.5
SFW700-8/1180 |
1 |
2013.05 |
7 |
Ecuador |
Rated head:925m
Rated flow:0.26m³/s
Frequency:60Hz
Outgoing line voltage:4.16KV |
CJC601-W-100/1×5
SFW1980-6/1430 |
2 |
2012.12 |
8 |
Philippines |
Rated head:4m
Rated flow:10m³/s
Frequency:60Hz
Outgoing line voltage:440V |
ZD-LH-160
SF320-36/2150 |
1 |
2012.12 |
9 |
Guatemala |
Rated head:128m
Rated flow:0.6+0.3m³/s
Frequency:60Hz
Outgoing line voltage:440V |
CJA475-W-80/2×9
SFW614-12/1180
CJA475-W-80/2×6.5
SFW302-12/990 |
2 |
2012.11 |
10 |
UK |
Rated head:48.51m
Rated flow:0.351m³/s
Frequency:50Hz
Outgoing line voltage:400V |
XJA-W-55B/1x8.5 |
1 |
2012.11 |
11 |
UK |
Rated head:47.48m
Rated flow:0.38m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HL110-WJ-42 |
1 |
2012.11 |
12 |
UK |
Rated head:25.44m
Rated flow:0.332m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HLD54-WJ-50 |
1 |
2012.11 |
13 |
UK |
Rated head:35.19m
Rated flow:0.3m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HLD54-WJ-50 |
1 |
2012.11 |
14 |
UK |
Rated head:37.82m
Rated flow:0.291m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HLD54-WJ-50 |
1 |
2012.11 |
15 |
HPP1
Guatemala |
Rated head:60m
Rated flow:1.24m³/s
Frequency:60Hz
Outgoing line voltage:440V |
HLA575c-WJ-56
SFW600-8/990 |
2 |
2012.8 |
16 |
UK |
Rated head:58.1m
Rated flow:0.169m³/s
Frequency:50Hz
Outgoing line voltage:400V |
XJA-W-40/1×9
SFW100-8/590 |
1 |
2012.04 |
17 |
Ecuador |
Rated head:38m
Rated flow:1.64m³/s
Frequency:60Hz
Outgoing line voltage:440V |
HL220-WJ-50
SFW470-8/990 |
1 |
2012.04 |
18 |
Italy |
Rated head:43m
Rated flow:0.59m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HL110-WJ-42
HLD54-WJ-40 |
2 |
2012.03 |
19 |
Pakistan |
Type:HL855a
Runner diameter:1750mm |
27Mw spare runners |
3 |
2011.11 |
20 |
ITALY |
Rated head:134m
Rated flow:0.25m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA475-W-80/2×6.5
SFW250-10/850 |
2 |
2011.06 |
21 |
Italy |
Rated head:228m
Rated flow:0.4m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA475-W-85/1×9.5
SFW715-8/1180 |
3 |
2011.05 |
22 |
UK |
Rated head:61.8m
Rated flow:0.221m³/s
Frequency:50Hz
Outgoing line voltage:400V |
XJA-W-42/1×10
SFW100-8/590 |
1 |
2011.03 |
23 |
HPP1
Albania |
Rated head:379.7m
Rated flow:0.685m³/s
Frequency:50Hz
Outgoing line voltage:10.5KV |
CJA475-W-105/2×7.5
SFW2150-8/1730 |
1 |
2010.12 |
24 |
HPP2
Albania |
Rated head:461.6m
Rated flow:0.786m³/s
Frequency:50Hz
Outgoing line voltage:10.5KV |
CJA475-W-115/2×8
SFW3000-8/1730 |
1 |
2010.12 |
25 |
Italy |
Rated head:29m
Rated flow:3.2m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HLD41-WJ-42
HLD74-WJ-60 |
2 |
2010.12 |
26 |
Afghanistan |
Rated head:36m
Rated flow:1.67m³/s
Frequency:50Hz
Outgoing line voltage:400V |
HL295-LJZ-50
SF500--6/850 |
5 |
2010.12 |
27 |
Pakistan |
Rated head:206m
Rated flow:0.89m³/s
Frequency:50Hz
Outgoing line voltage:6.6kV |
CJA475-W-100/2×10
SFW1500-10/1430 |
2 |
2010.08 |
28 |
HPP1
Vietnam |
Rated head:385m
Rated flow:11.24m³/s
Frequency:50Hz
Outgoing line voltage:13.8kV |
HL69-LJ-205
SF37500-10/3600 |
2 |
2010.02 |
29 |
Mozambique |
Rated head:206.8m
Rated flow:0.358m³/s
Frequency:50Hz
Outgoing line voltage:400V |
CJA237-W-80/1×9
SFW570-8/990 |
1 |
2010.04 |
30 |
Pakistan |
Rated head:47.5m
Rated flow:2.62m³/s
Frequency:50Hz
Outgoing line voltage:6.6kV |
HLA696-WJ-68
SFW1000-8/1180 |
3 |
2010.03 |
31 |
Italy |
Rated head:35m
Rated flow:4.25m³/s
Frequency:50Hz |
HLA696-WJ-82
SFW800-12/1430
HLJF2504-WJ-56
SFW400-8/990 |
3 |
2010.01 |
32 |
Italy |
Rated head:265m
Rated flow:0.734m³/s
Frequency:50Hz
Outgoing line voltage:6.3kV |
CJA475-W-110/2×8.5
SFW1600-10/1730 |
2 |
2009.07 |
33 |
Georgia |
Rated head:289m
Rated flow:1.775m³/s
Nozzle No.:2
Bucket No.: 20
Runner Outer Diameter: 1600mm
RUNNER DIAMETER: 1300mm |
4000KW Pelton runner change |
3 |
2009.06 |
34 |
Vietnam |
Rated head:86.2m
Rated flow:22.5m³/s
Frequency:50Hz
Outgoing line voltage:10.5kV |
HLA883-LJ-155
SF17000-12/3250 |
2 |
2009.01 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Turbine Type: |
Francis / Pelton / Kaplan / Tubular / Turgo |
Shaft Type: |
Horizontal / Vertical |
Material: |
Stainless Steel |
Founded in 1978, Fuchun Industry Development Co., Ltd was moved to Shenzhen in 1998. In 2005, in the process of state-owned enterprise reform, our company has conglomeration and merger with GANZHOU COMPLETE SETS OF POWER GENERATING EQUIPMENTS MANUFACTURE Co., Ltd, dealing with all export projects, especially Complete Sets of Power Generating Equipments including design, manufacture, and installation and operation supervision, training.
Our factory has over 60 years experience in hydro power equipment manufacturing activities. We continue to hold the Fuchun's philosophy-adding product value, keeping good quality and providing good service.
Nowadays the company's business not only engages in manufacturing of small power equipment, but also covers engineering, design, procurement and construction of small and medium size hydro power plants (10kw-50MW) and coal-fired (biomass) power plants (200kw-25MW). We either wholly own or jointly own with other partners to have invested several factories in the power equipment industry, such as Jiangxi Ganzhou etc. We also dealing with small wind power generator and solar power plants, power substations, supply of power related equipment and machines of boiler, fan, pump, environment equipment (smoke flux treatment, water treatment), coal excavation facilities, dust and slag handling equipment, thermal power generation turbines, driving turbines, hydro turbines, wind turbines, generators, transformers, power cables, weight scales, cranes, bull dozers, analysis facilities and so on. Our company is also willing to take the contract of small and medium power generation factory consulting business because we have strong technical force of engineers and technicians.
In 30 years of the company history, we designed and manufactured a large mount of hydro turbine generators, not only for domestic China but also export to more than 30 counties, such as Guatemala, Ecuador, Congo, Pakistan, USA, Canada, Cuba, Germany, Austria, Turkey, North Korea, Viet Nam, Burma, Nepal, Norway, Denmark, Belgium, Uruguay, Russia, Georgia, Bulgaria, Bhutan, France, UK, Italy, etc.
Our company sincerely welcomes all clients, partners, and friends from all over the world to contact us for business co-operation. We believe that our efforts will bring you and us a win-win situation.
