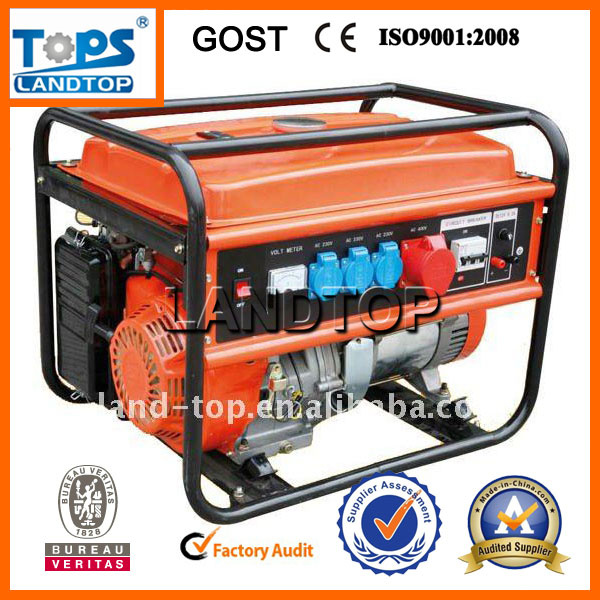

LTP gasoline generator
Advantage:
1. Low fuel consumption
2. Easy operation & portable
3. Low noise & high efficiency
4. CE & ISO9001 approve
5. A compact structure and light portable power is convenient for recreation, emergency or home use, etc.
Note:
For details or special requirements, plesase feel free to contact us.
| MODEL | LTP950 | LTP1200 | LTP1300 | MODEL | LTP1500 | LTP1800 | LTP2500 | |
| Generator | Rated AC Voltage(V) | 110/120/220/230/240 | Generator | Rated AC Voltage(V) | 110/120/220/230/240 | |
| Frequency(HZ) | 50/60 | 50/60 | 50/60 | Frequency(HZ) | 50/60 | 50/60 | 50/60 | |
| Rated Power(W) | 500 | 800 | 900 | Rated Power(KW) | 1500 | 1.8 | 2.3 | |
| Max Power(W) | 650 | 750 | 800 | Max Power(KW) | 1200 | 1.5 | 2 | |
| Engine | Model | IE45 | IE45 | IE45 | Rated Current(A) | 5.4 | 6.8 | 9.1 | |
| Type | Single cylinder,2-stroke, force air cooled | DC. Output | 12V/8.3A | 12V/8.3A | 12V/8.3A | |
| Ignition system | Capacitor Discharge Ignition(C.D.I) | Engine | Model | LTP168F | LTP168F | LTP168F-1 | |
| Starting system | Recoil Starting | Max Output(HP) | 5.5 | 5.5 | 6.5 | |
| Lubricating system | Pre-mixed fuel (50:1) | Type | Single cylinder,4-stroke, force air cooled | |
| Fuel Tank(L) | 4 | 4 | 4 | Ignition system | Non-conract transistorized ignition(T.C.I) | |
| Continuous work(h) | 6 | 6 | 63 | Starting system | Recoil Starting | |
| Displacement(cc) | 63 | 63 | | Oil Capacitor | 0.6 | 0.6 | 0.6 | |
| Package | Dimension L×W×H (mm) | 380x330x330 | 380x330x330 | 380x330x330 | Fuel Tank(L) | 12 | 12 | 12 | |
| N.W.(KG) | 18 | 21 | 21 | Fuel | Unleaded Gasoline | |
| 20'FCL(pcs) | 750 | 750 | 750 | Noise Level(at 7m) | 64db | 64db | 65db | |
| | | | | | Displacement(cc) | 163 | 163 | 196 | |
| | | | | | Package | Dimension L×W×H (mm) | 580*445*475 | 580*445*475 | 580*445*475 | |
| | | | | | G.W.(KG) | 40 | 41 | 43.5 | |
| | | | | | 20'FCL(pcs) | 208 | 208 | 208 | |
| MODEL | LTP3500 | LTP4500 | LTP4500E | MODEL | LTP5500 | LTP5500E | LTP6500 | LTP6500E |
| Generator | Rated AC Voltage(V) | 110/120/220/230/240 | Generator | Rated AC Voltage(V) | | | | |
| Frequency(HZ) | 50/60 | 50/60 | 50/60 | Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 |
| Rated Power(KW) | 2.7 | 3.8 | 3.8 | Rated Power(KW) | 4.4 | 4.4 | 5.5 | 5.5 |
| Max Power(KW) | 2.5 | 3.5 | 3.5 | Max Power(KW) | 4 | 4 | 5 | 5 |
| Rated Current(A) | 11.4 | 15.9 | 15.9 | Rated Current(A) | 18.2 | 18.2 | 22.7 | 22.7 |
| DC. Output | 12V/8.3A | 12V/8.3A | 12V/8.3A | DC. Output | 12V/8.3A | 12V/8.3A | 12V/8.3A | 12V/8.3A |
| Engine | Model | LTP168F-1 | LTP177F | LTP177F | Engine | Model | LTP188F | LTP188F | LTP188F | LTP188F |
| Max Output(HP) | 6.5 | 9 | 9 | Max Output(HP) | 13 | 13 | 13 | 13 |
| Type | Single cylinder,4-stroke, force air cooled | Type | Single cylinder,4-stroke, force air cooled |
| Ignition system | Non-conract transistorized ignition(T.C.I) | Ignition system | Non-conract transistorized ignition(T.C.I) |
| Starting system | Recoil , Electric | Starting system | Recoil , Electric |
| Oil Capacitor | 0.6 | 1.1 | 1.1 | Oil Capacitor | 1.1 | 1.1 | 1.1 | 1.1 |
| Fuel Tank(L) | 12 | 17 | 17 | Fuel Tank(L) | 17 | 17 | 17 | 17 |
| Fuel | Unleaded Gasoline | Fuel | | | | |
| Noise Level(at 7m) | 65db | 70db | 71db | Noise Level(at 7m) | 71db | 74db | 71db | 74db |
| Continuous work(h) | 11h | 9h | 9h | Continuous work(h) | | | 8h | |
| Displacement(cc) | 196 | 270 | 270 | Displacement(cc) | 389 | 389 | 389 | 389 |
| Package | Dimension L×W×H (mm) | 610*445*475 | 680*530*540 | 680*530*540 | Package | Dimension L×W×H (mm) | 680*530*540 | 680*530*540 | 680*530*540 | 680*530*540 |
| G.W.(KG) | 46.5 | 70 | 757 | G.W.(KG) | 73 | 81 | 78 | 85 |
| 20'FCL(pcs) | 200 | 150 | 150 | 20'FCL(pcs) | 150 | 150 | 150 | 150 |
LANDTOP GROUP is specialized in manufacturing and exporting a wide range of electromechanical products, covering Alternators, Generators, Electric Motors, Water Pumps, etc.
With years of development, LANDTOP has developed into a large-scale, modern, comprehensive and international company. Our sales department is located in Fuzhou City (Fuzhou Landtop Co., Ltd. ), a sea-port city, enjoying convenient transportation network. We also have our own factory in Fu'an City (Fu'an Landtop Power Co., Ltd. ). Our international center is located in Hongkong(Hongkong Landtop Group Ltd. ). Our group is equipped with a great number of precise assemble lines, integrated testing systems and checkout equipment. We have professional engineers, skilled QC members, experienced salesmen and the best after-sales services. The current annual export production value is over 15 million US dollars.
We are always making great efforts to achieve the integration of manufacture and sale. We are able to meet our customers' demands, providing them with superior quality products. Our products, owing to reasonable price, high efficiency and energy saving performance, are widely praised by clients in over 80 countries and regions, such as Europe, America, Southeast Asia, the Middle East, Africa, etc.
Professional R&D system, standard technology, a skilled QC team and the best management group can offer you firm guarantee. Our group is continuously making arduous efforts on innovation to better serve our customers. We ensure that our cooperation will bring a win-win benefit to both of us.
