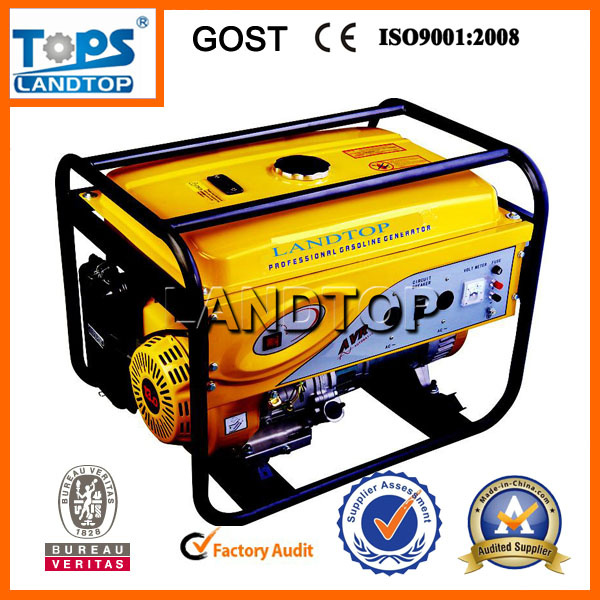

TOPS 950 Series Gasoline Generator 1500s

TOPS 950 Series Gasoline Generator 1500s
Price: US $ 80-300/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: L/C,T/T
Gasoline generator specifications:
Engine: ZL168F, 5.5HP
Engine mode: OHV, tilt, single cylinder, forced air cooling, 4-stroke
Displacement (CC): 163
Rated power: 1.5KW
Igniting mode: T. C. I.
Starting mode: Recoil start
Fuel volume (L): 15
Fuel consumption (L/hr): 0.92
Continuing working time (hr): 16
Oil volume (L): 0.6
Noise (Away from 7m)(bd): 63

Alternator:
Rated frequency (Hz): 50/60
Rated voltage (V): 110/220/230/240
Rated output: 1.3kw/50Hz, 1.5kw/60Hz
Maximum output: 1.5kw/50Hz, 1.8kw/60Hz

Generator set
Dimensions (mm): 610*445*480
Net weight(kg): 40.5

Usual Accessory: Large size muffler, large size air filter, fuel gauge, voltmeter, Automatic voltage regulator, oil alarm system, non-fuse breaker.

Optional accessory: Four wheel vehicle set.
GeneratorRating frequency(Hz)5060
Rating Voltage(V)110/120/220/230/240
Rating power(KVA)1.0
The Max.power(KVA)1.1
Power factor(cos)1.0
EngineType154F
CategorySingle crock,Force air-cooled four-stroke,top-installed gasoline engine
Exclusion of cylinder(cm3)87
The Max.output power(KW/rpm)2.2/3600
Ignition systemTransistorized magneto
Start systemRecoil
Capacity of fuel tank(L)6.0
Consumption of fuel(L/h)0.63
Consecutive Working(h)9
Noise(at7m)(dB)62
 Capacity of engine oil0.4
DimensionSet dimension(mm3)440×365×365
Net weight(kg)32

Prod Model: 650w gasoline generator
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification: CE ISO9001
AC Voltage: 220V
Protect Feature: IP44
Start System: Recoil Starter
Efficiency: Ie 1
Speed: 1500RM
Use: Generating for Home, Shop, Camp etc
Warranty: 1 Year
Crankcase: Magnesium Alloy
Output Type: AC Single Phase
