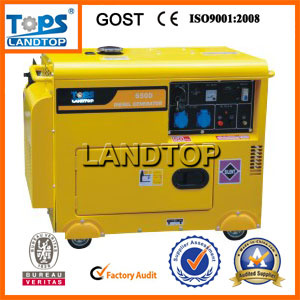

TOPS Air-Cooled Diesel Generator
Rated Frequency(Hz): 50
Rated output(kVA): 4.8
Max. Output(kVA): 5
Rated voltage(V): 115/230
Rated current(A): 74/37
Rated rotation speed(rpm): 3000
Phase NO.: Single phase
Power factor: 1
Insulation grade: H
Pole number: 4
Excitation mode: Self-excitation and constant voltage(AVR)
Panel Type: General Panel
Output Voltage V: 115/230
Receptacle: Two single phase receptacles
Connection pole: With
DC12V output: Without
Overall dimension: L*W*H(mm): 980*720*860
Dry weight(Kg): 180
Working assorting weight(Kg): 208
Noise level(7m)dB(A): 77
Structure type: Open
| Model | LTP2500 | LTP4500 | LTP5500 | LTP5500-3 |
| Engine model | LTP170F | LTP178F | LTP186F | LTP186F |
| Rated frequency(HZ) | 50hz, 60hz, 50/60hz |
| Rated output(KW) | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 4.2 | 5 |
| Rated voltage(V) | 220,230,240,110/220,115/230,120/240, etc |
| Rated current(A) | 7.4 | 8.3/16.7 | 12.2 | 13.8/27.5 | 18.3 | 20.8/41.7 | 7.2 | 8.3 |
| Engine speed(r/min) | 3000/3600 |
| Consumption(g.kw/h) | 282 | 282.3 | 273.5 | | 273.5 |
| Exi\citation system | Controllable self-excitation and constant voltage |
| Structure | Open frame type cart type | | | | | Cart type |
| N.W.(KG) | 53 | 65 | 92 | 92 |
| Dimension(mm) | 620*460*520 | 620*460*520 | 720*480*610 | 720*480*600 |
| Model | LTP4000 | LTP5000 | LTP6000/6800 | LTP5000-3 |
| Rated voltage(V) | 220,230,240,110/220,115/230,120/240, etc |
| Rated frequency(HZ) | 50hz, 60hz |
| Rated output(KW) | 2.7 | 3 | 4.2 | 4.6 | 4.6 | 5 | 4.2 | 4.6 |
| Max. output | 3 | 3.3 | 4.6 | 5 | 5 | 5.5 | 4.6 | 5.5 |
| Powe factor | 1 | 1 | 1 | 0.8 |
| DC output | 12V/8.3A | 12V/8.3A | 12V/8.3A | 12V/8.3A |
| Engine model | LTP178F(E) | LTP186F(E) | LTP186A(E) | LTP186F(E) |
| Engine type | Single cylinder,4 stroke, air cooled |
| Displacement(cc) | 305 | 418 | 418 | 418 |
| Starting system | Electric start | Electric start | Electric start | Electric start |
| Max. output(hp/rpm) | 6.7/3000 | 10/3000 | 10/3000 | 10/3000 |
| Fuel tank capacity(L) | 16 | 16 | 16 | 16 |
| Continuous work(h) | 10.8 | 7.3 | 7.3 | 7.3 |
| Noise level LWA(db) | 89 | 89 | 89 | 89 |
| Dimension(mm) | 875*575*865 | 940*575*750 | 940*575*750 | 940*575*750 |
| G.W.(KG) | 150 | 185 | 185 | 185 |
| 20' FCL | 76 | 72 | 72 | 72 |
| 40'FCL | 152 | 144 | 144 | 144 |
Try us, our top priority is you!
LANDTOP GROUP is specialized in manufacturing and exporting a wide range of electromechanical products, covering Alternators, Generators, Electric Motors, Water Pumps, etc.
With years of development, LANDTOP has developed into a large-scale, modern, comprehensive and international company. Our sales department is located in Fuzhou City (Fuzhou Landtop Co., Ltd. ), a sea-port city, enjoying convenient transportation network. We also have our own factory in Fu'an City (Fu'an Landtop Power Co., Ltd. ). Our international center is located in Hongkong(Hongkong Landtop Group Ltd. ). Our group is equipped with a great number of precise assemble lines, integrated testing systems and checkout equipment. We have professional engineers, skilled QC members, experienced salesmen and the best after-sales services. The current annual export production value is over 15 million US dollars.
We are always making great efforts to achieve the integration of manufacture and sale. We are able to meet our customers' demands, providing them with superior quality products. Our products, owing to reasonable price, high efficiency and energy saving performance, are widely praised by clients in over 80 countries and regions, such as Europe, America, Southeast Asia, the Middle East, Africa, etc.
Professional R&D system, standard technology, a skilled QC team and the best management group can offer you firm guarantee. Our group is continuously making arduous efforts on innovation to better serve our customers. We ensure that our cooperation will bring a win-win benefit to both of us.
