Top Supplier Cummins Silent 50kw Generator (GDC63*S)

Top Supplier Cummins Silent 50kW Generator (GDC63*S)

Basic Info.
Model No.:GDC63*S
Export Markets: Global
Additional Info.
Trademark: Godlike
Packing: In Strong Plywood
Standard: ISO9001
Origin: China
Production Capacity: 8000 Sets/Year
Product Description

Specifications
1) Cummins engine, Stamford/Marathon/Leroy somer generator
2) Prime Power: 50 kw, Voltage: 230/400V,
4) Certificate: ISO90001/ ISO14001/CE
5) 12 months warranty
We have got through the international quality certification system of ISO9001-2000, International environmental protection certification of ISO 14001: 2004, China Compulsory Certification and CE certification.

1. Technical parameters of Engine:
Producer: CumminsPower: 750kw Power factor: 0.8Governor way: Mechanical Insulation: HProtection: IP23Fuel: 0 light diesel
Intake way: Normally AspiratedRated output Voltage: 380/440V(optional)Rated Frequency(Hz): 50/60(optional)Rated speed: 1500r/mVoltage Control: AVRSoundproof Canopy(the color of the canopy can be changed)Norminal ambient condition of genset: Sea level elevation of 1500m, ambient temperature of 40 Celsius degree.

2. Technical parameters of Alternator:
Brand: Stamford/Marathon/Leroy Somer(Optional)Frequency fluctuation: ≤ ± 0.5%Frequency regulation: ≤ ± 0.5%(stable)Voltage Setting Range: ≥ ± 5%Temperature Rise: HClass of Insulation: HGrade of Protection: IP22Efficiency: 93.60%Electromagnetism Interference Factor: THF<2%, TIF<50Steady Voltage Regulation Factor: ≤ ± 1.0%

3. Technical parameters of Control Panel:
Brand: Smartgen/Upwin/Deepsea(Optional)Start or stop generator set Manually/AutomaticallyGenerator over/under frequency protectionOpen controller output can be defined as Pre-heat/Idle outputGenerator over/under/unbalance voltage protectionHigh coolant temperature protectionOver speed protectionLow oil pressure protectionOver current protectionOver load protectionAvailable for remote controlNote: Indicate this function depeed on the set points of the controller in field.

INSPECTION AND TEST
1 GENERAL
1.1 Each engine shall be tested at manufacturers workshop to certify the engine output and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
1.3 The engine and generator shall be tested separately in accordance with relevant standards specified above.
1.4 The completed and individually tested engine and generator shall be assembled onto the baseplate with all auxiliaries, instruments and controls for a complete test of the generator set.

Product line
1. Open type gensets.
2. Silent type gensets.
3. Trailer mounted gensets.
4. Enviromental protection and noise reduction project

Technical data
Genset Model	GDC63*S
Genset Output Power	50KW
Rated Voltage	415V
Frequency	50Hz
Power Factor(COS)	0.8(lagging)
Dimension (L×W×H) (mm)	2400×1100×1700
Net weight (kg)	930
Diesel Engine
Brand	DCEC Cummins
Model	4BTA3.9-G2
Engine Structure	In line 4 cylinder, 4 stroke, turbocharged
Rotating Speed	1500r/min
Engine Cooling Method	Radiator for ambient temp 40OC, belt driven cooling fan with cover
Governor System	Precise electrical governor system
Starting Method	24V DC, with Silicon commutating charging motor
Engine Filter System	Dry type air filter, fuel filter, oil filter
Displacement(L)	3.9
Compression Ratio	16.51
Bore×Stroke(mm)	102×120
100% load fuel consumption (L/h)	12.6
Lube capacity(L)	16.4
Alternator
Brand	Kaijieli(China-French joint venture Leory Somer technology)
Model	TWG2E
Excite Type	Brushless ,Self-exciting, AVR automatic voltage regulating
Connecting Type	3 Phase and 4 Wires
Steady Frequency Change	05%
No load voltage	≥95%105%
Steady voltage	≤±1%
Insulation degree	H degree
Enclosure degree	IP21
The components of the genset
(1)   Diesel engine;  (2) Generator;  (3) Control panel  (4) soundproof canopy
The Accessories
Wave pipe , curved pipe , muffler , accumulator and the connecting lines , shock-absorbing spacer , and data .
Control Panel
The control panel is Ordinary integrative type control panel, with the display of voltage,current, frequency, water temperature, oil pressure.

CUMMINS configuration and technical data

50HZ, 3 Phase, 400/230V
No.	GENSET Model	OUTPUT POWER  1500RPM 50HZ				Engine Model	Alternator Model		Cyl.	Disp.	Bore *Stroke	Fuel Cons.
		Prime KVA	Prime KW	Standby KVA	standby KW	CUMMINS	GODLIKE	STAMFORD	(nos)	(L)	(mm)	(g/kw.h)
1	GDC20*S	20	16	23	18	4B3.9-G1/G2	JDG164D	PI 144D	4	3.9	102*120	215
2	GDC25*S	25	20	28	22	4B3.9-G1/G2	JDG184F	PI 144E	4	3.9	102*120	215
3	GDC30*S	30	24	33	26	4BT3.9-G1/G2	JDG184G	PI 144G	4	3.9	102*120	215
4	GDC40*S	40	32	44	35	4BT3.9-G1/G2	JDG184H	PI 144J	4	3.9	102*120	215
5	GDC43*S	43	34	47	37	4BTA3.9-G2	JDG224C	UCI224C	4	3.9	102*120	215
6	GDC50*S	50	40	55	44	4BTA3.9-G2	JDG224D	UCI224D	4	3.9	102*120	215
7	GDC57*S	57	45	63	50	4BTA3.9-G2	JDG224ES	UCI224E	4	3.9	102*120	215
8	GDC60*S	60	48	66	53	4BTA3.9-G2	JDG224E	UCI224E	4	3.9	102*120	215
9	GDC63*S	63	50	69	55	6BT5.9-G2	JDG224E	UCI224E	6	5.9	102*120	215
10	GDC73*S	73	58	80	64	6BT5.9-G2	JDG224F	UCI224F	6	5.9	102*120	215
11	GDC88*S	88	70	96	77	6BT5.9-G2	JDG224G	UCI224G	6	5.9	102*120	215
12	GDC93*S	93	75	103	82	6BT5.9-G2	JDG224H	UCI274C	6	5.9	102*120	215
13	GDC100*S	100	80	110	88	6BT5.9-G1/G2	JDG274C	UCI274C	6	5.9	102*120	215
14	GDC120*S	120	96	132	106	6BTA5.9-G2	JDG274DS	UCI274D	6	5.9	102*120	215
15	GDC135*S	135	108	149	119	6BTAA5.9-G2	JDG274ES	UCI274E	6	5.9	102*120	215
16	GDC138*S	138	110	151	121	6CTA8.3-G2	JDG274ES	UCI274E	6	8.3	114*135	210
17	GDC150*S	150	120	165	132	6CTA8.3-G2	JDG274E	UCI274E	6	8.3	114*135	210
18	GDC160*S	160	128	176	141	6CTA8.3-G2	JDG274F	UCI274F	6	8.3	114*135	210
19	GDC180*S	180	144	198	158	6CTA8.3-G2	JDG274G	UCI274G	6	8.3	114*135	210
20	GDC200*S	200	160	220	176	6CTAA8.3-G2	JDG274H	UCI274H	6	8.3	114*135	210
21	GDC225*S	225	180	248	198	6LTAA8.9-G2	JDG274J	UCD274J	6	8.9	114*135	197
22	GDC250*S	250	200	275	220	6LTAA8.9-G2	JDG274K	UCD274K	6	8.9	114*135	197
23	GDC250*S	250	200	275	220	NTA855-GA	JDG274K	UCD274K	6	10.8	125*147	200
24	GDC250*S	250	200	275	220	MTA11-G2A	JDG274K	UCD274K	6	10.8	125*147	200
25	GDC275*S	275	220	303	242	NTA855-G1A	JDG314DS	HCI444D	6	10.8	125*147	188
26	GDC300*S	300	240	330	264	NTA855-G1B	JDG314D	HCI444D	6	10.8	125*147	188
27	GDC313*S	313	250	344	275	NTA855-G1B	JDG314ESS	HCI444ES	6	10.8	125*147	188
28	GDC325*S	325	260	358	286	NTA855-G1B	JDG314ES	HCI444ES	6	14.0	140*152	200.2
29	GDC350*S	350	280	385	308	NTA855-G2A	JDG314E	HCI444E	6	14.0	140*152	200.2
30	GDC350*S	350	280	385	308	NTA855-G4	JDG314E	HCI444E	6	14.0	140*152	200.2
31	GDC375*S	375	300	413	330	NTAA855-G7	JDG314FS	HCI444FS	6	14.0	140*152	205.4
32	GDC375*S	375	300	413	330	KTA19-G2	JDG314FS	HCI444FS	6	14.0	140*152	205.4
33	GDC400*S	400	320	440	352	NTAA855-G7A	JDG314F	HCI444F	6	14.0	159*159	205.4
34	GDC420*S	420	336	462	370	NTAA855-G7A	JDG354C	HCI544C	6	18.9	159*159	200.7
35	GDC450*S	450	360	495	396	KTA19-G3	JDG354C	HCI544C	6	18.9	159*159	200.7
36	GDC500*S	500	400	550	440	KTA19-G3A	JDG354D	HCI544D	6	18.9	159*159	200.5
37	GDC500*S	500	400	550	440	KTA19-G4	JDG354D	HCI544D	6	18.9	159*159	200.5
38	GDC550*S	550	440	605	484	KTAA19-G5	JDG354ES	HCI544D	6	18.9	159*159	200.5
39	GDC600*S	600	480	660	528	KTAA19-G6	JDG354E	HCI544E	6	18.9	159*159	208
40	GDC600*S	600	480	660	528	KTAA19-G8	JDG354E	HCI544E	6	18.9	159*159	208
41	GDC625*S	625	500	688	550	KTAA19-G6A	JDG354FS	HCI544F-S	6	18.9	159*159	202
42	GDC625*S	625	500	688	550	KT38-G	JDG354FS	HCI544F-S	6	18.9	159*159	202
43	GDC700*S	700	560	770	616	KTA38-GA	JDG354G	HCI544F-S	12	37.8	159*159	213
44	GDC750*S	750	600	825	660	KTA38-G2	JDG404B	LVI634B	12	37.8	159*159	209
45	GDC800*S	800	640	880	704	KTA38-G2B	JDG404C	LVI634C	12	37.8	159*159	196
46	GDC900*S	900	720	990	792	KTA38-G2A	JDG404D	LVI634D	12	37.8	159*159	196
47	GDC1000*S	1000	800	1100	880	KTA38-G4	JDG404E	HCI 634G	12	37.8	159*159	198
48	GDC1125*S	1125	900	1238	990	KTA38-G9	JDG404F	HCI 634G	12	37.8	159*159	198
49	GDC1250*S	1250	1000	1375	1100	KTA50-G3	JDG404G	HCI 634J	12	37.8	159*159	213
50	GDC1375*S	1375	1100	1513	1210	KTA50-G8	HCI 634J	HCI 634K	12	37.8	159*159	213
51	GDC1500*S	1500	1200	1650	1320	KTA50-GS8	LVI 634G	LVI 634G	12	37.8	159*159	213

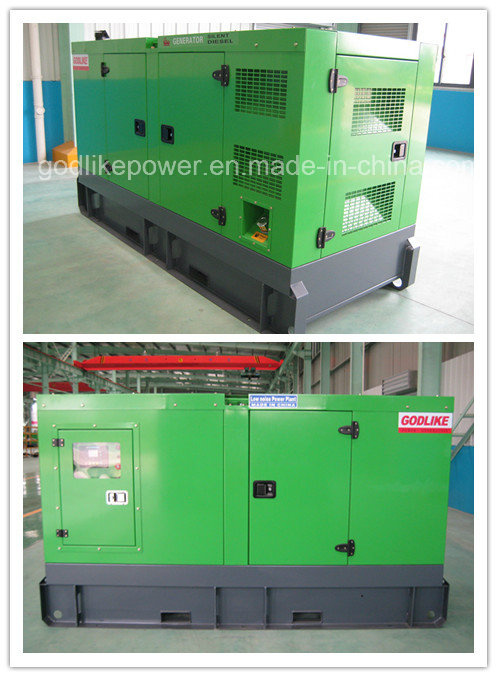

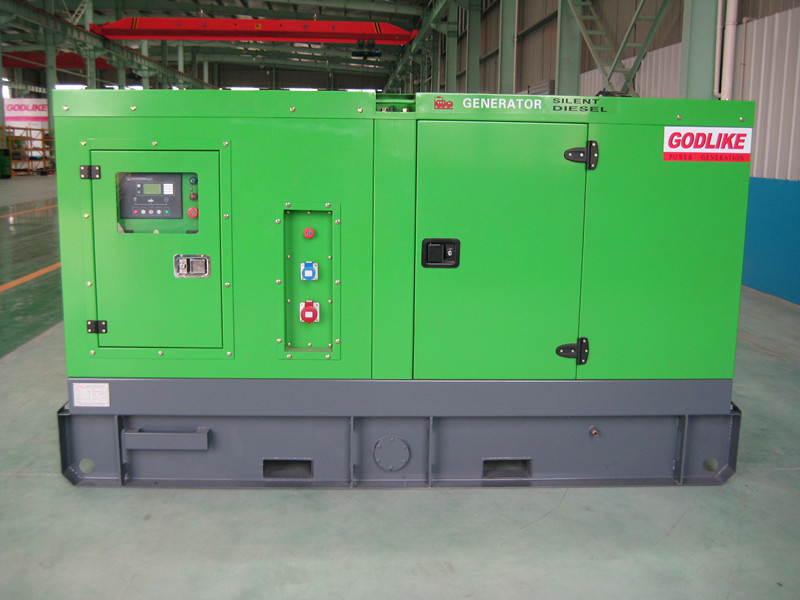

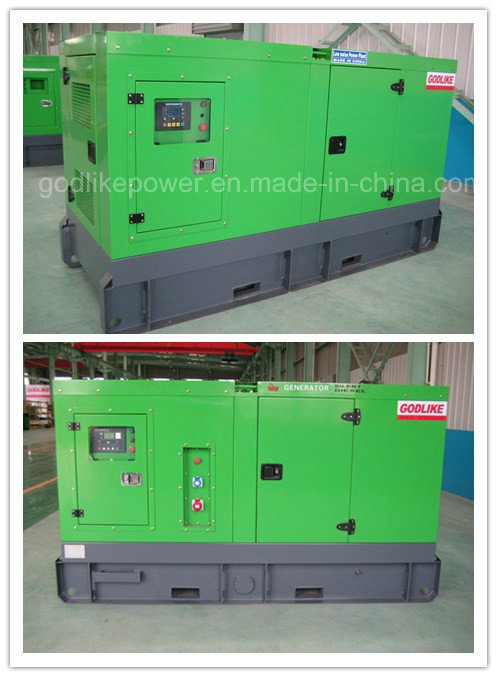

Generator photos:


Contact: Ms Vicki Yuan
Tel: 86 514 80915716
