Parameter:
Power Factor: 0.8(lagging)
Protection Standard: IP21-IP23
Model of Connection: 3 phase 4 lines
Insulation Grade: H
Frequency Drop(%): ≤ 0.5
Transient state frequency deviation(%): (advertised power) +10~-7
Frequency Recovery Time(S): ≤ 3
Voltage Recovery Time(S): ≤ 4
Waveform Distortion(%): ≤ 5
Features:
High fuel efficiency: Fewer fuel consumption at leading level than other competitive products.
The turbocharger with waste gated design: Optimizes operation across the torque curve resulting in excellent low-end torque.
Compacted yet durable and dependable engine: Cummins engines contain up to 40% fewer parts than competitive engines in its class. This results in a better power-to-weight ration, a less chance of failure and lower repair cost.
Advanced design and manufacturing: Make the engine delivers superior performance and lower cost than competitive engines.
Excellent cold start performance: Optional assistant cold starter with improved 6.6KW starter and intake air heater.
Excellent performance and advantage: Adopt advanced design to achieve higher horsepower and lower weight.
Deutz diesel engine assy &accessories DEUTZ: BFL413, BFL513, FL511, FL912, BFL913, BFL913C, BFM1011, BFM1012, BFM1013, BFM1015, BFM2012, BFM2013
A. Excellent features for deutz diesel generator set
1)World most famous brand diesel engine: Deutz.
2)World most famous brand AC alternator: Stamford, Leroy Somer & MVC brand for your selection.
3)World most famous brand control system: The British Deepsea & Shen Zhen Smartgen
Control Panel for your selection.
4)World most famous brand ATS: French Socomec ATS.
5)Engine and alternator shall be mounted on a same frame steel skid, Buit-in damper for
Anti-vibration.
6)Small size, low weight, low consumption and radio interference, easy to operating, installation
And maintenance.
7)Advanced and reliable control module: Electronic or Automatical Starting.
8)Three phase voltage available: 208V & 220V & 230 & 240V & 380V & 390V & 400V & 415V &
440V & 460V & 480V.
9)Full range protect function and alarm shutdown feature.
10)12 months warranty from ex-factory date(1300 running hours at least), whichever comes first.
11)CE approval.
B. Deutz Diesel Engines
Designed with Gemany Technology
Deutz water cooled diesel engines, oil and fuel filter fitted, water seperator, lude-oil drain valve fitted
Enviromental Friendly
The Emission meet Euro-V standard
Compact Size
For easy of installation and easy access for routine maintenan

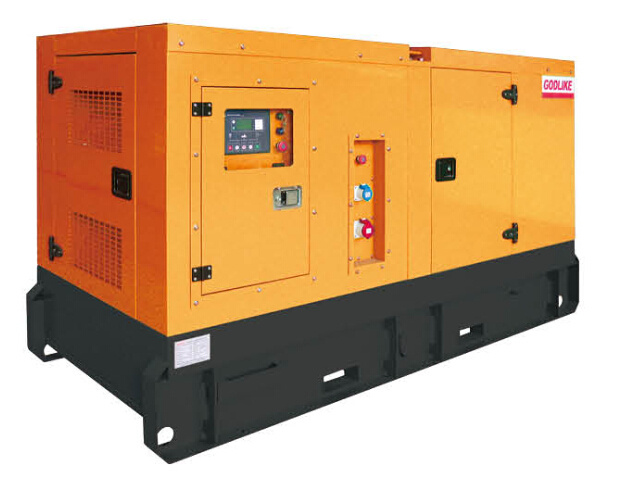

| GENSET |
|
|
|
| UNIT MODEL | GDDZ150 | FREQUENCY | 50HZ |
| PRIME POWER | 120KW | RATED CAPACITY | 150KVA |
| RATED CURRENT | 216A | RATED VOLTAGE | 400/230V |
| RATED SPEED | 1500(r/m) | POWER FACTOR | 0.8(lagging) |
| USE FOR ENVIRONMENT | 1.Altitude 0-1000m
2.Relative humidity 90% |
| DIESEL ENGINE | DEUTZ |
|
|
| MODEL | WP6D132E200 |
|
|
| MANUFACTURER | Deutz CO.LTD |
| PRIME POWER | 132KW | STANDBY POWER(KW) | / |
| RATED ROTATRY SPEED(r/min) | 1500 | OIL CONSUMPTION(L/H) | ≤0.1 |
| CYLINDER QTY | 4 | FUEL CONSUMPTION(G/KW.H) | 209 |
| BORE*STROKE (mm) | 105*120 | LUBRICANT CAPACITY | / |
| OUTPUT VOLUME | 4.16L | COOLING LIQUID VOLUME | / |
| STROKE | 4 | SPEED GOVERNOR | ELECTRICAL/MECHANIC |
| COOLING METHOD | Water-Cooling | INTAKE MODE | Naturally aspirated |
| STARTING METHOD | DC24V mechanical starting | COMPRESSION RATIO | 15.5:1 |
| NET WEIGHT(kg) | 1200 |
|
|
| MEASUREMENT | 2400*820*1780 |
|
|
| ALTERNATOR | Godlike/ Stamford |
|
|
| MODEL | JDG274E/ UCI274E |
|
|
| RATED POWER(KW) | 120/112 |
|
|
| RATED CURRENT(A) | 216/202 | RATED CAPACITY(KVA) | 150/140 |
| Exciter Type | Brushless; self-excitation | RATED SPEED | 1500(r/m) |
| RATED VOLTAGE | 400/230V | FREQUENCY | 60HZ |
| POWER FACTOR | 0.8(lagging) | CONNECTING | 3 Phase,4 Wires |
| EFFICIENCY | 95% | INSULATION CLASS | H |
| PROTECTION GRADE | IP23 | OVERLOAD CAPACITY | (PRP)110% Load running for 1h |
| ATUOMATIC VOLTAGE REGULATING | AVR-D203 |
|
|
1.Stamford/Engga/Marathon/Paou/Others 2.Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
3.Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof |
Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
Motivated by our slogan to provide "Excellent Power Solution", Godlike Power focuses on design, manufacture, sales, installation and service of diesel generators&alternators. Our diesel generators range from 8 kVA to 2500 kVA, equipped with Perkins, Cummins, Mitsubishi, Doosan, Deutz, MTU etc and equipped with our alternator, Stamford, Leroy-Somer etc alternators as required. Our Stamford type brushless alternators range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800, voltage 110V-690V, class H, IP23, all easily coupled with Industrial & Marine, Diesel & Gasoline engines.
GODLIKE people treat Quality and Service as enterprise's life, and has competitive advantages.
GODLIKE generators are being exported to Europe, America, Southeast Asia, the Middle East, South Africa, and many other countries and regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to GODLIKE.
