Top factory Cummins engine 4BTA3.9-G2 50kW Diesel Generator Price (GDC63*S)Basic Info.
Model No.:GDC63*S
Export Markets: Global
Additional Info.
Trademark: Godlike
Packing: In Strong Plywood
Standard: ISO9001
Origin: China
Production Capacity: 8000 Sets/Year
Product Description
Specifications
1) Cummins engine, Stamford/Marathon/Leroy somer generator
2) Prime Power: 50 kw, Voltage: 230/400V,
4) Certificate: ISO90001/ ISO14001/CE
5) 12 months warranty
We have got through the international quality certification system of ISO9001-2000, International environmental protection certification of ISO 14001: 2004, China Compulsory Certification and CE certification.
1. Technical parameters of Engine:
Producer: CumminsPower: 750kw Power factor: 0.8Governor way: Mechanical Insulation: HProtection: IP23Fuel: 0 light diesel
Intake way: Normally AspiratedRated output Voltage: 380/440V(optional)Rated Frequency(Hz): 50/60(optional)Rated speed: 1500r/mVoltage Control: AVRSoundproof Canopy(the color of the canopy can be changed)Norminal ambient condition of genset: Sea level elevation of 1500m, ambient temperature of 40 Celsius degree.
2. Technical parameters of Alternator:
Brand: Stamford/Marathon/Leroy Somer(Optional)Frequency fluctuation: ≤ ± 0.5%Frequency regulation: ≤ ± 0.5%(stable)Voltage Setting Range: ≥ ± 5%Temperature Rise: HClass of Insulation: HGrade of Protection: IP22Efficiency: 93.60%Electromagnetism Interference Factor: THF<2%, TIF<50Steady Voltage Regulation Factor: ≤ ± 1.0%
3. Technical parameters of Control Panel:
Brand: Smartgen/Upwin/Deepsea(Optional)Start or stop generator set Manually/AutomaticallyGenerator over/under frequency protectionOpen controller output can be defined as Pre-heat/Idle outputGenerator over/under/unbalance voltage protectionHigh coolant temperature protectionOver speed protectionLow oil pressure protectionOver current protectionOver load protectionAvailable for remote controlNote: Indicate this function depeed on the set points of the controller in field.
INSPECTION AND TEST
1 GENERAL
1.1 Each engine shall be tested at manufacturers workshop to certify the engine output and fuel consumption in accordance with the site operating condition specified by purchaser on the specification datasheet.
1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the purchaser in advance of the test date notification.
1.3 The engine and generator shall be tested separately in accordance with relevant standards specified above.
1.4 The completed and individually tested engine and generator shall be assembled onto the baseplate with all auxiliaries, instruments and controls for a complete test of the generator set.
Product line
1. Open type gensets.
2. Silent type gensets.
3. Trailer mounted gensets.
4. Enviromental protection and noise reduction project
Technical data |
Genset Model |
GDC63*S |
Genset Output Power |
50KW |
Rated Voltage |
415V |
Frequency |
50Hz |
Power Factor(COS) |
0.8(lagging) |
Dimension (L×W×H) (mm) |
2400×1100×1700 |
Net weight (kg) |
930 |
Diesel Engine |
Brand |
DCEC Cummins |
Model |
4BTA3.9-G2 |
Engine Structure |
In line 4 cylinder, 4 stroke, turbocharged |
Rotating Speed |
1500r/min |
Engine Cooling Method |
Radiator for ambient temp 40OC, belt driven cooling fan with cover |
Governor System |
Precise electrical governor system |
Starting Method |
24V DC, with Silicon commutating charging motor |
Engine Filter System |
Dry type air filter, fuel filter, oil filter |
Displacement(L) |
3.9 |
Compression Ratio |
16.51 |
Bore×Stroke(mm) |
102×120 |
100% load fuel consumption (L/h) |
12.6 |
Lube capacity(L) |
16.4 |
Alternator |
Brand |
Kaijieli(China-French joint venture Leory Somer technology) |
Model |
TWG2E |
Excite Type |
Brushless ,Self-exciting, AVR automatic voltage regulating |
Connecting Type |
3 Phase and 4 Wires |
Steady Frequency Change |
05% |
No load voltage |
≥95%105% |
Steady voltage |
≤±1% |
Insulation degree |
H degree |
Enclosure degree |
IP21 |
The components of the genset |
(1) Diesel engine; (2) Generator; (3) Control panel (4) soundproof canopy |
The Accessories |
Wave pipe , curved pipe , muffler , accumulator and the connecting lines , shock-absorbing spacer , and data . |

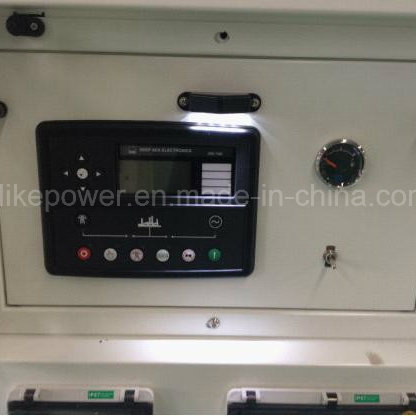

Control Panel |
The control panel is Ordinary integrative type control panel, with the display of voltage,current, frequency, water temperature, oil pressure. |

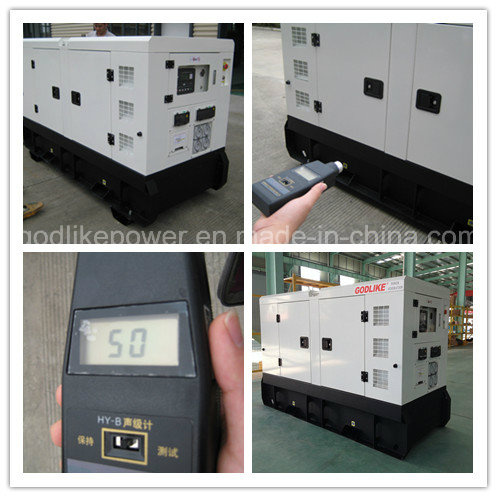

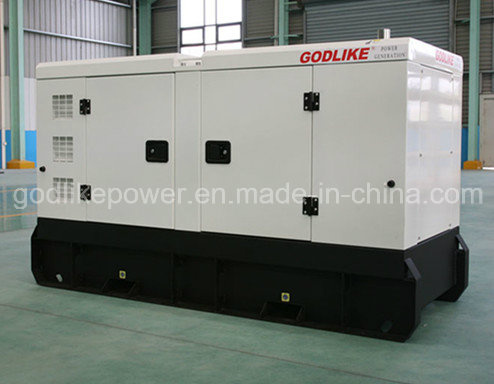

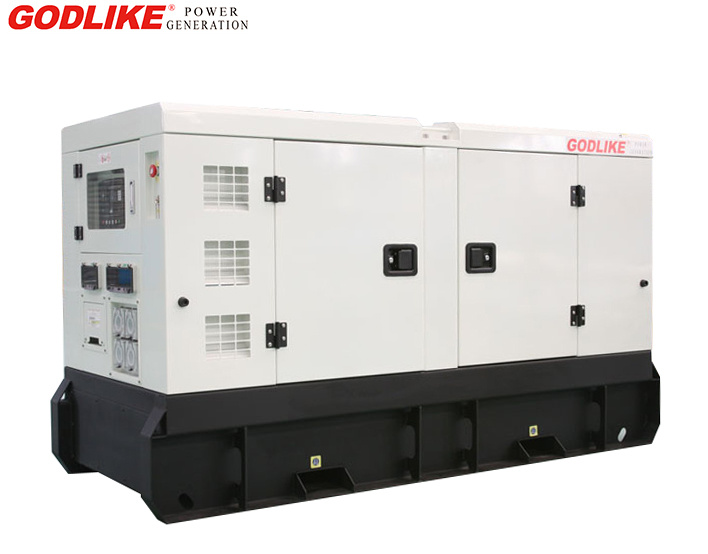

Generator photos:
