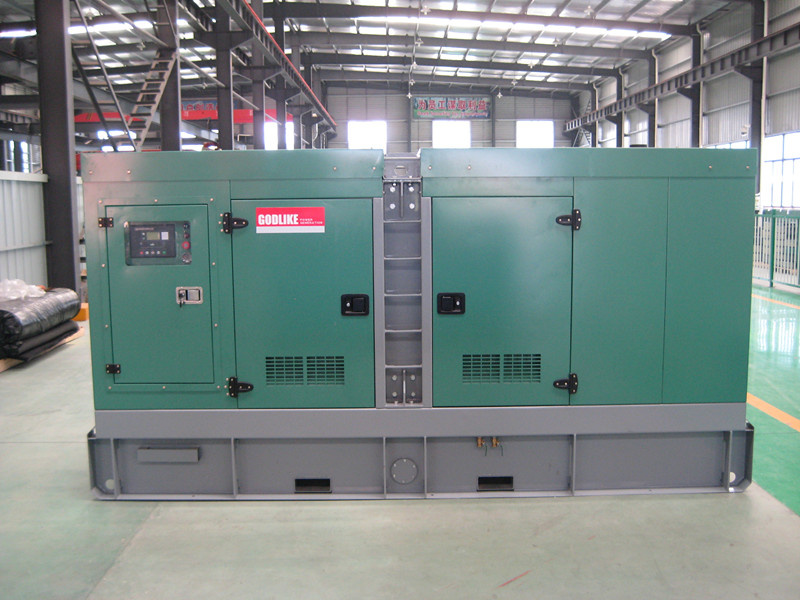

Top Factory Cummins Diesel Generator Silent 200kVA (6CTAA8.3-G2) (GDC200*S)
Product Description:
Technical data |
Genset Model | GDC200*S |
Prime Power | 160KW/200KVA |
Rated Voltage | 400/230V |
Frequency | 50/60Hz |
Power Factor | 0.8(lagging) |
The regulating rate of steady voltage | ≤±0.5% |
The regulating rate of instantaneous voltage | ≤-15%/ +20% |
The time of steady voltage | ≤1.5sec |
The waving rate of voltage | ≤1.0% |
The regulating rate of steady frequency | ≤3% |
The regulating rate of instantaneous frequency | ≤±10% |
The time of steady frequency | 3sec |
Dimension (L×W×H) (mm) | 3000*1000*1700 |
Genset weight (kg) | 2100 |
Diesel Engine |
Brand | Cummins |
Model | 6CTAA8.3-G2 |
Number of Cylinders | 6 |
Rotating Speed | 1500RPM |
Cycle | Four stroke |
Type | waste gas turbine boost,direct spurting type |
Bore×Stroke(mm) | 116*136 |
Displacement(L) | 8.7 |
Lubricating Capacity(L) | 28.3 |
Speed Governor | Electrical |
Cooling System | Water-cooled |
Speed Stability (%) | ≤5% |
Fuel Consumption at 100% Load | 220g/kw.h |
Starting Method | DC24V Electrical starting |
Alternator |
Brand | Copy Stamford |
Model | JDG274K |
Number of Phase | 3 |
Connecting Type | Three Phase and Four Lines |
Number of Bearing | 1 |
Grading Protection | IP23 |
Altitude | ≤1000m |
Exciter Type | Brushless (AVR automatic voltage regulating) |
Insulation Class | H degree |
The components of the genset |
(1) PERKINS Diesel Engine; (2) Hengsheng Alternator; (3) Control Panel |
Control Panel |
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection. |
PS:For better meet user's demands, the alternator is selectable, we have Stamford, Marathon, Qianghui, Engga and other famous brands.
CUMMINS configuration and technical data
50HZ, 3 Phase, 400/230V |
No. | GENSET Model | OUTPUT POWER 1500RPM 50HZ | Engine Model | Alternator Model | Cyl. | Disp. | Bore *Stroke | Fuel Cons. |
Prime KVA | Prime KW | Standby KVA | standby KW | CUMMINS | GODLIKE | STAMFORD | (nos) | (L) | (mm) | (g/kw.h) |
1 | GDC20*S | 20 | 16 | 23 | 18 | 4B3.9-G1/G2 | JDG164D | PI 144D | 4 | 3.9 | 102*120 | 215 |
2 | GDC25*S | 25 | 20 | 28 | 22 | 4B3.9-G1/G2 | JDG184F | PI 144E | 4 | 3.9 | 102*120 | 215 |
3 | GDC30*S | 30 | 24 | 33 | 26 | 4BT3.9-G1/G2 | JDG184G | PI 144G | 4 | 3.9 | 102*120 | 215 |
4 | GDC40*S | 40 | 32 | 44 | 35 | 4BT3.9-G1/G2 | JDG184H | PI 144J | 4 | 3.9 | 102*120 | 215 |
5 | GDC43*S | 43 | 34 | 47 | 37 | 4BTA3.9-G2 | JDG224C | UCI224C | 4 | 3.9 | 102*120 | 215 |
6 | GDC50*S | 50 | 40 | 55 | 44 | 4BTA3.9-G2 | JDG224D | UCI224D | 4 | 3.9 | 102*120 | 215 |
7 | GDC57*S | 57 | 45 | 63 | 50 | 4BTA3.9-G2 | JDG224ES | UCI224E | 4 | 3.9 | 102*120 | 215 |
8 | GDC60*S | 60 | 48 | 66 | 53 | 4BTA3.9-G2 | JDG224E | UCI224E | 4 | 3.9 | 102*120 | 215 |
9 | GDC63*S | 63 | 50 | 69 | 55 | 6BT5.9-G2 | JDG224E | UCI224E | 6 | 5.9 | 102*120 | 215 |
10 | GDC73*S | 73 | 58 | 80 | 64 | 6BT5.9-G2 | JDG224F | UCI224F | 6 | 5.9 | 102*120 | 215 |
11 | GDC88*S | 88 | 70 | 96 | 77 | 6BT5.9-G2 | JDG224G | UCI224G | 6 | 5.9 | 102*120 | 215 |
12 | GDC93*S | 93 | 75 | 103 | 82 | 6BT5.9-G2 | JDG224H | UCI274C | 6 | 5.9 | 102*120 | 215 |
13 | GDC100*S | 100 | 80 | 110 | 88 | 6BT5.9-G1/G2 | JDG274C | UCI274C | 6 | 5.9 | 102*120 | 215 |
14 | GDC120*S | 120 | 96 | 132 | 106 | 6BTA5.9-G2 | JDG274DS | UCI274D | 6 | 5.9 | 102*120 | 215 |
15 | GDC135*S | 135 | 108 | 149 | 119 | 6BTAA5.9-G2 | JDG274ES | UCI274E | 6 | 5.9 | 102*120 | 215 |
16 | GDC138*S | 138 | 110 | 151 | 121 | 6CTA8.3-G2 | JDG274ES | UCI274E | 6 | 8.3 | 114*135 | 210 |
17 | GDC150*S | 150 | 120 | 165 | 132 | 6CTA8.3-G2 | JDG274E | UCI274E | 6 | 8.3 | 114*135 | 210 |
18 | GDC160*S | 160 | 128 | 176 | 141 | 6CTA8.3-G2 | JDG274F | UCI274F | 6 | 8.3 | 114*135 | 210 |
19 | GDC180*S | 180 | 144 | 198 | 158 | 6CTA8.3-G2 | JDG274G | UCI274G | 6 | 8.3 | 114*135 | 210 |
20 | GDC200*S | 200 | 160 | 220 | 176 | 6CTAA8.3-G2 | JDG274H | UCI274H | 6 | 8.3 | 114*135 | 210 |
21 | GDC225*S | 225 | 180 | 248 | 198 | 6LTAA8.9-G2 | JDG274J | UCD274J | 6 | 8.9 | 114*135 | 197 |
22 | GDC250*S | 250 | 200 | 275 | 220 | 6LTAA8.9-G2 | JDG274K | UCD274K | 6 | 8.9 | 114*135 | 197 |
23 | GDC250*S | 250 | 200 | 275 | 220 | NTA855-GA | JDG274K | UCD274K | 6 | 10.8 | 125*147 | 200 |
24 | GDC250*S | 250 | 200 | 275 | 220 | MTA11-G2A | JDG274K | UCD274K | 6 | 10.8 | 125*147 | 200 |
25 | GDC275*S | 275 | 220 | 303 | 242 | NTA855-G1A | JDG314DS | HCI444D | 6 | 10.8 | 125*147 | 188 |
26 | GDC300*S | 300 | 240 | 330 | 264 | NTA855-G1B | JDG314D | HCI444D | 6 | 10.8 | 125*147 | 188 |
27 | GDC313*S | 313 | 250 | 344 | 275 | NTA855-G1B | JDG314ESS | HCI444ES | 6 | 10.8 | 125*147 | 188 |
28 | GDC325*S | 325 | 260 | 358 | 286 | NTA855-G1B | JDG314ES | HCI444ES | 6 | 14.0 | 140*152 | 200.2 |
29 | GDC350*S | 350 | 280 | 385 | 308 | NTA855-G2A | JDG314E | HCI444E | 6 | 14.0 | 140*152 | 200.2 |
30 | GDC350*S | 350 | 280 | 385 | 308 | NTA855-G4 | JDG314E | HCI444E | 6 | 14.0 | 140*152 | 200.2 |
31 | GDC375*S | 375 | 300 | 413 | 330 | NTAA855-G7 | JDG314FS | HCI444FS | 6 | 14.0 | 140*152 | 205.4 |
32 | GDC375*S | 375 | 300 | 413 | 330 | KTA19-G2 | JDG314FS | HCI444FS | 6 | 14.0 | 140*152 | 205.4 |
33 | GDC400*S | 400 | 320 | 440 | 352 | NTAA855-G7A | JDG314F | HCI444F | 6 | 14.0 | 159*159 | 205.4 |
34 | GDC420*S | 420 | 336 | 462 | 370 | NTAA855-G7A | JDG354C | HCI544C | 6 | 18.9 | 159*159 | 200.7 |
35 | GDC450*S | 450 | 360 | 495 | 396 | KTA19-G3 | JDG354C | HCI544C | 6 | 18.9 | 159*159 | 200.7 |
36 | GDC500*S | 500 | 400 | 550 | 440 | KTA19-G3A | JDG354D | HCI544D | 6 | 18.9 | 159*159 | 200.5 |
37 | GDC500*S | 500 | 400 | 550 | 440 | KTA19-G4 | JDG354D | HCI544D | 6 | 18.9 | 159*159 | 200.5 |
38 | GDC550*S | 550 | 440 | 605 | 484 | KTAA19-G5 | JDG354ES | HCI544D | 6 | 18.9 | 159*159 | 200.5 |
39 | GDC600*S | 600 | 480 | 660 | 528 | KTAA19-G6 | JDG354E | HCI544E | 6 | 18.9 | 159*159 | 208 |
40 | GDC600*S | 600 | 480 | 660 | 528 | KTAA19-G8 | JDG354E | HCI544E | 6 | 18.9 | 159*159 | 208 |
41 | GDC625*S | 625 | 500 | 688 | 550 | KTAA19-G6A | JDG354FS | HCI544F-S | 6 | 18.9 | 159*159 | 202 |
42 | GDC625*S | 625 | 500 | 688 | 550 | KT38-G | JDG354FS | HCI544F-S | 6 | 18.9 | 159*159 | 202 |
43 | GDC700*S | 700 | 560 | 770 | 616 | KTA38-GA | JDG354G | HCI544F-S | 12 | 37.8 | 159*159 | 213 |
44 | GDC750*S | 750 | 600 | 825 | 660 | KTA38-G2 | JDG404B | LVI634B | 12 | 37.8 | 159*159 | 209 |
45 | GDC800*S | 800 | 640 | 880 | 704 | KTA38-G2B | JDG404C | LVI634C | 12 | 37.8 | 159*159 | 196 |
46 | GDC900*S | 900 | 720 | 990 | 792 | KTA38-G2A | JDG404D | LVI634D | 12 | 37.8 | 159*159 | 196 |
47 | GDC1000*S | 1000 | 800 | 1100 | 880 | KTA38-G4 | JDG404E | HCI 634G | 12 | 37.8 | 159*159 | 198 |
48 | GDC1125*S | 1125 | 900 | 1238 | 990 | KTA38-G9 | JDG404F | HCI 634G | 12 | 37.8 | 159*159 | 198 |
49 | GDC1250*S | 1250 | 1000 | 1375 | 1100 | KTA50-G3 | JDG404G | HCI 634J | 12 | 37.8 | 159*159 | 213 |
50 | GDC1375*S | 1375 | 1100 | 1513 | 1210 | KTA50-G8 | HCI 634J | HCI 634K | 12 | 37.8 | 159*159 | 213 |
51 | GDC1500*S | 1500 | 1200 | 1650 | 1320 | KTA50-GS8 | LVI 634G | LVI 634G | 12 | 37.8 | 159*159 | 213 |
