Company information
Weifang Huaquan Power Machinery Co.Ltd is in economic technical development area of Weicheng Shangdong Province ,professsional produing, running,developing terrestrial and marine diesel generator, natural gas generator and automatic pumps.The series of our product including lots of famous brand in the world,such as Cummmins, Steyr,deutz, Volvo,Ricardo ect.The kilowatt is from 8kw to 1500kw.Alternator are chosen as Stanford,Leroy Somer,Engga,Qianghui, and we have already registered as the name of Huaquan Diesel Generator set.We also pay attention to building after-sale service ,solved lots of customers' problems .Our product are sold to more than 30 countries and areas such as Africa ,Europe ,West Asia and Southeast Asia.

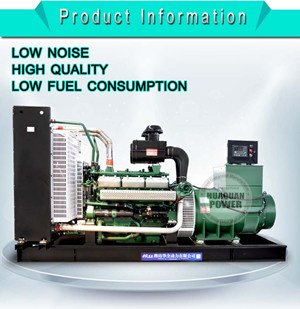

600KW Shangchai Diesel Generator
600KW Shangchai Diesel Generator: Power prime:600kw(650kva),Max Power:715kw(687kva) Engine Model Brand:Shangchai KPV660 Alternator:China Stanford Brushless Speed adjustment : Electrical Type:Mid-water cooled and Turbocharged
Shangchai Branch Engine Diesel Generator |
| HQS260GF | 260/325 | 286/358 | 6135CZLD | 310 | HCE444ES | 260/325 | 3100×1100×1635 | 3198 |
|
| HQS280GF | 280/350 | 308/385 | 6135CZLD | 310 | HCI444E | 280/350 | 3100×1100×1635 | 3198 |
|
| HQS304GF | 304/380 | 334/418 | 6135CZLD-1 | 350 | HCI444FS | 304/380 | 3250×1190×1700 | 3200 |
|
| HQS320GF | 320/400 | 352/440 | 6135CZLD-1 | 373 | HCI444F | 320/400 | 3300×1150×1700 | 3260 |
|
| HQS400GF | 400/500 | 440/550 | 12V135BZLD | 450 | HCI544C | 400/500 | 3500×1375×1980 | 3950 |
|
| HQS450GF | 450/563 | 495/619 | 12V135BZLD-1 | 510 | HCI544D | 450/563 | 3700×1750×2030 | 4200 |
|
| HQS500GF | 500/625 | 550/688 | 12V135CZLD | 550 | HCI544FS | 500/625 | 3700×1750×2030 | 4200 |
|
| HQS550GF | 550/687.5 | 605/756 | 12V135CZLD-1 | 610 | HCI544F | 536/670 | 3700×1750×2130 | 4500 |
|
| HQS600GF | 600/750 | 660/825 | 12V138AZLD | 660 | HCI634G | 640/800 | 3700×1750×2030 | 4600 |
ProductsGroup By BrandShangchai Diesel Generator
HOME > Products > Group By Brand > Shangchai Diesel Generator >
Weifang Huaquan Power Shangchai series generator adopt SDEC and Dongfeng institute engine, Stanford, Landian, Qianghui, Engga, Marathon, Faraday or Leroy-somer famous brushless alternator. Power ranges from 150kw to 600kw.
Shangchai diesel generator features:
1.The genset adopt domestic shanghai 135 engine and 12V series engine.
2.Entirety type crankshaft, gantry body, interchangeable with older 135 engine.
3.The unit adopt new throat combustor, reaching environmental index.
4.Lubrication, cooling system , optimization design and reliable performance..
.We offer options generators as the below shows:
A.Frequency we offer 50HZ and 60HZ.
B.Voltage: we offer 110/220v, 240v,380v/440v,254v/440 etc,or depend on your request.
C.Phase: we offer three phase or single phase generator
D.Options parts like: Electric speed adjustment, LCD show panel,protection system,Automatic transfer system. Silent canopy, Weatherproof canopy,Fuel tank.
Our Generator Standard configurations:
1. Standard High-level quality engine Ricardo series.
2. Standard High-level quality alternator, Stanford, Brushless, 100% copper wires. Protection Grade: IP23, Insulation Class H.
3. Maintenance-free start battery.
4. Acidulated under frame.
5. Electric starting.
6. Standard control panel LCD show panel.
7. Daily fuel tank.
9. High-level shock absorber system.
10. Ripple flexes exhaust pipe, exhaust siphons, flange, Muffler.
11. Radiator
12. Exhaust silencer
13. Charger motor for battery.
14. Standard export box.
15. Manuals.
16. Tools box.
COMPANY STRENGTH
Huaquan power implement the concept "quality is the survival of the foundamental ".The company has passed the ISO9001-2000 quality system certification and also has independent import and export right. And also has passed the advanced HSJF-3 auto alternator performance testing equipment which has a strict test to each performance index of diesel generator to insure 100% ex factory pass rate.
Sales Promises
Huaquan provides a full line of brand new and high quality products.Each
and every unit is strictly factory tested Warranty is according to our
standard conditions:12 months or 1000 running hour's ,subject to the
earlier one .Service and parts are available from our factory
Huaquan Power is specialized in producing diesel generator set, diesel generator, generator set, diesel generating set, generating, generating set, generator diesel, power generator, gas generator, nautral gas generator, eletric generator, alternator, diesel engine etc. We have open frame generator, automatic generator, trailer generator, silent/soundproof diesel generator, water pump etc. And the brands include Cummins, Perkins, Deutz, Steyr, Isuzu, Ricardo, Yuchai, as well as famous brands of alternator, such as Stamford, Faraday, Leroy-somer, Qiji. Power ranges from 3kw to 1000kw
Huaquan Power Mchinery Co., Ltd, located in diesel engine manufacturing powerhouse-Weifang, the capital of kites.
Huaquan Power has more than 500 employees worldwide and it has four advanced production lines, sophisticated testing equipment, complete quality management system, and marketing all around the world in the past 10 years, such as Southeast Asia, the Middle East, Africa and other regions.
Huaquan Power ensures that providing the energy saving, environment protection, high quality and reliable diesel engine and generators, to ensure user satisfaction and rest assured! We sincerely look forward to your cooperation!
