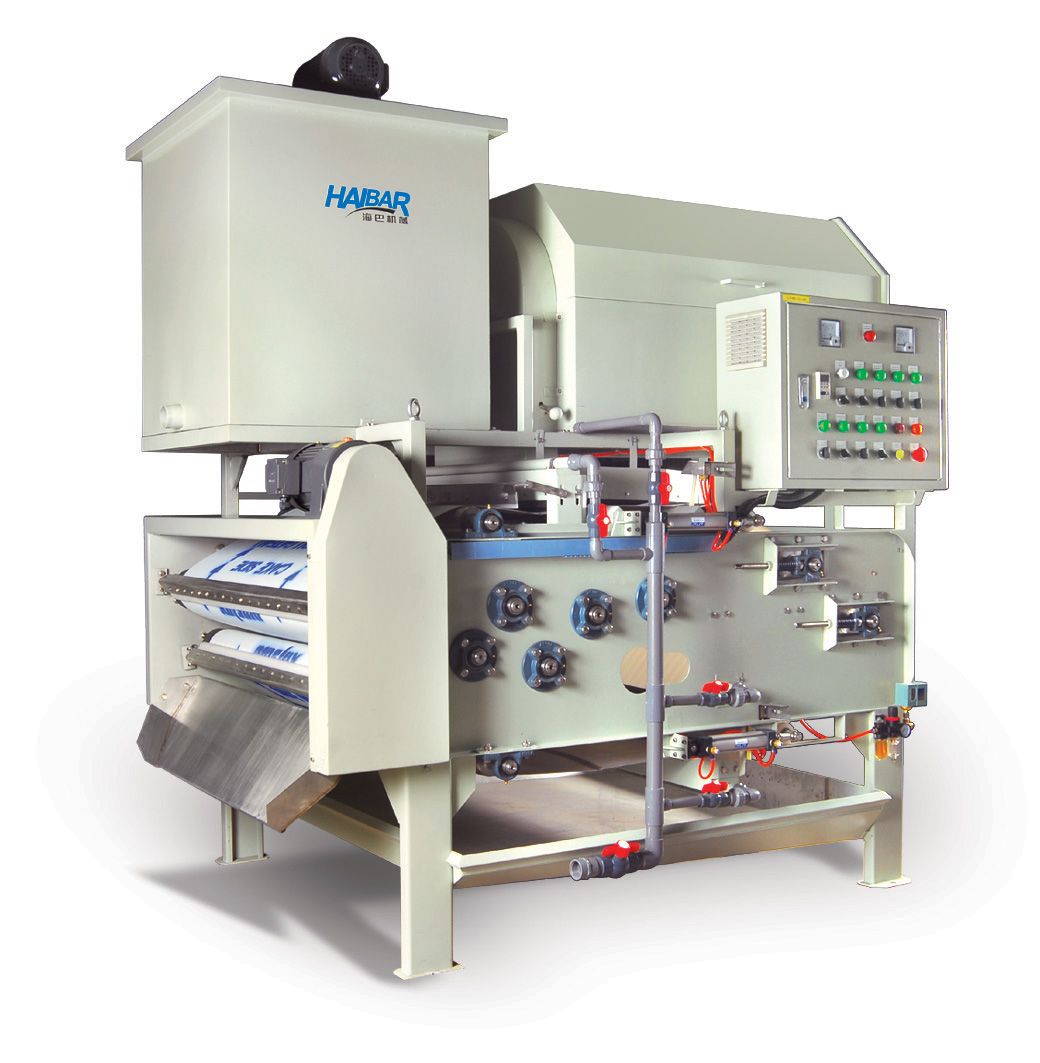

HTA series Belt Filter Press or Belt Press is our economical solution for sludge dewatering in small sewage treatment plants. It is a solid/liquid separation machine broadly applicable for sludge dewatering especially in the chemical, mining, paper, textile and municipal wastewater treatment.
Sludge with a solid content of 0.5% - 5% will first be flocculated by the flocculation unit, and pre-dewatered by the sludge thickener to reduce up to 90% volume with a solid content usually 3% - 9%, and further dried by the belt filter press to achieve the final solid content about 15% - 40%.
Advantages of HTA:
1. Compact design for small foot print
2. Simple, robust construction built by stainless steel
3. Continuous operation with low maintenance
4. Belt cleaning with stainless steel spray tubes with nozzles
5. Automatic belt tracking/alignment during operation
6. Automatic belt tensioning (Option)
7. Variable belt speed (Option)
Specifications of HTA:
1. Model: HTA-500, 750, 1000, 1250, 1500
2. Belt Width: 500 - 1500mm
3. Sludge Capacity: 2 - 20m3/hr
4. Dry Sludge Capacity: 30 - 230kg/hr
5. Solid Concentration Before: 1.5% - 2.5%
6. Solid Concentration After: 16% - 34%
7. Power Consumption: 1 - 2HP
|
|
HTA-1500 |
|
Belt Width (mm) |
1500 |
|
Inlet consistency( 1.5%-2.5%) |
Treating capacity (m3/hr) |
6.6~12.6 |
|
|
Dried Sludge (kg/hr) |
105~173 |
|
Water content rate (%) |
66~84 |
|
Power consumption |
Driving motor+Agitating Motor+Thickener |
1.5 Hp |
|
Dimensions (Reference) (mm) |
Length x Width x Height |
2700 x 2050 x 2650 |
|
Reference Weight (kg) |
1960 |
