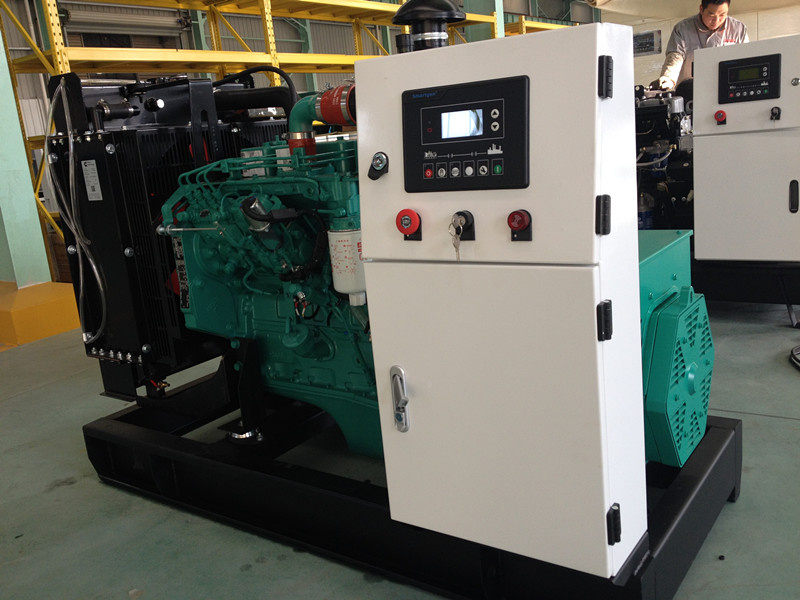

Three phase 130kVA Diesel Cummins Electric Generator Price
Specifications
1) Power range: 130kVA /104kw
2) Brushless Synchronous A. C. Alternator,
3) Stamford& Leroy somer Type of Electric Generator,
4) Three Phase optional, IP23, Class H,
5) Rated voltage 400V, 110-690V option
Scope of Supply:
1-Brand new engine and brushless AVR controlled alternator
2-Set mounted Smartgen Auto Controller
3-MCCB(Circuit Breaker), Emergency stop button, low oil pressure shutdown, high engine temperature shutdown.
4-Rubber Anti Vibration Mounts and skid basefram with 6-8hours integral fuel tank.
5-Genset equipped with battery charger and 24V high performance lead acid starting batteires and connecting with cables.
6-Genset equipped with industrial silencer and flexible exhaust hose.
7-Genset equipped with fan and closed circuit cooled radiator(40degree centigrade).
8-Genset with filtering systems including air filter, fuel filter & lub-oil filter.
9-Supply relative documents(testing report, diagram, operation/maintenance manual/spare parts manuals)for engine and alternator
| Diesel Generator Specifications |
| Manufacturer: | Yangzhou GODLIKE Power Equipment Co.,Ltd. |
| Model: | JDC130*S |
| Prime Power: | 104KW / 130KVA |
| Standby Power: | 114KW / 143KVA |
| Frequency: | 50HZ |
| Voltage: | 400/230V |
| Phase: | 3 Phase |
| P.F(COS): | 0.8 |
| Fuel: | Diesel |
| Rated Current: | 187.2A |
| Start Method: | 24V DC Start Battery |
| Accessory: | Battery, wire, exhaust pipe, muffler, damper, breaker |
| Altitude: | ≤1000m |
| Engine Specifications |
| Manufacturer: | Dongfeng Cummins Engine Co., Ltd |
| Model: | 6BTAA5.9-G2 |
| Air Intake System: | Turbocharger |
| Fuel System: | PN type fuel pump |
| Cylinder Arrangement: | 6 in line |
| Displacement: | 5.9L |
| Bore and Stroke: | 102×120mm |
| Compression Ratio: | 16:1 |
| Rated RPM: | 1500rpm |
| Maximum Output Power: | 130KW |
| Governor Type: | Electronic |
| Exhaust System |
| Exhaust Gas Flow: | 19.44m3/min |
| Exhaust Temperature: | 495 |
| Max Back Pressure: | 10kPa |
| Air Intake System |
| Max Intake Restriction: | 6.35kPa |
| Burning Capacity: | 8.7m3/min |
| Air Flow: | 190m3 /min |
| Fuel System |
| 100%( Prime Power) Load: | 208 g/Kw.h |
| 75%(Prime Power) Load: | 212 g/Kw.h |
| 50%(Prime Power) Load: | 219 g/Kw.h |
| 100%( Prime Power) Load: | 27.8L/h |
| Oil System |
| Total Oil Capacity: | 16.4L |
| Oil Consumption: | ≤4g/kwh |
| Engine Oil Tank Capacity: | 14.2L |
| Oil Pressure at Rated RPM: | 345kPa |
| Cooling System |
| Total Coolant Capacity: | 29L |
| Thermostat: | 82-95 |
| Max Water Temperature: | 104 |
| Alternator Specifications |
| Manufacturer: | Mecc Alte S.p.A (Italy) |
| Model: | ECP34-1L/4 |
| Rated Capacity: | 135KVA |
| Winding: | 100% Copper Wire |
| Frequency: | 50HZ |
| Speed: | 1500 RPM |
| Connecting Type: | 3 Phase and 4 Wires, "Y" type connecting |
| Power Factor: | 0.8 |
| Protection Grade: | IP23 |
| Exciter Type: | Brushless, self-exciting, with AVR |
| Insulation Class, Temperature Rise: | H/H |
| Alternator Warranty: | 2 Year No Time Limited |
| Voltage Regulation: | ≥±5% |
| Control System Specifications |
| Manufacturer: | DEEP SEA ELECTRONICS PLC (UK) |
| Model: | DSE6020 |
| Type: | AMF Automatic Operation |
| Operation: | Automatic Start and Auto Mains (Utility) Failure Control |
| Alarm Protect: | Engine pre-heat, Current monitoring, Comprehensive
Shutdown, Charge Failure |
Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices
Our service quality assurance:
1)Before-sale Service: We provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance: Our sale staffs are all experience and professional, who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service: We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
