Working Principle
Under certain pressure,with the use of the difference of diffusion rate between nitrogen and oxygen int air on carbon molecular sieve;oxygen molecule ins absorbed largely by the carbon molecular sieve and nitrogen molecule concentrates in gas-phase in a short time,so as to realize separation of oxygen and nitrogen.
Due to the absorption capacity of carbon molecular sieve for oxygen varies largely from different pressure,reducing the pressure can make the carbon molecular sieve release absorbed oxygen molecular and regenerate the carbon molecular sieve,so as to realize repeated recycling of it.

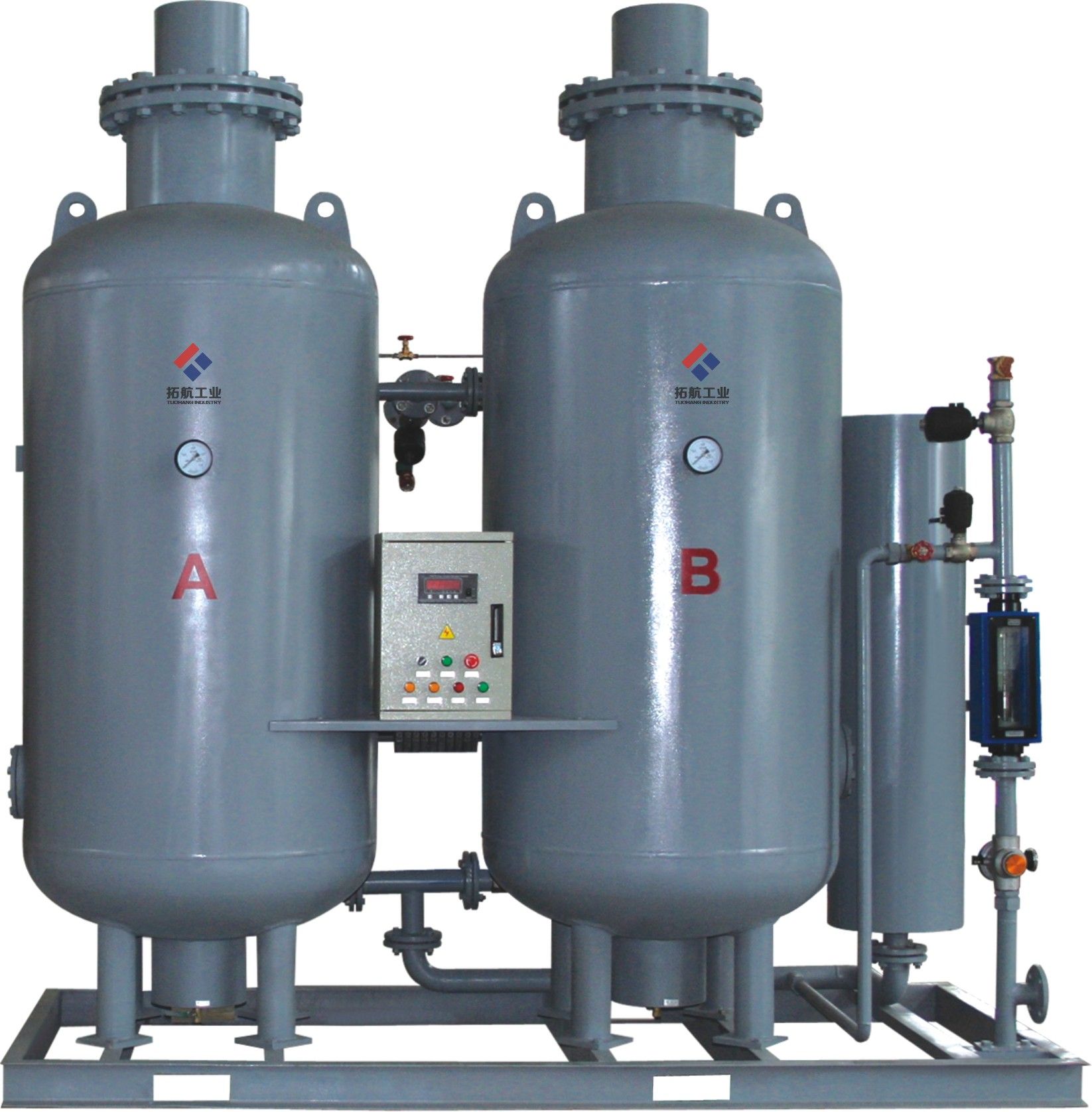

It adopts the technique of two absorption towers,whcih one tower absorbs oxygen and produces nitrogen,while another tower releases the absorbed oxygen and regenerates the carbon molecular sieve.This cyclic-alternating patten can produce high-quality nitrogen continuosly.
Technical Features
Low energy consumption,less cost,strong adaptablity,rapid nitrogen production ande adjustable purity.
Perfect technique process disign and optimal using effect.
Modular strcuture design and saving of floor space.
Convenient operation,stable performace, high atuomation and unattended operation.
Reasonable inner structure,uniform distribution of airflow,reducing of high-speed impacts of the airflow .
Unique protection measure for carbon molecular sieve extends service life of the carbon molecular sieve.
Key parts adopt the famous brand,which is the effective guarantee of the equipment quality.
Automatic venting device with national patented technology ensures quality of produced nitrogen.
It has functions of diagnosis,alarming and automatic troubleshooting for several failures.
Touch-screen display,dew point detection,energy-saving control ,DCS communication,etc.are optional.
Technical parameters
Nitrogen Flow: 5~300Nm³/h
Nitrogen Purity: 95%~99.999%
Absorbent pressure:0.5~1.2MPa
Nitrogen Pressure:0.1~0.7MPa(adjustable)
Nitrogen Dew Point:-40ºC or -60ºC
Model(THN Standard Model)
Output(Nm³/h)
Effective Air Consumption
Air Purification System
Import and Export Caliber(mm)
THN-5C
5
0.39
T-0.5
DN15
DN15
THN-8C
8
0.62
T-1
DN25
DN15
THN-12C
12
0.93
T-1
DN25
DN25
THN-20C
20
1.54
T-1.6
DN25
DN25
THN-30C
30
2.32
T-3
DN32
DN25
THN-40C
40
3.09
T-6
DN40
DN25
THN-60C
60
4.63
T-6
DN40
DN40
THN-80C
80
6.17
T-10
DN50
DN40
THN-100C
100
7.72
T-10
DN50
DN40
THN-120C
120
9.26
T-10
DN50
DN50
THN-140C
140
10.8
T-12
DN50
DN50
THN-160C
160
12.3
T-20
DN65
DN50
THN-180C
180
13.9
T-20
DN65
DN50
THN-200C
200
15.4
T-20
DN65
DN50
THN-250C
250
19.3
T-20
DN65
DN50
THN-300C
300
23.2
T-30
DN80
DN50
THN-350C
350
27.0
T-30
DN80
DN50
THN-400C
400
30.9
T-40
DN100
DN50
THN-450C
450
34.7
T-40
DN100
DN50
THN-500C
500
38.6
T-40
DN100
DN50
THN-550C
550
42.4
T-50
DN100
DN50
THN-600C
600
46.3
T-50
DN100
DN50
THN-650C
650
50.2
T-60
DN125
DN50
THN-700C
700
54.0
T-60
DN125
DN65
