Home Generator Products Thn-120A

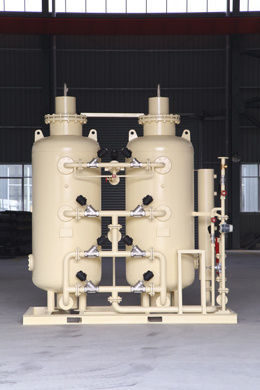

Thn-120A

Thn-120A
Price: US $ 54634/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Working Principle
Under certain pressure,with the use of the difference of diffusion rate between nitrogen and oxygen int air on carbon molecular sieve;oxygen molecule ins absorbed largely by the carbon molecular sieve and nitrogen molecule concentrates in gas-phase in a short time,so as to realize separation of oxygen and nitrogen.
Due to the absorption capacity of carbon molecular sieve for oxygen varies largely from different pressure,reducing the pressure can make the carbon molecular sieve release absorbed oxygen molecular and regenerate the carbon molecular sieve,so as  to realize repeated recycling of it.
It adopts the technique of two absorption towers,whcih one tower absorbs oxygen and produces nitrogen,while another tower releases the absorbed oxygen and regenerates the carbon molecular sieve.This cyclic-alternating  patten can produce high-quality nitrogen continuosly.

Technical Features
Low energy consumption,less cost,strong adaptablity,rapid nitrogen production ande adjustable purity.
Perfect technique process disign and  optimal using effect.
Modular strcuture design and saving of floor space.
Convenient operation,stable performace, high atuomation and unattended operation.
Reasonable inner structure,uniform  distribution of airflow,reducing of high-speed impacts of the airflow .
Unique protection measure for carbon molecular sieve extends service life of the carbon molecular sieve.
Key parts adopt the famous brand,which is the effective guarantee of the equipment quality.
Automatic venting device with national patented  technology ensures quality of produced nitrogen.
It has functions of diagnosis,alarming and automatic  troubleshooting for several failures.
Touch-screen display,dew point detection,energy-saving control   ,DCS communication,etc.are optional.

Technical parameters
Nitrogen Flow: 5~300Nm³/h
Nitrogen Purity: 95%~99.999%
Absorbent pressure:0.5~1.2MPa
Nitrogen Pressure:0.1~0.7MPa(adjustable)
Nitrogen Dew Point:-40ºC or -60ºC


Model(THN Standard Model)Output(Nm³/h)Effective Air ConsumptionAir Purification SystemImport and Export Caliber(mm)
THN-10A100.5T-0.5DN15DN15
THN-20A200.9T-1DN25DN25
THN-30A301.41T-1.6DN25DN25
THN-40A401.88T-3DN32DN25
THN-60A602.82T-3DN32DN40
THN-80A803.76T-6DN40DN40
THN-100A1004.7T-6DN40DN40
THN-120A1205.64T-6DN40DN50
THN-150A1507.05T-10DN50DN50
THN-200A2009.4T-10DN50DN50
THN-300A30014.1T-20DN65DN50
THN-400A40018.8T-20DN65DN50
THN-600A60028.2T-30DN80DN50
THN-800A80037.6T-40DN100DN65
THN-1000A100047.0T-50DN100DN80
THN-1200A120056.4T-60DN125DN80
THN-1500A150070.5T-80DN150DN80
THN-2000A200094.0T-100DN150DN80
THN-2500A2500117.5T-120DN150DN100
Prod Model: THN
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Thn-120A
Gas Source: Air
Zhejiang Tuohang Industrial Equipment Co., Ltd. is located in Fuyang, a beautiful city of Hangzhou. We are professional in  Manufacturing air separation plants, compressed air purification equipment and gas dry equipments etc.

      Our company owns advanced manufacturer equipment, testing equipment, , strict management system. We have already passed ISO 9001. As Tuohang people believe the quality is the soul of the company. And research&development group has been established, the quality is of realiable

        Advanced management experience, strict quality control and internal management system consist of  Tuohang  Spirit...Tuohang people' S goal is getting satisfactory products and making customer satisfied.

  You are welcomed to visit us and any question is appreciated.
