Working Principle
Under certain temperature,the residual oxygen in the low-purity nitrogen and the carbon provided by carbon catalytic generate CO2 after nitridation of C+O2=CO2.After removing the CO2 by PSA technique and further denitrification ,high-purity nitrogen is produced.
Technical Features
There is no H2 in it and it is suitable for use in the occasions which have strict requirement for H2 and O2.
High-efficiency and energy-saving technique makes the energy consumption of the system reduce greatly.

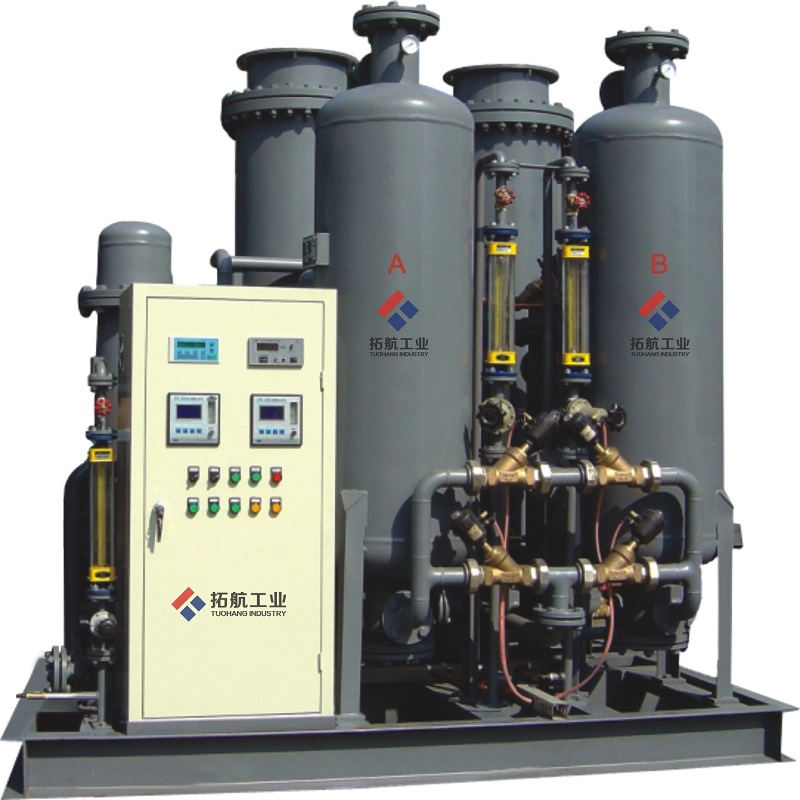

The deaerator adopts two-tower structure and adding and replacing of carbon catalytic agent can be done under non-stopping state.
Automatic venting device with national patented technology ensure s the quality of the produced nitrogen.
The key parts in the system adopt the famous brand,which is the effective guarantee of the equipment quality.
It ha s functions of diagnosis,alarming and automatic troubleshooting for several failures.
Technical Indexes
Nitrogen Output:10~500Nm³ / h
Nitrogen Purity : ≥ 99.9995%
Oxygen Content: ≤ 5 ppm
Carbon Dioxide Content: ≤ 1 ppm
Dew Point: ≤ -60 ºC
Model and Specification | THC-10 | THC-20 | THC-40 | THC-60 | THC-80 | THC-100 | THC-120 | THC-160 | THC-200 | THC-250 | THC-300 | THC-400 |
Rated Nitrogen Output(Nm³/h) | 10 | 20 | 40 | 60 | 80 | 100 | 120 | 160 | 200 | 250 | 300 | 400 |
Rated Air Processing Amount Membrane Separation Nitrogen((Nm³/h) | 11 | 22 | 44 | 66 | 88 | 110 | 132 | 176 | 220 | 275 | 330 | 440 |
Catalyst consumption amount(kg) | 21.6 | 43.2 | 86.4 | 129.6 | 172.8 | 216 | 259.2 | 345.6 | 432 | 540 | 648 | 864 |
Installed Power(KW) | 1.5 | 3 | 6 | 9 | 12 | 15 | 18 | 24 | 30 | 37.5 | 45 | 60 |
Cooling Water(t/h) | 0.65 | 1.4 | 2.5 | 3.2 | 4.8 | 6.3 | 7.5 | 9.6 | 13.4 | 15.8 | 19.2 | 26.0 |
