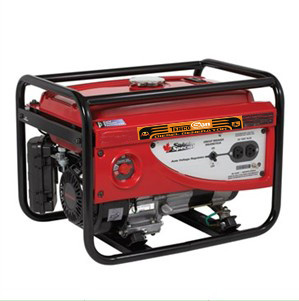

Gasoline Air-cooled Generator Set
-EPA, CE, ISO
-MOQ: 10 sets
-Delivery Time: 25-35 days after receipt of deposit
1)Rated power: 0.65/0.8 /1.0 /2.0 /2.5 /2.7 /5.0 /6.0 /10.0 kVA
2)AVR Regulator
3)Low Oil Pressure Alert System
4)Optional
Fuel: Gasoline, LPG, NG
Panel: European type or American type
Frame: Open or Silent
Accessories: Tyre, handle, etc.
Distinguished Feature
1) Top air-cooled 4-stroke, direct injection gasoline engine
2) AVR Regulator to make voltage in a perfect wave form
3) Low oil alert system to protect generator against damage
Specification for 2.0KW (for more information about others, pls contact us)
|
Model |
TG2500 |
|
Alternator Model |
THF-2S |
|
Frequency |
50 HZ/60 HZ |
|
Max. AC output |
2.2 kw/2.5 kw |
|
Rated AC output |
2.0 kw/2.2 kw |
|
Phase |
Single phase |
|
Insulation |
F |
|
Rated AC voltage |
115/230, 220, 230, |
110, 120, 110/220, 120/240 |
|
Engine Model |
TG168F |
|
Engine Type |
4-stroke OHV 25° single-cylinder with air-cooled |
|
Bore*Stroke |
68mm *54mm |
|
Max power output |
6.5 HP |
|
Fuel Consumption |
395g /kw. h |
|
Ignition System |
Semi dry or oil bath type |
|
Air Cleaner |
Non-contract transistorized ignition |
|
Displacement |
196cc |
|
Compressin ratio |
8.0: 1 |
|
Engine speed |
3000rpm |
3600rpm |
|
Starting system |
Recoil |
|
Fuel tank capacity |
15L |
|
Noise level |
65db(A) |
|
N. W)/G. W |
42/ 46KG |
|
Packing Dimension |
605 x 470 x 460 mm |
TENCOGEN, with a commitment to creating products that improve the quality of people's life, specializes in design and manufacture of gensets including gasoline, diesel, LPG and NG generators ranging from 0.65 KW to 1, 000 KW, mobile light tower, rotary tiller, snow thrower, water pump and accessories.Featured by outstanding capabilities, human-engineering design, extensive purpose and high technology, We would seek to serve your need to our best.Let us help you optimize your next power plan.
