Description:

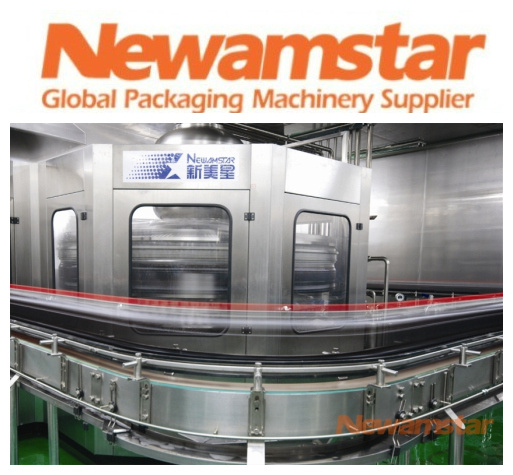

Newamstar has the exclusive matured medium and high speed PET aseptic cold filling technology in China. This technology could be applied widely. For both high acid and low acid product, the whole system could ensure the sterilization efficiency to 5D or 6D. Wet sterilization adopts PAA which is used for sterilization of the bottle and cap after being heated. The aseptic zone is realized through isolator. The machine's inside classification clean room is kept through positive pressure.
Product capacity: 12000BPH-42000BPH
Technical features:
1, Multi rounds sanitizer spraying and cleaning technology to assure the safety of technics.
2, Mechanical type or electronic pulse type nozzle is of stable performance and water saving.
3, Non-contact filling head avoids cross contamination and ensures the safety of microorganism.
4, Betatron flowmeter gives the exact constant volume.
5, The capping machine is of aseptic type, self lubrication ceramics bearing, equipped with servo-motor.
6, The cap sterilizer is of soaking type or liner spraying type.
7, Automatic inspection, control and parameter record system. All the key points of the production line have been taken aseptic monitoring.
The PET aseptic filling system is composed of the following systems:
1, Sanitizer preparation system
2, Empty bottle sterilization unit
3, Cap sterilization unit
4, Sterile material UHT sterilizer
5, Sterile material storage and constant pressure system
6, Sterile water UHT sterilizer
7, Sterile compressed air/nitrogen preparation
8, CIP/SIP System
9, Aseptic isolation system
10, 100 class clean room
11, Aseptic zone COP/SOP
12, Waste air treatment system
13, Liquid sealing system
14, Steam generator
15, Liquid nitrogen injection system
16, Aseptic 5-in-1 filling monoblock
17, Whole line automatic control system
18, Technical parameter monitor and record system
Newamstar is expert in Liquid (Beverage) Packaging Machinery. As a national key high-tech enterprise, it has an area of more than 150, 000 m2 which is the largest R&D and manufacturing base in Asia in this field.
The headquarter is located in Zhangjiagang city, Suzhou, China, within 1-2 hours from Wuxi Shuofang International Airport, Shanghai Hongqiao International Airport or Shanghai Pudong International Airport.
Newamstar always insists on technology innovation, creating more than thirty "China firsts": First PET 3-in-1 water filling line, first PET aseptic filling line, first PET beer filling machine, first 51, 000BPH PET bottle blowing-filling-capping combibloc, etc.
Newamstar covers four major fields: Water, juice, CSD, milk, liquid condiment and personal care products. We serve domestic & international brands: Danone, Otsuka, Wahaha, Dali, Zhongfu, Suntory, President, Yinlu, C'estbon, Ganten, Aoke, Jiajia, etc.
We have exported to more than 70 countries and regions as well as 1, 500 turn-key projects.
We offer technical support to the customer and attach great importance to machine quality and after-sales service.
