Coolant Temperature Sensor has three specifications for option, 1 year quality
Guarantee and good service, large stock for order.

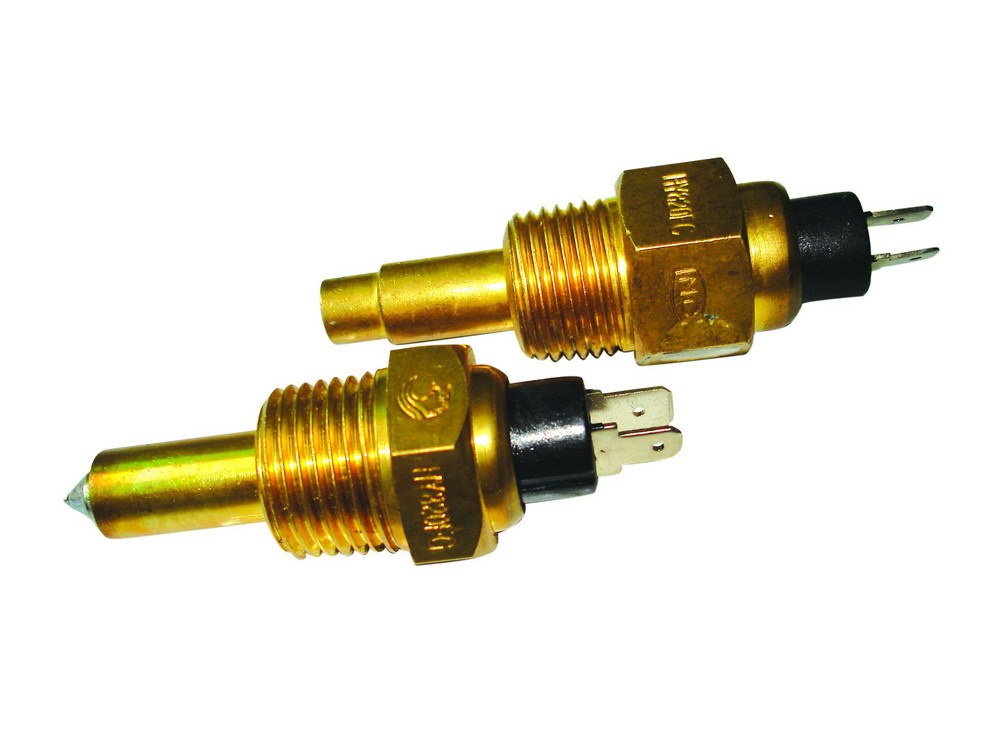

SWDF Coolant Temperature sensor
I. Technical parameters:
1. Dimension: 72× 27mm
2. Weight: 65g
3. Install Screw thread: Z1/2(Optional NPT3/8" and M14× 1.5), Screw thread
Length: 15mm
4. Alarm switch between 96± 3Degree
5. The resist value of the heat resistance change smoothly, no jumping phenomenon
6. Other performance satisfy with QC/TI3-92
II. Analog output temperature and voltage corresponding value:
|
Water Temperature (Degree) |
120 |
100 |
60 |
|
Resistance |
23.0± 1.84 |
39.6± 1.98 |
134± 13.5 |
