Home Generator Products Swan Brand 5kw Electric Start Power Open Portable Diesel Generatorwith Three-Phase (JCED6500E-3)
Swan Brand 5kw Electric Start Power Open Portable Diesel Generatorwith Three-Phase (JCED6500E-3)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |

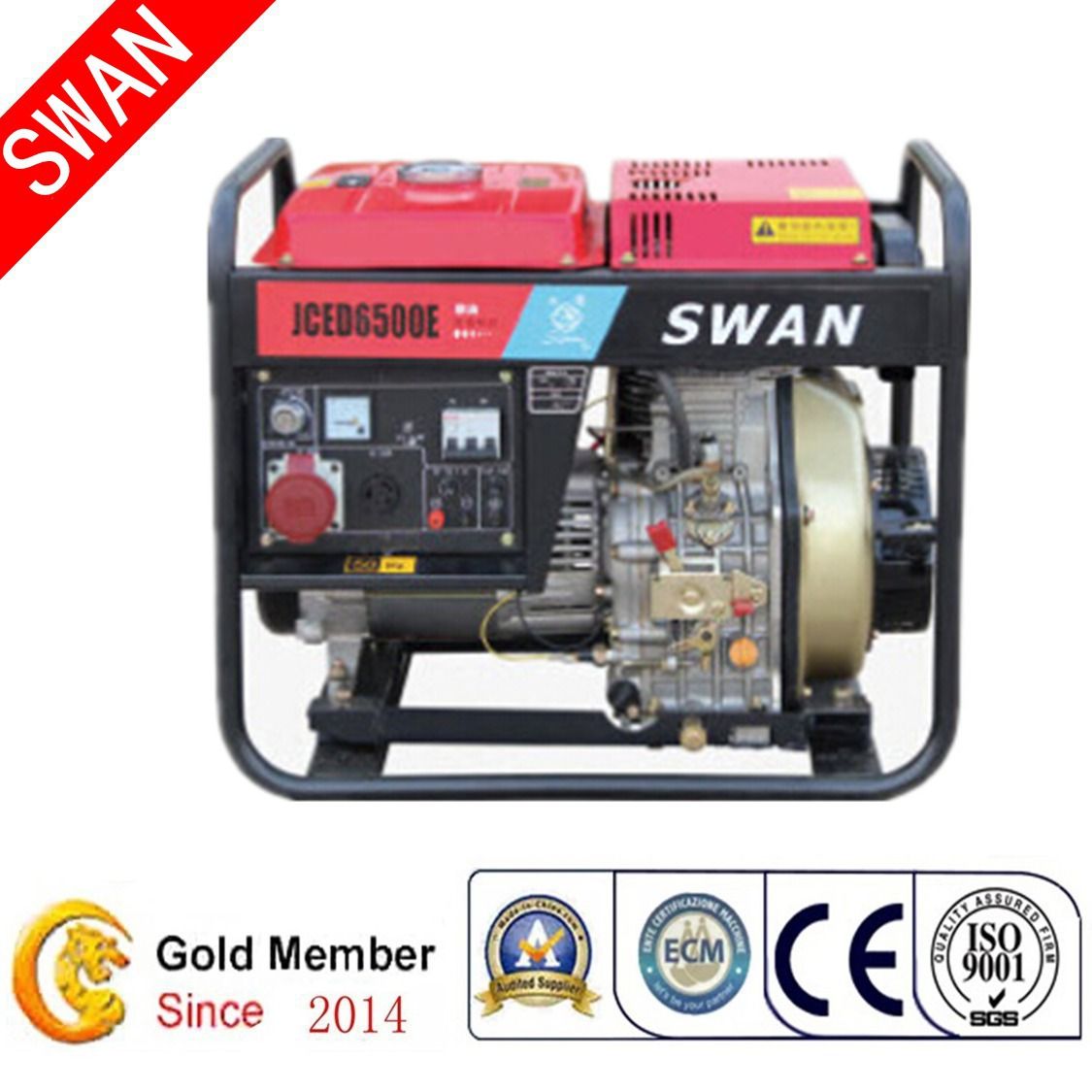

Swan Brand 5kw Electric Start Power Open Portable Diesel Generatorwith Three-Phase (JCED6500E-3)
Just send us your inquiry with what u need, we will highly appreciate it!
The products of Swan brand has 8 series which include diesel engine,gasoline engine,cultivator ,water pumps, Diesel generators and others.
Its features are light weight, small size, big power, reliable performance, and user-friendly.
They are widely used in tractor, small generator, sprinkler, water pumps, boat hanging machine, thresher,and other agricultural machinery and construction machinery. Swan 170 Diesel engine won the national quality silver medal and the title of trustworthy products.
Swan brand 160F,165FA,JC170,JC175,JC75N,JC80N and other products are the first domestic developed, filling the domestic blank.
| Model | JCED6500E-3 |
| Related frequency | 50 | 60 |
| Related output power(KVA) | 4.5 | 5 |
| Max output power(KVA) | 5 | 5.5 |
| Related voltage(V) | 230/400 | 240/416 |
| Related current(A) | 6.5 | 6.9 |
| Related speed(r/min) | 3000 | 6000 |
| Phrase | 3-phrase |
| Power factor(COS) | 0.8lgd |
| Excitation mode | Self-excitation constant pressure(with AVR) |
| Panel form | Ordinary Panel |
| L*M*H Overall diamension(mm) | 945*565*700 |
| Dry weight | 147 |
| Noise level db(A) | 72 |
| Structure form | Mute type |
| Engine type | JC186FAD |
| Engine form | Vertical,single-cyclinder,4-stroke,air-cooled,direct injection |
|
|
|
|
|
|
| Cylinder number Bore*stroke(mm) | 1-86*72 |
| Total flow rate(ml) | 418 |
| Rated power(kw/r/min) | 5.9/3000 | 6.6/3600 |
| lubrication way | Combined presure and Splasing |
| startup model | Electric start |
| Fuel type | Diesel:0#(summer)-10#(winter)-35#(cold) |
| Lubrecating oil type | C class above or SAW10w-30,15w-40 |
| Lubrecating oil capacity(L) | 1.65 |
| Starting motor capacity(V-kw) | 12V 8kw |
| Changing generator capacity(V-A) | 12V 3A |
| Battery capacity(V-ah) | 12V 36AH |
| Set specific-fuel consumption(g/kw.h) | ≤360 |
| Fuel tank capacity(L) | 15 |
| Mission time(hr) | 6.5 |
| Prod Model: |
JCED6500E-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Swan |
| Model: |
Jced6500e-3 |
| Dry Weight: |
147 |
| Structure Form: |
Mute Type |
| Lubrecating Oil Type: |
C Class Above or Saw10W-30,15W-40 |
| Type: |
Self-Starting Diesel Generator |
| Installation Method: |
Portable |
| Stroke: |
Four Stroke |
| Cooling Method: |
Air Cooled |
| Output Type: |
DC |

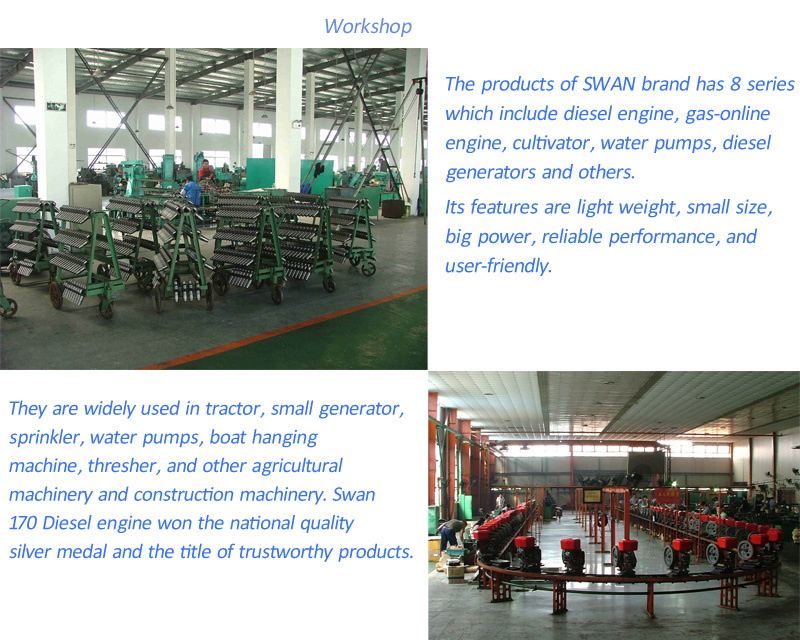

Jintan Diesel Engine Co., Ltd. Was founded in 1952, is one of designated and backbone enterprises which is specialized in the production of single cylinder diesel engine. The main products are 2~32 horsepower single cylinder wind and water-cooled diesel engine what brand are Swan and Chang jin. It possesses the production capacity of annual 500000 units. The company started developing diesel engine in 1969 than is the first company that export small single cylinder of air-cooled diesel in China. It join to Changchai Co., Ltd. In December 1995, then restructuring into private enterprise -Jintan Diesel Engine Co., Ltd in October 2003. The company covers 180000 square meters, and possesses the whole process of the development and production capacity from the design, casting, heat treatment, machining to assembly test on the diesel engine, micro tillage machine, power generation units, water pump unit. It have the strong technical force, advanced process equipment, detection means complete, reliable product quality, and offer prompt and reliable after-sale service.
"Swan" brand is famous trademarks in China, the company won the "jiangsu province contracts and keep promise enterprise", "high-tech enterprise of jiangsu province", " advanced unit in jiangsu province management according to law" and "national farm machinery circulation outstanding contribution unit". It leaded through the ISO9001 and TS16949 international quality system certification in 1996. It has exported and imported more than 18 year since we get import and export enterprise qualification in 1995.
The products of Swan brand has 8 series which include diesel engine, gasoline engine, cultivator, water pumps, Diesel generators and others. Its features are light weight, small size, big power, reliable performance, and user-friendly. They are widely used in tractor, small generator, sprinkler, water pumps, boat hanging machine, thresher, and other agricultural machinery and construction machinery. Swan 170 Diesel engine won the national quality silver medal and the title of trustworthy products. Swan brand 160F, 165FA, JC170, JC175, JC75N, JC80N and other products are the first domestic developed, filling the domestic blank.
Swan brand products enjoy a high reputation at home and abroad markets. They were sold well in China, Southeast Asia, South America, and so on, more than 50 countries and regions. Its sales is always in the lead position in the domestic similar enterprises. Company uphold the "unity, serious" management philosophy, with "quality first, customer first" business purpose, and is willing to cooperate sincerely with domestic and foreign customers, to create a better future.
