| Price: | Negotiable |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |
| Motor * : 5.0HP Series Wound Motor , Sealed |
| Controls : Wireless remote and handle remote control |
| Gear train : All-metal 3-stage planetary |
| Gear Ratio : 1 72.8:1 |
| Clutch (freespooling) : Rotating Ring Gear |
| Drum Diameter/Length : 2.51 "/ 8.8 " ( 64 mm / 224 mm) |
| Fairlead : 4-way roller fairlead |
| Rope : 92 ’ Aircraft-grade Wire, 5 / 16 " diameter ( 28 m, 8.0 mm diam.) |
| Recommended Battery * : 650CCA Minimum for Winching |
| Battery Leads : 2 gauge 72’’ (1.83m) |
| Duty Cy c le : Intermittent |
| Mounting Bolt Pattern: 10 ” x 4.5” ( 25 4mm x 114.3mm ) |
| Winch Dimensions : 22 " L x 6.3 " D x 8.1 H ( 557m m L x 160m m D x 205m m H) |
| Shipping Weight : 81.5 lbs. ( 37 kgs) |
| Packing: Carton 26.4 " L x 12.6 " D x 9.6 H ( 670m m L x 320m m D x 245m m H) |
| * Designed for use with 12V /24V DC battery systems only. No other voltage systems recommended |
| PERFORMANCE DATA | |||
| Line Pull Lbs.(Kgs.) | Line Speed FT./min(M/min.) | Motor Current | Pull by layer layer/Lbs(Kgs.) |
| 0 | 37.2 ( 11.4 ) | 75 | 1/ 9500 ( 4813 ) |
| 2 000 ( 907 ) | 18 ( 5.5 ) | 170 | 2/ 8650 ( 3928 ) |
| 4 000 ( 1814 ) | 13.1 ( 4.1 ) | 225 | 3/ 7920 ( 3595 ) |
| 60 00 ( 2727 ) | 10.2 ( 3.2 ) | 290 | 4/ 7400 ( 3359 ) |
| 8000 | 8.2 ( 2.6 ) | 340 | 5/6940 (3150) |

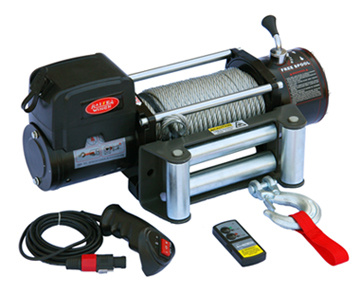

| Prod Model: | HS-V8.0 |
|---|
