I. Summary

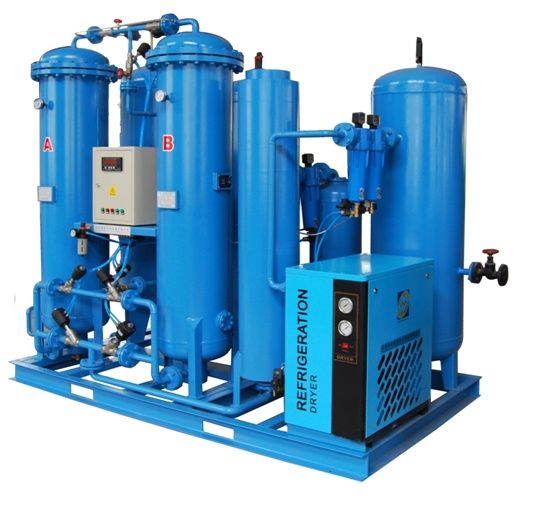

According to the different customers we provide the professional customized oxyen-producing equipment. About your actual using condition we choose the KL-35model for you. The purity is 93%, the oxygen production is 35 Nm3/h (2 cylinders per hour).？
PSA oxygen generation technology can apply in the steel cutting, glass producing, product combustion-supporting, medical oxygen, petrochemical industry, papermaking, ozone producing, aquaculture, aerospace, welding and so on.？
II. How to work
The？raw？air？will？be？removed？its？particle？by？inlet？filter？and？then？be？pressurized？to？about？40Kpa.？
The？air？temperature？from？the？air？blower？is？about？75C,？after？to？be？cooled？by？cooling？water,？it？will？
flows？into？one？of？adsorption？tower？which？filled？with？adsorber.When？the？raw？air？flows？from？the？bottom
tower？to？upper？tower,？the？nitrogen？will？be？adsorbed,oxygenwill？be？concentrated？at？the？top？of？tower？and？be？delivered？out？as？product？gas.
？
？When？the？adsorber？almost？reaches？to？saturation,？in？the？action？of？controller,？the？valves？will？be？switched,？the？raw？air？flows？into？annother？adsorption？tower？to？adsorb.？
？Saturated？adsorption？tower？will？be？decompressurized？to？atmosphere？pressure？and？then？be？vacuumized？to？about？-60Kpa,product？gas？will？be？introduced？into？the？tower？to？pruge？the？adsorption？bed？,？thereby,the？adsorber？will？be？desorbed,？and？？prepare？for？the？next？cycle.？
？The？two？adsorption？towers？adsorb？and？desorb？alternately？to？produce？oxygen？gas？continuously.
？
？Raw？air？shifting？from？one？adsorption？tower？to？another？tower？is？controlled？by？pneumatic？valves,？the？action？process？of？valves？is？realized？by？PLC？controller.？Centralized？control？system？enables？the？whole？system？to？work？automatically.
III.？PSA oxygen generation system related products
IV. Product detail information
V. Company Introduction
KL？company？was？established？in？1997,？dedicated？in？the？promotion？and？design？of？compressed？air？purifying？equipments,？is？the？first？company？to？obtain？Production？Licenses？and？pass？the？examined？in？compressed？air？purifying？business？line.？
The？leading？product？is？refrigerated？air？dryer,？desiccant？air？dryer,？compressed？air？filter,？water？chiller？,？nitrogen？/？oxygen？generator.？(KL？have？the？CE？certificate？and？could？provide？the？ASME？code？dryer？for？customer).
|
Compressed air gage pressure |
0.70 Mpa (inlet pressure) |
|
Oxygen production |
35Nm3/h |
|
Oxygen purity |
93% |
|
Outlet pressure |
0.2Mpa (adjustable, pressurize to 0.3Mpa) |
|
Dew point |
≤-40Celsius |
|
Air consumption |
8.05Nm3/min |
|
Power supply condition |
three phase 380V±10% V/50HZ |
|
Machine cover size |
10500mmx2800mmx3000mm |
|
Weight |
4500KG |
Hangzhou Kelin Aier Qiyuan Equipment Co., Ltd. is established in 1997, dedicated in high quality compressed air dryer, PSA nitrogen generator, PSA oxygen generator, industrial water chiller, refrigerated air dryer, desiccant air dryer and air filter, .
We provide customers with a full range of innovative, problem-solving products to make customers' production more safer, more reliable and more economical. In the meanwhile, we also provide customized solutions to meet customers' different requirements.
Kelin Aier has three independent factories to produce different product. With 17 years' fast development, Kelin Aier has became the leading manufcturer of compressed air dryer treatment in China. We belive quality, innovation and service are important factors that keep us competitive in the global market.
Today, we have established 13 branch offices in major China cities, more than 200 distributors in China. Products have been sold to more than 40 countries.
Please feel free to contact us for further information.
