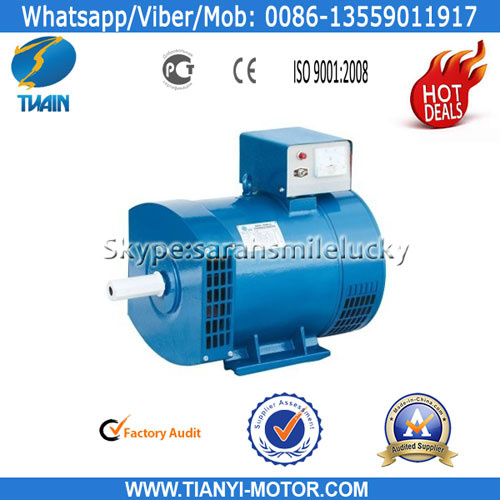

Supply Competitive STC AC Alternator Prices
DESCRIPTION
1. generators are to be used in town, the countryside, work sites, mountains and pasture lands as a electric power source for lighting purpose. It can also be used as a reserved power source for emergent case.
2. The generators are of drip-proof with rotary field type and harmonic excitation system, making use of the star connection with neutral point.
3. The rated line voltage is 400V; Phase voltage is 230V; Frequency is 50Hz; Power factor is 0.8(lag). We can provide the generator with 60Hz and the other voltage according to request.
4. They can be coupled with a prime mover directly or through V-belt, rotating right or reverse continuously at the rated speed.
5. When the revolution slip of prime mover is 3% and the load varies in the range of 0-100%, the power factor is 1.0-0.8, the constant voltage keeps excellent. After a sudden change (increase or decrease) of load, the generators will soon return to their normal working state.
6. The generator can directly start an unloaded squirrel cage induction motor without any starting devices.
OPERATING CONDITIONS
Under the following environment conditions, the generator could run normally and continuously:
1. Altitude: Not exceed 1000m.
2. Cooling air temperature: 258~313K (-15 ~40 ).
3. Relative air humidity: Not exceed 90%.
BENEFITS
1) High starting torque
2) Durable safe and convenient
3) reliable running
4) Energy saving
5) CE, ISO9001 certification
6) Very low power consumption
7)Easy operation and maintenance
OUR ENTERPRISE SPIRIT
The Market is the Core and The Quality is the Life.
We welcome worldwide merchants to join us for common development !
MAIN MARKET
Southeast Asia, Middle East, Africa, Europe, America, etc.
FAQ
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept samples order to check quality.
Q: Is it all right to make customers'own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
Q: How long is your warranty?
A: One year after receive B/L.
Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
TECHNICAL DATA
| Model | Power(KW) | Voltage (V) | Current (A) | Power Factor (cos) | Speed (r.p.m) | Number of poles |
| KVA | kW |
| STC-3 | 3.8 | 3 | 400 | 5.4 | 0.8 | 1500 | 4 |
| STC-5 | 6.3 | 5 | 400 | 9 | 0.8 | 1500 | 4 |
| STC-7.5 | 9.4 | 7.5 | 400 | 13.5 | 0.8 | 1500 | 4 |
| STC-10 | 12.5 | 10 | 400 | 18.1 | 0.8 | 1500 | 4 |
| STC-12 | 15 | 12 | 400 | 21.7 | 0.8 | 1500 | 4 |
| STC-15 | 18.8 | 15 | 400 | 27.1 | 0.8 | 1500 | 4 |
| STC-20 | 25 | 20 | 400 | 36.1 | 0.8 | 1500 | 4 |
| STC-24 | 30 | 24 | 400 | 43.3 | 0.8 | 1500 | 4 |
| STC-30 | 37.5 | 30 | 400 | 54.1 | 0.8 | 1500 | 4 |
| STC-40 | 50 | 40 | 400 | 72.2 | 0.8 | 1500 | 4 |
| STC-50 | 62.5 | 50 | 400 | 90.2 | 0.8 | 1500 | 4 |
NOTE
The voltage and frequency could be made according to your requirement.
If you have any requirements, please contact us.
