Home Generator Products Supersilent 150kVA Generator Powered by Deutz Engine

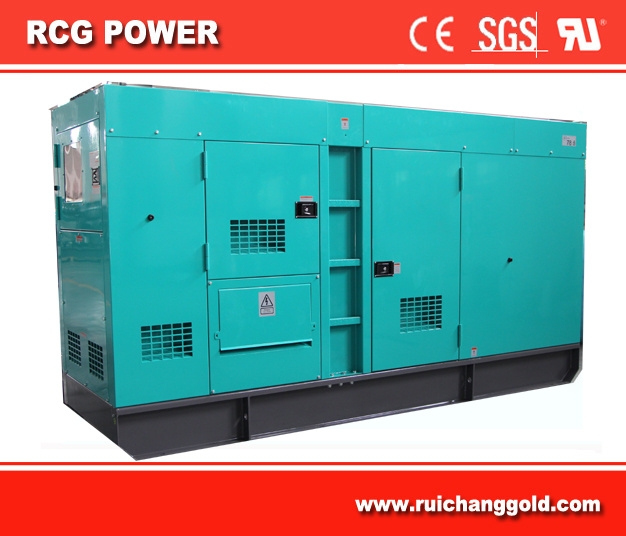

Supersilent 150kVA Generator Powered by Deutz Engine

Supersilent 150kVA Generator Powered by Deutz Engine
Price: US $ 88888/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T

RCGPOWER 1000kva powered by CUMMINS  engine diesel generator sets Specification

All of this specification can be customerized

MODELR-DD150
PRIME POWER (KVA/KW)150/120
STANDBY POWER(KVA/KW)165/132
Rated voltage(V)400/230
Rated speed(rpm)1500
Rated frequency(Hz)50
Power factor0.8
Ambient temperature(ºC)40
Altitude(m)1000
Connection type3 phase  4 wires
ENGINE MANUFACTURER

DEUTZ

ModelBF6M1013EC
Rated Power(kW)146
No. of cylinders & configurationIn-Line 6 cylinders
Method of operation4-stroke
Speed regulationElectronic governor
Starting systemDC 24V Electronic start
Cooling methodClosed-circuit cooling system
Total displacement(L)7.146
Bore×Stroke(mm)108*130
100% Load fuel consumption(L/h)≤32
ALTERNATOR MANUFACTURERSTAMFORD
Number of Phase3
Connection Type3Phase and 4Wires
Number of Bearing1
Power Factor0.8
Protection GradeIP23
Terminal12
Winding/ Pitch100% Copper   2/3 Pitch
Cooling FanCast alloy aluminum
Exciter TypeBrushless, Self-Exciting
Insulation Class, Temperature RiseH/H
Telephone Influence Factor( TIF)TIF <50 / THF<2%
Total Harmonic TGH/THC<1.5% at no load / <5% at load
Voltage Regulation, Steady State≤±1%
Sustained Short-Circuit Current300%(3 in):10s
CONTROL SYSTEMUK DEEP SEA SERIES


Prod Model: R-DD150S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Prime Power: 150kVA/120kw
Standby Power: 165kVA/132kw
Engine Manufacturer: Powered by Deutz Engine
Engine Origin: China
Engine Model: Bf6m1013ec
Alternator Manufacturer: Stamford
Alternator Model: Uci274f
Frequency: 60 Hz / 50 Hz
Optional: Amf/ATS/ Super Silent Canopy
Voltage: 220/380V, 230/400V, 240/415V, 3300-10500V
Type: Basic Diesel Generator
Installation Method: Fixed
Stroke: Four Stroke
Cooling Method: Water Cooling
Output Type: AC Three Phase
Ruichang Gold Generating Equipment (Wuxi) Manufacturing Co., Ltd., established in 1982, is a manufacturer of a wide variety of diesel generator sets and portable power supplies. We are able to offer high quality diesel generator sets with imported engines, trailer-mounted power stations, mobile and container power stations, and even bunker power generator sets.

Our products are suitable for such industries as defense, telecommunications, transportation and natural resources. Additionally, buildings including hospitals, banks, and offices may use our power stations as either a mobile or stationary backup power supply. We accept special orders from clients and are able to meet all kinds of special technical requirements.

As a Sino-foreign joint-venture (Ruichang Gold Co., Ltd. Hong Kong and Wuxi Ruichang Electro Equipment Plant), we aim for the highest quality standards. We are ISO9001 certified and our products are manufactured according to strict internal quality control standards.

Our company principle is "Customers and credibility first" and always provide superior services and free consultation. Whether your inquiries are regarding product selection, systems integration, generator room designs or other technical details we will be happy to assist you with your needs.

We welcome both new and existing customers to come take a look at our current lineup and hope that you will choose our brand of competitively priced quality products. Please contact us for further details and we will promptly answer any questions you may have.
