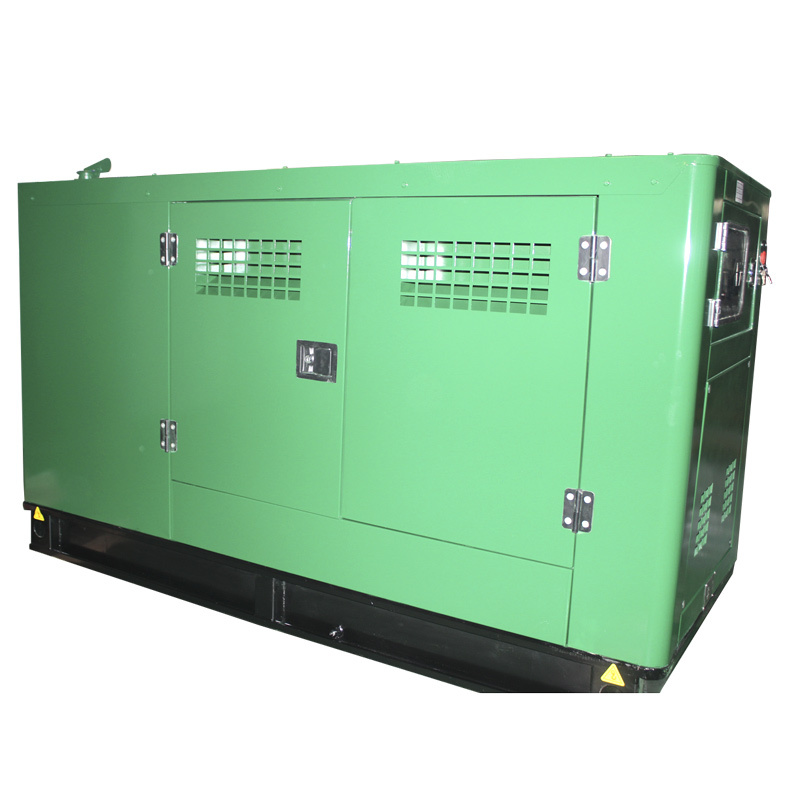

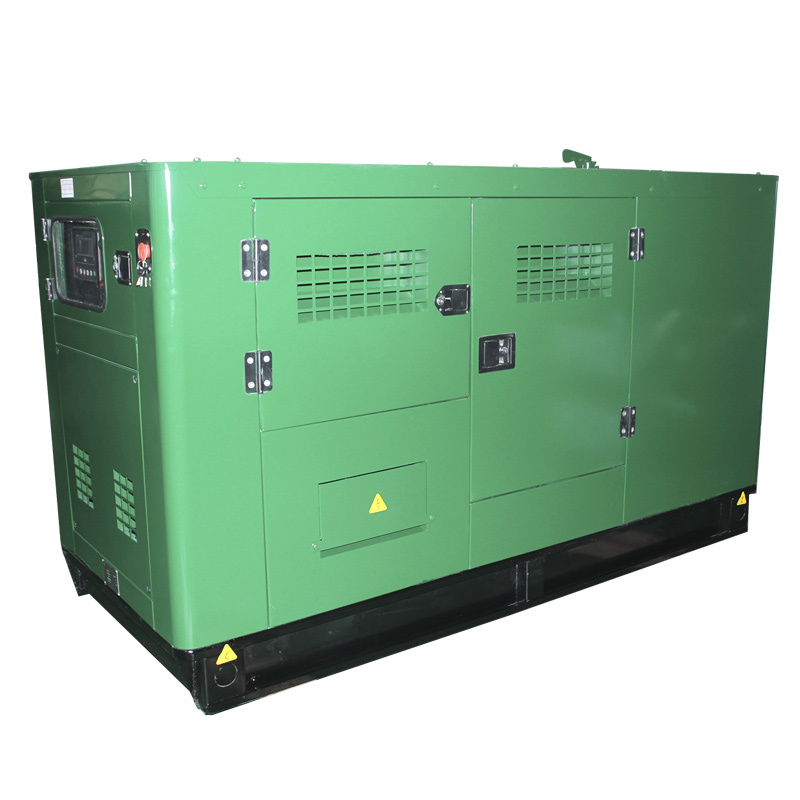

Super Silent Gas Generator with Soundproof Canopy

Super Silent Gas Generator with Soundproof Canopy
Price: Negotiable/Set
Trade Terms: FOB,CFR,EXW
Min Order: 1/Set
Pay Type: L/C,T/T
Super Silent Gas Generator With Soundproof Canopy
Our company is a professional manufacture of Gas Genset, Diesel Genset, LPG/LNG/CNG/Biogas Power Genset.

Description
1. Gas Generator Set
Rated voltage V) 400/230;
Frequency (Hz) 50/60;
Rated speed 1500rpm/1800rpm;
Rated current(A) 900;
Compression ratio: 10.5: 1;
Standard Atmosphere: GB1105, ISO3046

2. Egine Specification
Brand: Cummins,Perkins, MTU, Shangchai or any other you want
Type: 4-Stroke, V-Type, 6-Cylinder
Aspiration: Turbocharged Inter-cooled
Types of Gas: Natural Gas
Oil Consumption(g/kwh): ≤ 1.8

3. Alternator
Brand: Faraday (Engga, Stamford, leroy somer, marathon is available)
Exciting Way: Brushless, AVR
Short-circuit Current: 300%(3In): 10s
THF: <2%
Rated Temperature-rise: 125º F

4. Control System
Brand: Deepsea
Model: DSE7320
Capacity: Over-speed, oil pressure, water temperature, charge failure, the fault display, high water temperature, low oil pressure, start failure, hand start control, distal start control and ect.





project name

Binshi high quality configuration

Ignition system

Altronic(import from US) or Kingband ignition system,included spark plug,ignition coil,high-voltage cable ect.

Speed regulating system

Yunsida,GAC or Kingband electronic governor

Ignition coil bracket

stainless steel bracket

Fire barrier

stainless steel materials,  four layer resistance warfare, gas pipeline dedicated

Zero-pressure valve

Imported from Genmany with original packaging, running stably

Electromagnetic valve

Electrolux, Italy

Filter

Fio,Italy   3μm filter results

Gas pressure meter

50kpa measuring range

Gas intake pipe(onboard)

Stainless steel material

Engine

Cummins series,MTU series perkins and Chinese engine ect.

Water tank

Using domestic famous brand water tank for gas generator re-design and copper material

Anti-explosion valve

Research and design by Binshi self, explosion-proof effect of market surveillance hundred percent results

Mixer

Gas mixer or Venturi mixer imported from US

Undercarriage

Thick steel plate/or box iron

Control module for genset

Deepsea from UK


Parameter  of  1200kw/1500kva  gas genset
Model  Number BS1200-G
Brand  NameBS
Prime  power/Standby  power1200kw(1500kva)/1360KW(1600kva)
Electrical efficency39%
Oil consumption< 1.35g/kw. h
Rated  Speed1000RPM
Engine NumberBS16V190T
Rated  Frequency50/60HZ
Rated  Voltage400V/230V
PhaseAC  3-Phase,   4  wire
Total output volume97.5L
AlternatorEngga/Marathon/Leroysomer
Cylinder 16v(190*215mm)
Starting  SystemDC  24V  electric  motor
Cooling  methodwater  cooler+fan
Size5920*2180*2200mm
Weight17200kg

Prod Model: BCX1600
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty: 1 Year or 3000 Hours
Alternator: Faraday, Leroy Somer, Stamford, Engga Ect.
Controller: Deepsea, Harsen
Ignition System: Altronic
Cooling Method: Water Cooled
Protection Class: IP23
Regulator: AVR
Power Factor: 0.8 (Lag)
Electrical Efficiency: 36.7%
Gas Source: Gas
Power: 30-2000kVA
Certification: SGS
Guangdong Binshi Power Technology Co., Ltd is one of the leading manufacturers of diesel and gas generator sets (generator, genset, diesel generator, power generator, silent generator, generating set, power generation). With years' professional experience in generator set design, manufacturing, sale and service, BS Power has won good reputation both at home and abroad.

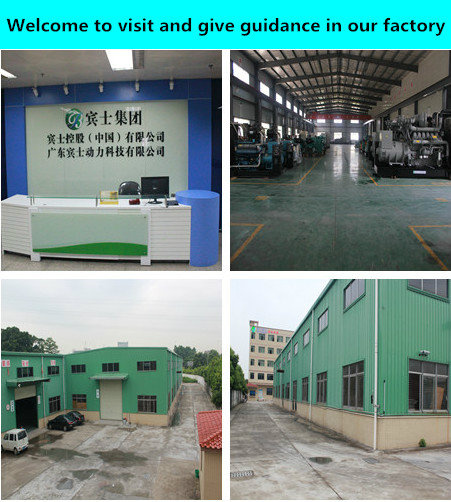

BS Power has built a number of production bases and service centers across the country. Among them, the South China production base and after-sales service center which is located in Dongguan-the famous manufacturing city in the world, covering an area of 8, 000 square meters, owns more than 100 employees, in which 58 percent is engineering technicians, and has numbers of senior engineers. BS Power is people-oriented, creating the best technical management, marketing and planning talents. With abundant resources and innovative research capabilities, BS Power has established a research and development center with famous domestic universities.

In order to improve BS Power's production and technology capability. The second production base, which is located in Hubei Province with the total investment of 7, 000 million yuan, covering an area of 35, 000 square meters, has been put into production.

BS Power has established long-term close partnership with the world famous generator manufactures, such as Cummins in USA, Perkins in UK, MTU and Deutz in Germany, Doosan in Korea, and the genset is equipped with the famous alternator manufactures, like Marathon (USA), Leroy-somer(France) and Engga(UK). Meanwhile, BS Power has achieved ISO9001: 2008 Quality Certification System and ISO14001: 2004 Environmental Management System.

BS Power sincerely wishes to cooperate with distributors of gensets worldwide to expand its high-quality products in your market to reach the win-win goal in the future. Information about BS Power(manufacturer), products will be offered on your request.
